Den-Sin C-250E - Trigger Gun Assembly; Repair Kit Trigger Gun

5. Spare Parts Request Form
C-250E R14 Page 33

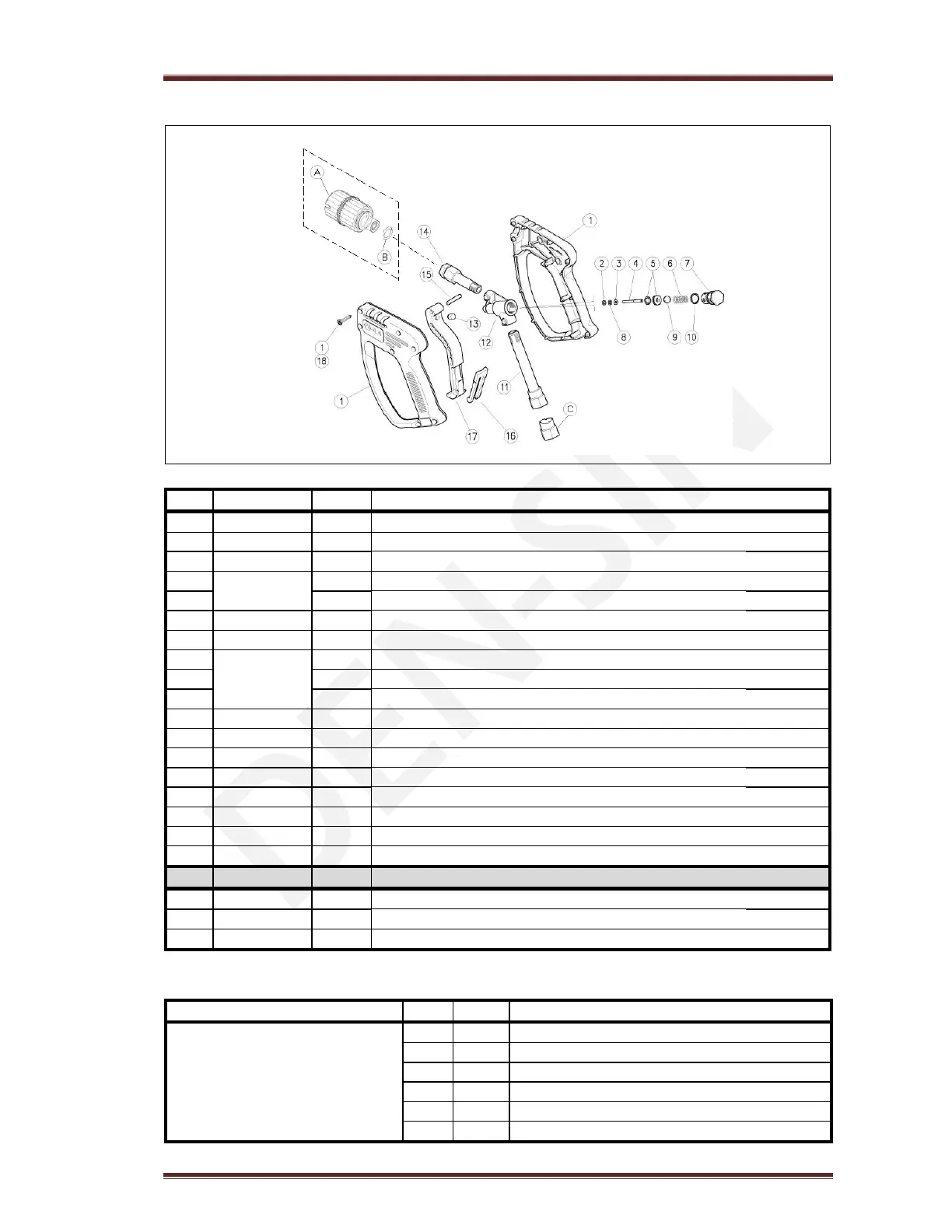

Trigger gun assembly
Trigger gun assembly spare-parts list
Pos:
Part no.:
Qty.:
Description:
1
700551260
1
Gun Casing
2
Kit G
1
Back Up Ring
3
700551262
1
Washer
4
Kit G
1
Piston, Stainless Steel
5
1
O
-
Ring +Seat
6
700551265
1
Spring, Stainless Steel
7
700551266
1
Spring, Plug
8
Kit G
1
O
-
Ring, Ø2.62x2.84
9
1
Ball, Stainless Steel
10
1
O
-
Ring, Ø1.5x10
11
700551270
1
Back tube
12
700551271
1
Gun Housing
13
700551272
1
Stop Pin
14
700551273
1
Front tube
15
700551274
1
Parallel pin
16
700551275
1
Safety Latch, Red Color
17
700551276
1
Trigger
18
700551277
7
Tapping Screw
1
-
18
700551257
1
Trigger G
un
C
omplete
A
700540918
1
COUPLING TRIGGER GUN
B
700540314
1
D
OWTY SEAL
¼
”
C
700550063
1
SWIVEL 3/8
”
Repair Kit Trigger Gun
Part no.:/ Kit description
Pos:
Qty.:
Individual components Part no.:
Kit G - 700551278
(Trigger Gun Repair Kit)
2
1
Back Up Ring
4
1
Piston, Stainless Steel
5
1
O
-
Ring +Seat
8
1
O
-
Ring, Ø2.62x2.84
9
1
Ball, Stainless Steel
10
1
O
-
Ring, Ø1.5x10
