IMPORTANT

Your Denar

Mark II Articulator and Facebow/Earbow are precision instruments man-

ufactured to precise tolerances and designed to give you years of troublefree service.

Like all precision instruments they must be handled carefully to avoid damage. A

thorough study of the information contained in this instruction manual will insure you

of the benefits which these instruments offer.

DO NOT ADJUST the factory adjustment screws illustrated in figure 2A. They are for

factory use only. Adjustment of these screws in the field can alter the instrument’s

operation and may require factory repair.

Also the microadjustable adjustment lockscrews illustrated in figure 2B are used to

calibrate the centric relation position of your Mark II articulator to tolerances of plus

or minus one thousandths of an inch from the factory reference position. Adjustment

of these screws can alter the precise factory alignment of your articulator. Do not

modify the setting of these adjustment screws until after you have read this instruc-

tion manual and thoroughly understand the function of these adjustment screws as

explained in Appendix D. These microadjustment screws should only be used in con-

junction with a Denar

Field Inspection Gage to calibrate your articulator.

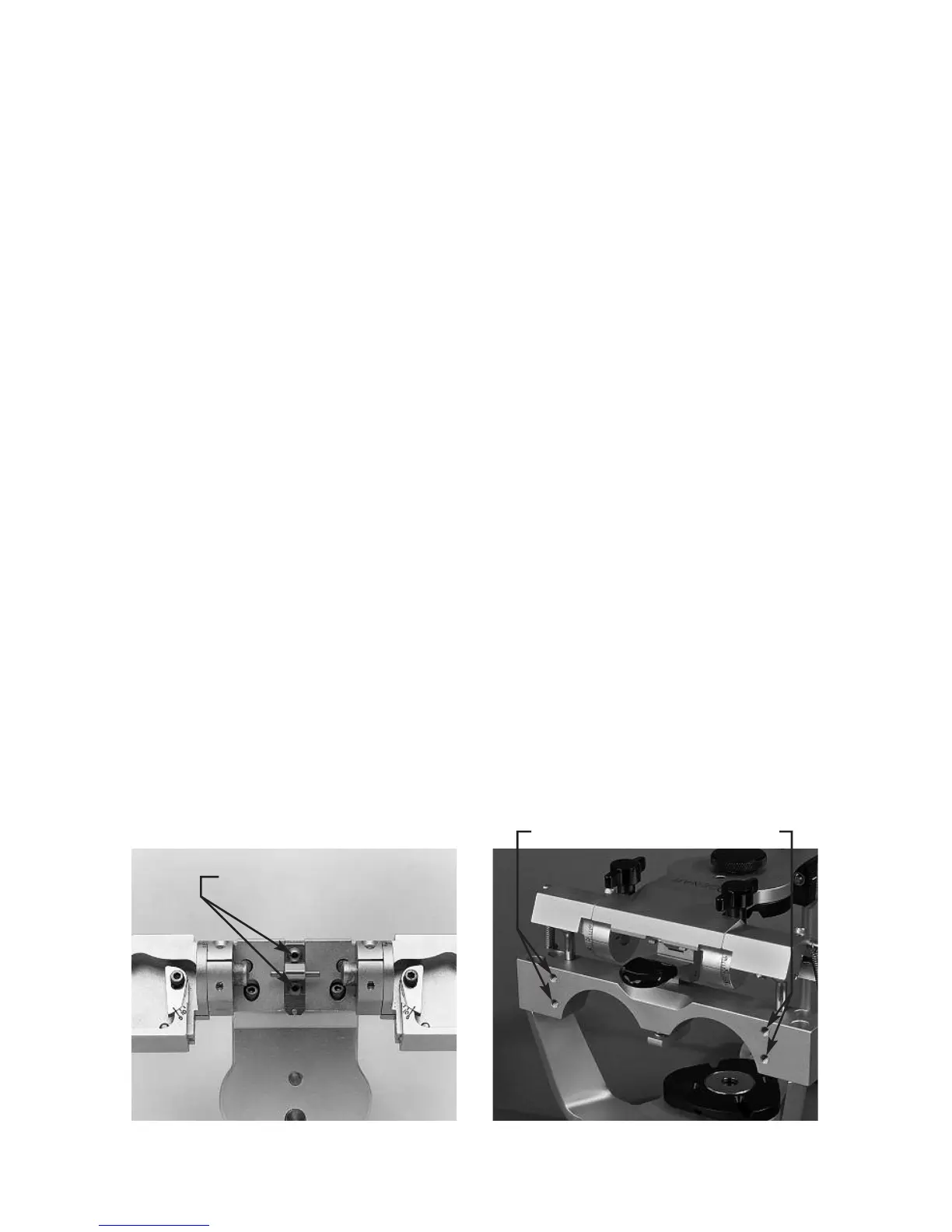

fig. 2A

fig. 2B

Factory Adjustments

Microadjustment Screws
