Assembly CAIRplus
30 PR-2009-0096-GB • Subject to modifications • R8-10/2015
• Before joining the sections for final assembly position them as close to one another
as possible.
• Use the unit base frame only to pull the sections together.
• If necessary, underlay round material to simplify pulling the sections together.
• Use the tensioning belts to pull together units without a base frame. Secure the belts
on the unit profiles at the bottom or roof section.
• Screw the outer joint connections together.
• Do not use partition joint connectors to pull the units together.
• Use screws M8x30.
Fig. 5-15: Screw the base frame to the
connectors
• Screw the outer joint connections together.
Fig. 5-16: External view
ATTENTION
Risk of damage to the unit!
• Do not attach tensioning belts/hoisting devices to heat exchanger connections,
condensate drains and door handles. Do not use the components to pull or push
the equipment!

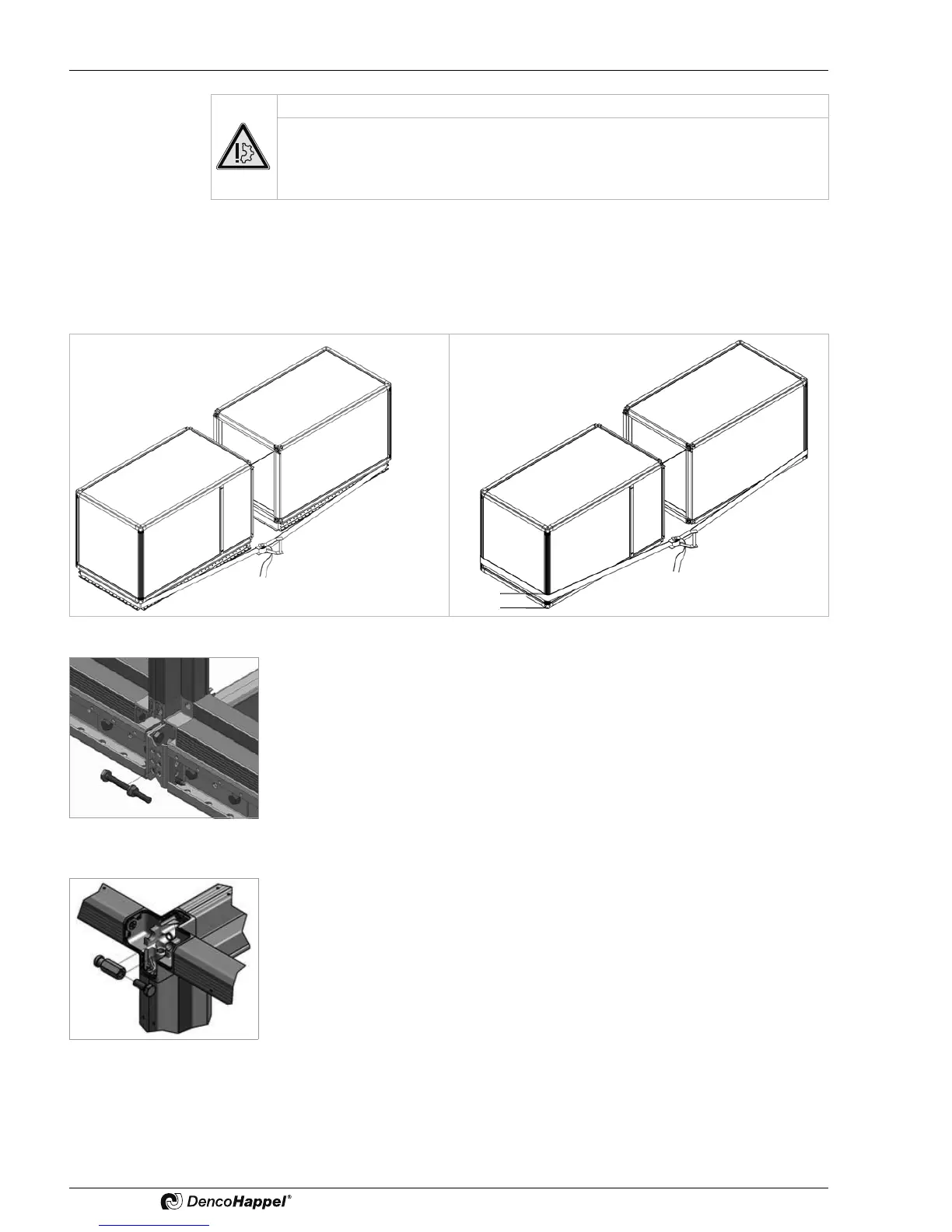

Fig. 5-13: Unit with base frame Fig. 5-14: Unit without base frame
