5.2.5 Installing inclined/bossed roof (CAIRplus SX)
• Secure the separately supplied joint strip.

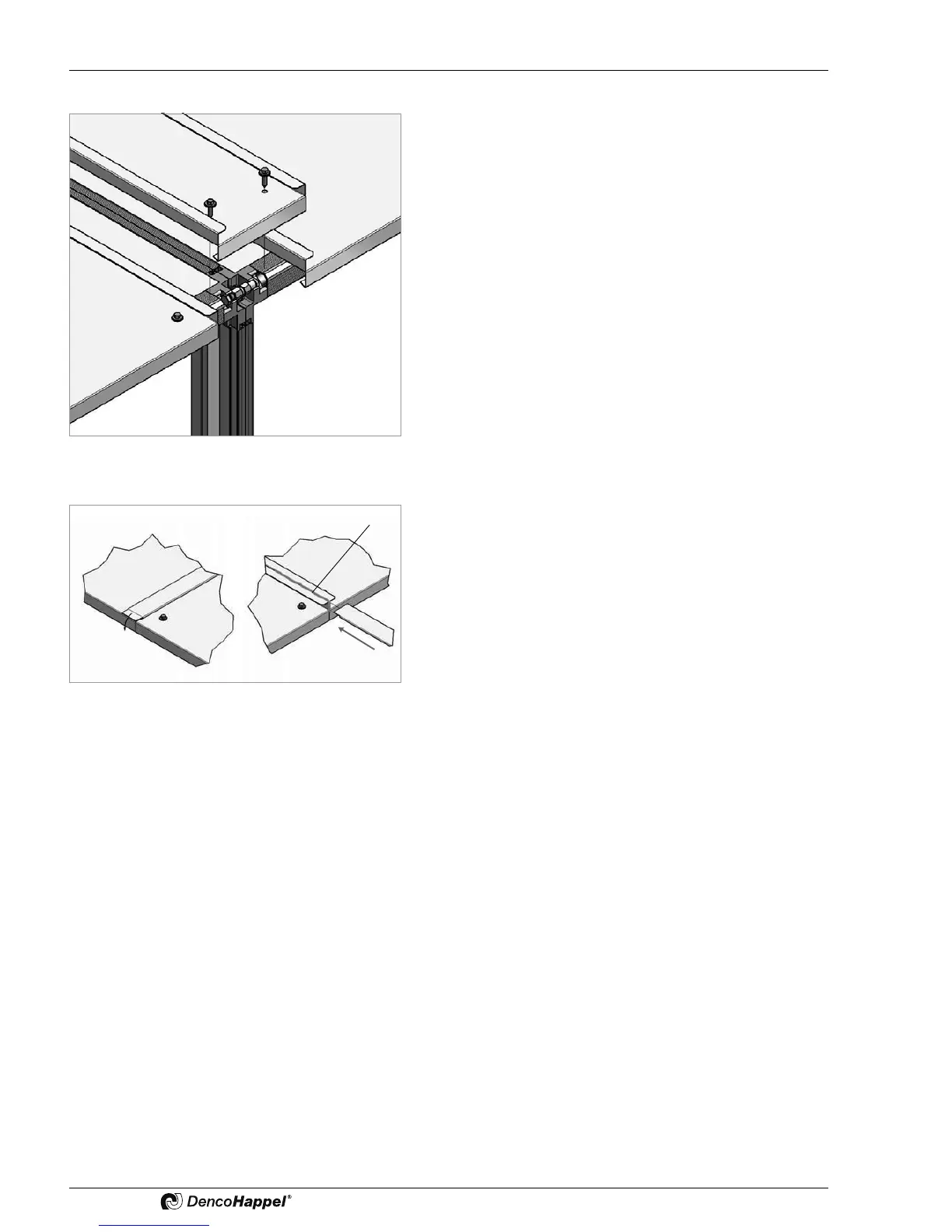

Fig. 5-26: Installing joint strip
Single units 064.xxx to 160.xxx and side-by-side units 064.xxx to 096.xxx
• Use the supplied sealant to caulk the roof panel seams (1).
• Slide the separately provided joint strips (2) over the seams.
• Manually crimp down the overhanging end (3) at 90°.
Fig. 5-27: Single units 064.xxx to 160.xxx
and side-by-side units 064.xxx to 096.xxx
1
3
2
