DAEnetIP2 v2 User Manual
21 Apr 2020
11.2. Connect DAEnetIP2 v2 to router
1. Do all the steps from point 11.1
2. Adjust the network parameters from Setup page:
2.1. IP - must be in same network as your router. (For example if router IP is 192.168.1.1,
DAEnetIP2 v2 IP may be 192.168.1.2)
2.2. Mask
2.3. Gateway - usually this is the IP of your router
3. Click submit and wait about 5 seconds
4. Power off the device
5. Now you may disconnect the UTP crossover cable from the DAEnetIP2 v2 and your
computer
6. Connect the DAEnetIP2 v2 module and the network router with UTP straight cable.
7. Adjust the IP of your computer to be again in the router network
8. Open the web browser and enter the new IP of the module.

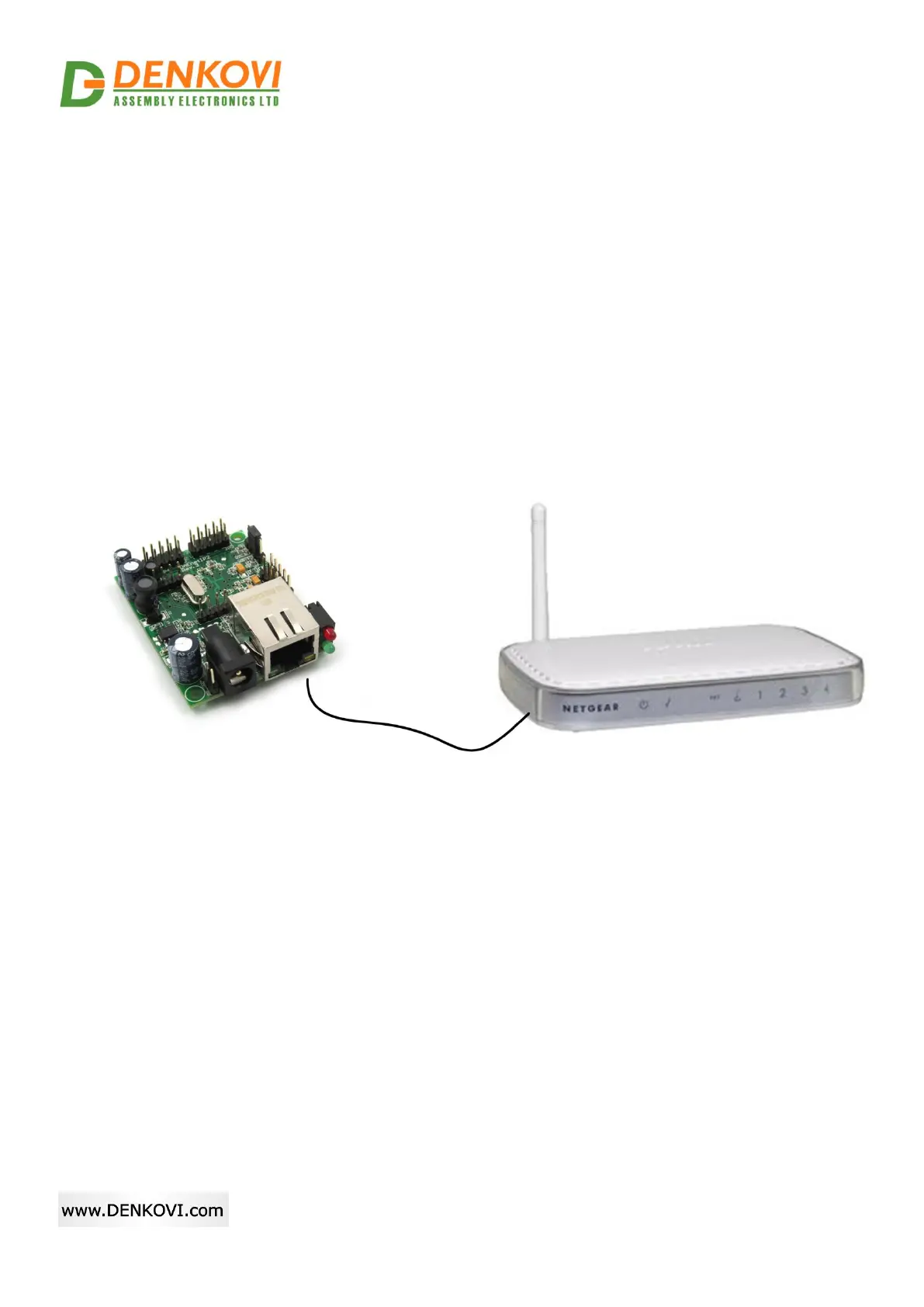

Figure 11.2. DAEnetIP2 v2 connected to router
