DAEnetIP2 v2 User Manual
21 Apr 2020
12. Appendix 3. Install and power on DAEnetIP2 v2 + denkovi relay
board (kit)
DAEnetIP2 v2 can be used successfully in combination with relay boards. Bellow are given
instructions how to connect and power on kits (DAEnetIP2 v2 + cable + relay board). You can
view the kits with DAEnetIP2 v2 www.denkovi.com. The steps (instructions) are valid for only for
kits with DAEnetIP2 v2 + cable + relay board from Denkovi Assembly Electronics LTD without
matter how many relays is the kit.
1. Connect DAEnetIP2 v2 UTP crossover cable (if it will be connected to computer) or UTP
stright-through (if it will be connected to router)

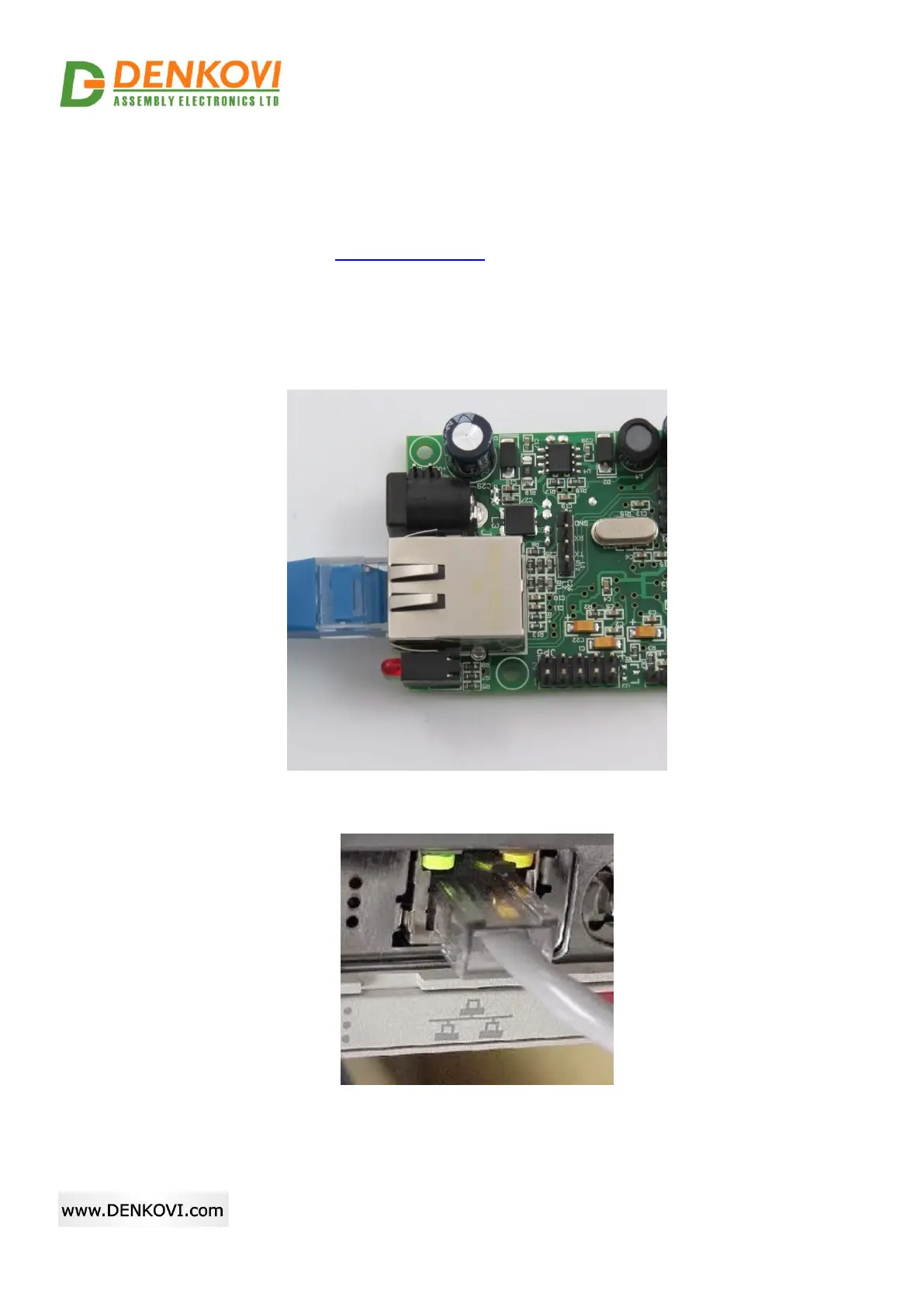

Figure 12.1. Connecting UTP cable to DAEnetIP2 v2
2. Connect the other end of the cable to your computer LAN card or router
Figure 12.2. Connecting UTP cable to Computer
