DAEnetIP2 v2 User Manual
21 Apr 2020
4.2. Steps for loading default settings
In case the access of the module is lost, factory (default settings) may be applied and the
module parameters will be returned back as those in point 4.1 from the current document.

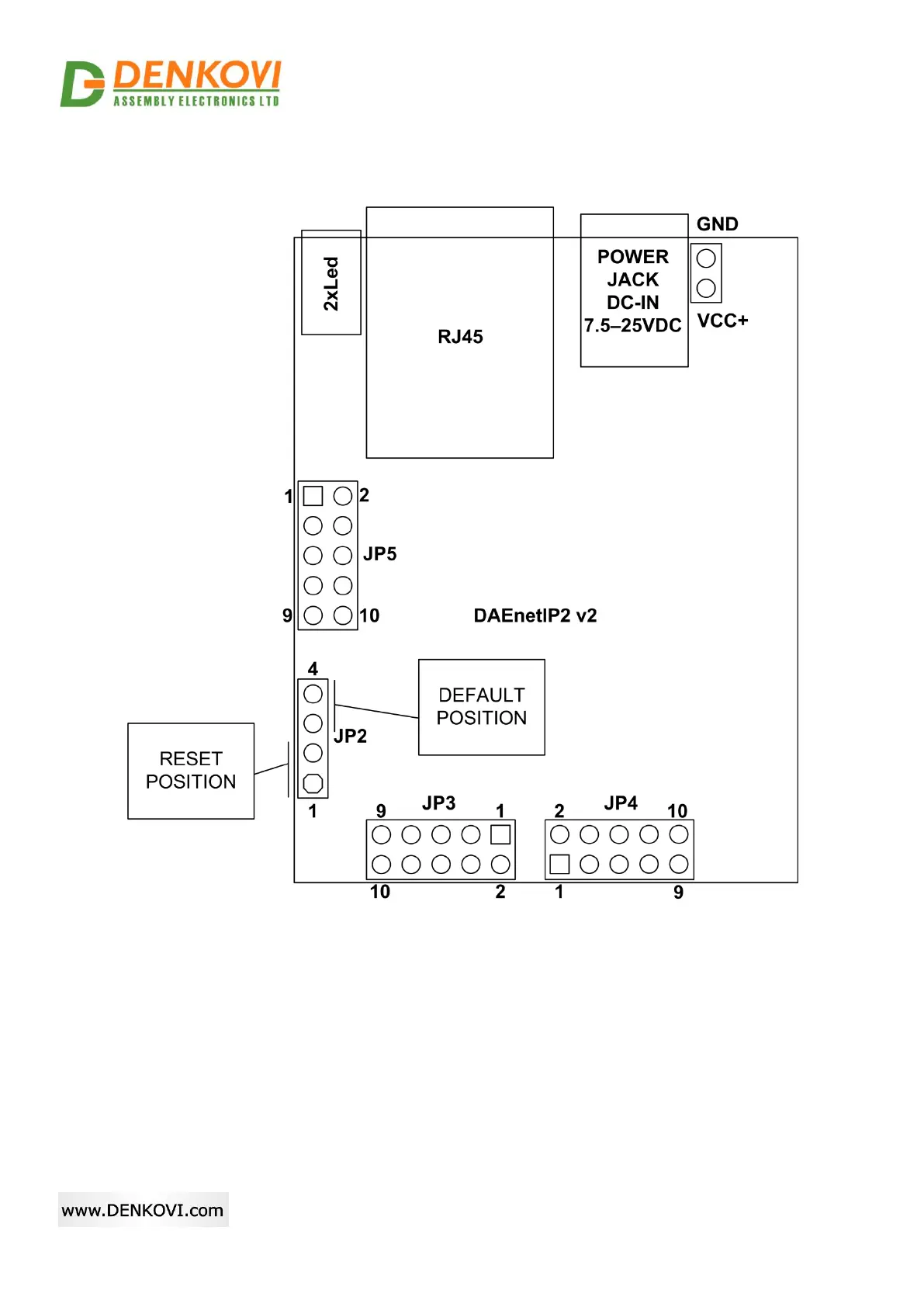

Figure 4.1. Loading default settings
1. Turn off the power supply of the device;
2. Move the jumper to the DEFAULT position (between pin 3 and 4 of JP2);
3. Turn on the power supply of the device;
4. Wait until the status led become ON (approximately 10 sec);
5. Remove the jumper from the DEFAULT position;
6. Turn off the power supply of the device;
7. Move back the jumper to the middle position (between pin 2 and 3 of JP2);
The module is configured with default settings.
