Dennis FT 430 - Technical Data

4
FT Range SP20001_REV_2
Contents
Page
Product Application Matrix .................................................................................................................................................... 2
Declaration of Conformity ..................................................................................................................................................... 3
Serial Numbers ..................................................................................................................................................................... 3
Introduction ........................................................................................................................................................................... 3
Technical Data ...................................................................................................................................................................... 4
Machine Description ............................................................................................................................................................. 5
Important Safety Instructions ................................................................................................................................................ 6
Operating Instructions ..................................................................................................................................................... 7 - 8
General Adjustments ......................................................................................................................................................9 - 11
Removing The Cassette Unit .............................................................................................................................................. 12
Routine Maintenance................................................................................................................................................... 13 - 14
General Lubrication ..................................................................................................................................................... 15 - 16
Storage ............................................................................................................................................................................... 16
Guide to Replacement Parts .............................................................................................................................................. 16
Guide To Cassette Use ....................................................................................................................................................... 17
Parts Listings ............................................................................................................................................................... 18 - 38
Notes .................................................................................................................................................................................. 39

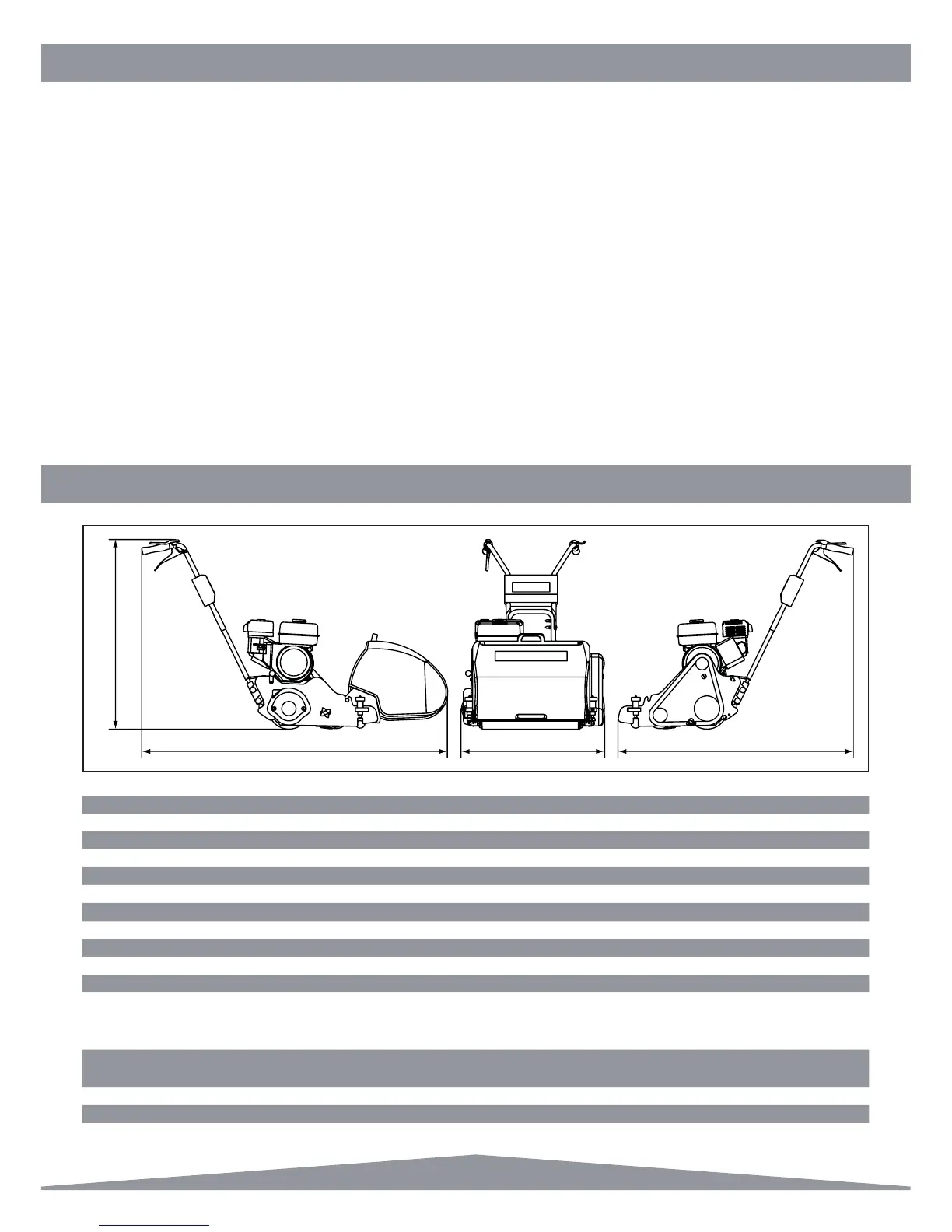

Technical Data
Model FT430 FT510 FT610
A - Width (mm) 675 750 840
B - Length with Grassbox (mm) 1592 1592 1592
C - Length without Grassbox (mm) 1229 1229 1229
D - Height (mm) 971 971 971
Weight (Kg) 100 110 120
Cutting Width (mm) 430 510 610
Cylinder 9 or 5 blade
Height of Cut (mm) 2 - 25
Cut Performance (9 Blade) 180 cuts/m (168 cuts/yd)
Engine Honda GX120 Honda GX160 Honda GX160
Drive System
Brake band for roller and
dog drive to disengage
cutter for transport
Final Drive
Poly “V” high performance
belts under constant tension
Hand Arm Vibration (m/sec
2
) 2.7 2.5 2.8
Measured Sound Power Level dB(A) LWA 91 95 95
Guaranteed Sound Power Level dB(A) LWA 94 98 98
ABC
D
