Dennis FT 430 - Parts Listings

18
FT Range SP20001_REV_2
Item No. Part No. Description Quantity
1 229492 Retaining Plate Assy 2
2 230004 Support Bracket 1
3 230006 Support Plate Engine 1
4 800020 FT L.H. Side Plate Assembly 1
5 800021 FT R.H. Side Plate Assy 1
6 J20222 Cork Buffer 1
7 800104 Stop Pin Assy 1
8 J17235 Front Cross Bar (17”) 1
8 J20235 Front Cross Bar (20”) 1
8 J24235 Front Cross Bar (24”) 1
9 J17236 Lower Unit Tie Bar (17”) 1
9 J20236 Lower Unit Tie Bar (20”) 1
9 J24236 Lower Unit Tie Bar (24”) 1
10 J20263 Front Stud Spacer 1
11 J20292 Collar Front Tie Bar 2
12 J20297 Serial Number Plate 1
13 J209053 Support Plate 1
14 J209059 Gate 1
15 J179215 Engine Bed (17”) 1
15 J209215 Engine Bed (20”) 1
15 J249215 Engine Bed (24”) 1
16 SP01009 Hex Set Screw M8 x 20 2
17 SP01011 Hex Set Screw 3/8” UNF x 3/4” 2
18 SP01053 Hex Set Screw 1/2” UNF x 1” 10
19 SP01055 Hex Taptite Screw M6 x 16 2
20 SP02006 Nut M8 Nyloc 7
21 SP03015 Washer M8 Form C 8
22 SP03023 Washer 1/2” Toothed 8
23 SP05001 Rivet 4.8 x 10 2
24 228094 End Tip 5/16” 1
25 J17251 Rear Scraper Bar Assy (17”) 1
25 J20251 Rear Scraper Bar Assy (20”) 1
25 J24251 Rear Scraper Bar Assy (24”) 1
26 J209056 Hand Brake Lever 1
27 J209057 Brake 1
28 SP01014 Hex Set Screw 3/8” UNF x 2 3/4” 1

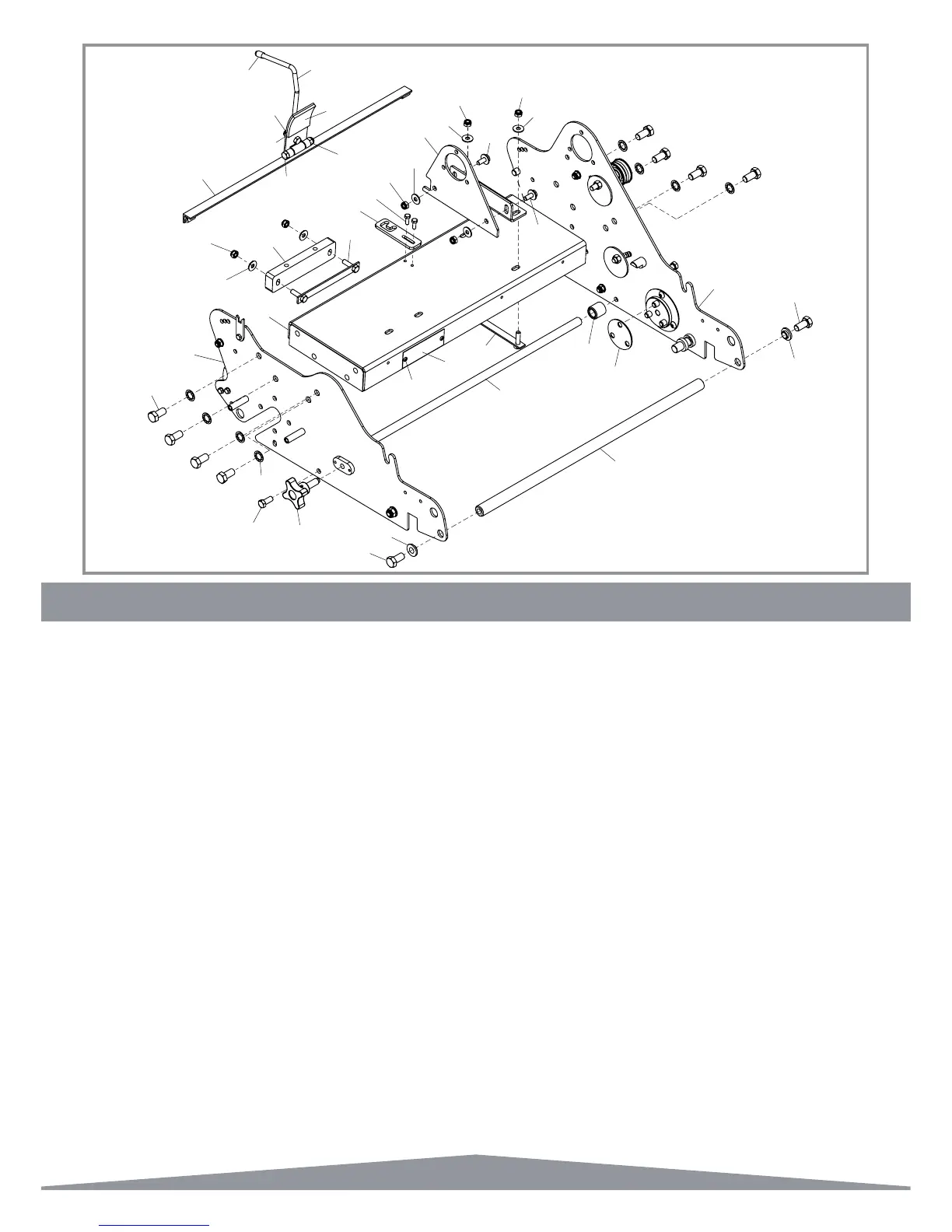

1.01 Chassis - Main Assembly
20
20
19
14
3
1
8
6
10
9
1
12
23
18
11
17
22
18
5
15
21
18
4
21
16
16
21
20
20
21
13
11
20
28
29
27
26
24
30
25
31
Item No. Part No. Description Quantity
29 SP02018 Nut 3/8” UNF Nyloc 1
30 SP03008 Washer M8 Form A 1
31 800104 Cassette Retaining Screw 1
