Dennis FT 430 - Page 19

19
FT Range SP20001_REV_2

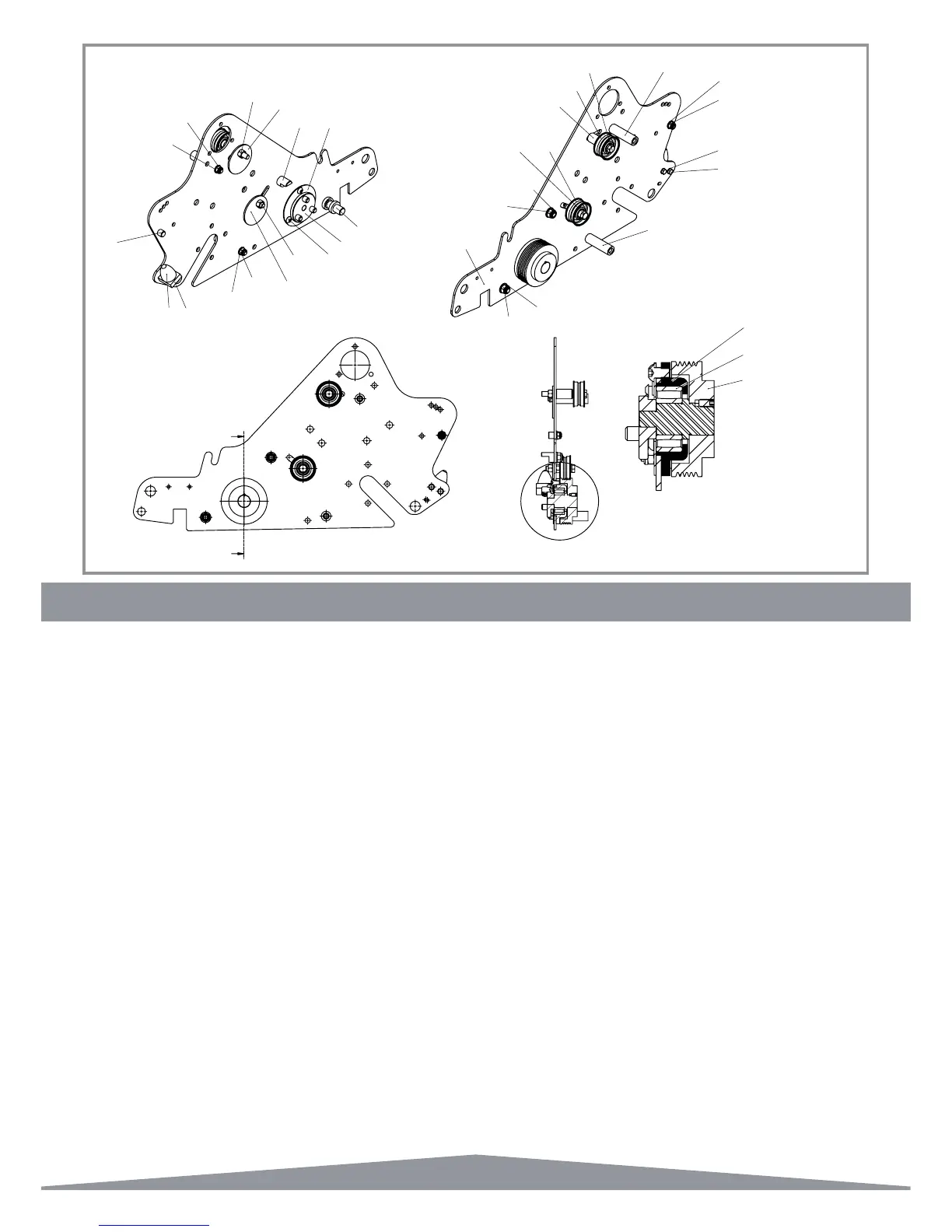

1.02 Chassis - LH Side Plate
Item No. Part No. Description Quantity
1 J209253 Side Plate LH 1
2 229741 Buffer Block 1
3 229742 Buffer 1
4 J209072 Chain Case Stud 2
5 J20216 Unit Limiting Stud 1
6 J20238 Shoulded Gearing Stud 1
7 J20008 Back Plate With Hole 1
8 J20221 Male Coupling 1
9 J209203 Cassette Driven Pulley / Shaft 1
10 J209206 Cassette Drive Bearing Housing 1
11 J20255 Bearing 5205 - 3205 2RS 1
12 J20023 Unit Limiting Stud 1
13 SP03008 Washer M8 Form A 3
14 J209043 Tensioner Back Plate 2
15 J209047 Tensioner Pulley 2
16 J209049 Spacer Roller Tensioner 1
17 SP01008 Hex Set Screw M6 x 16 2
18 SP01012 Button Head M8 x 12 3
19 SP02006 Nut M8 Nyloc 4
20 SP03003 Washer M6 Toothed 2
21 SP01013 Hex Set Screw 3/8” UNF x 2” 1
22 SP02015 Nut 3/8” UNF 3
23 SP01057 Hex Set Screw 3/8” UNF x 3 1/4” 1
24 SP02008 Nut M10 Nyloc 2
25 SP03011 Washer M10 Form A 2
Not Shown
- J209003 3 Groove Drive Belt (Rear Roller) 1
- J209005 5 Groove Drive Belt (Cylinder) 1
