FT Range SP20001_REV_2
Machine Description
Manufactured with a 17” (43cm) 20” (51cm) or 24” (61cm) cutting width this mower is powered by a 5.5 h.p. air cooled
single cylinder four stroke petrol engine (3.5hp FT430) The rear roller is powered via a slipping brake band clutch
mechanism that allows infi nite speed control independent of the cutter unit. The drive to the roller is engaged by a lever
situated on the right handlebar.
In the design of the machine, special attention has been given to the importance of easy service and maintenance with
the construction based on a sectional assembly system. These are the Engine Unit, the Cassette Unit, the Rear Roller
Unit, and the Front Roller Unit, each of which can be readily removed individually from the main Frame Chassis Unit.
The interchangeable cassette system allows a variety of cassettes to be used for varying applications.

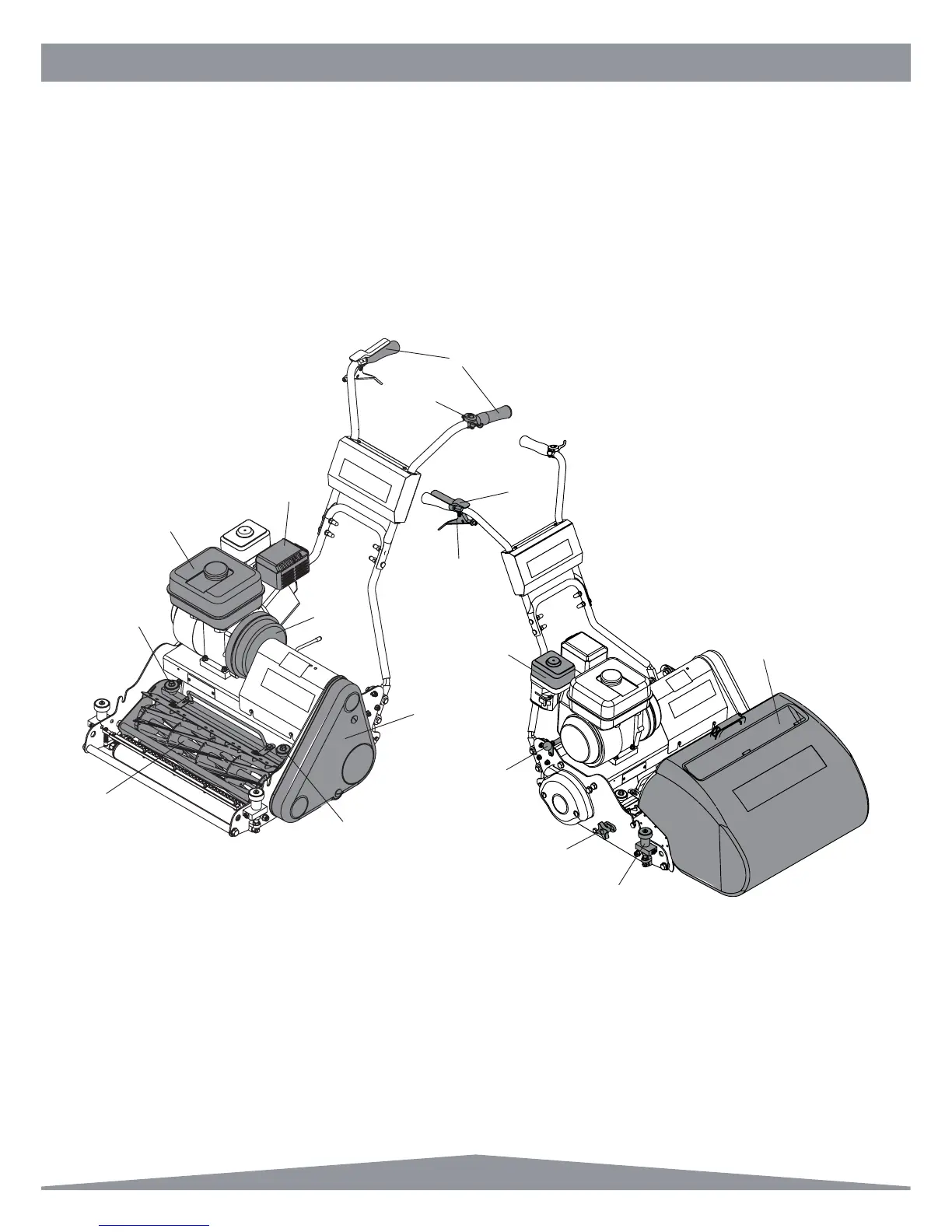

1. Cassette 9. Grassbox
2. Bottom Blade Adjuster Knob 10. Cutting Height Adjustment Knob
3. Belt Guard 11. Cassette Retaining Pin Hand Wheel
4. Throttle Lever 12. Cassette Disengage Knob
5. Operating Handle 13. Air Filter
6. Exhaust 14. Driving Clutch Lever
7. Fuel Tank 15. Deadmans Handle
8. Centrifugal Clutch Drum
1
2
3
8
4
5
6
7
2
9
15
10
11
12
13
14
