Denon AVC-A1H User Manual

Connecting 9.1-channel speakers
o

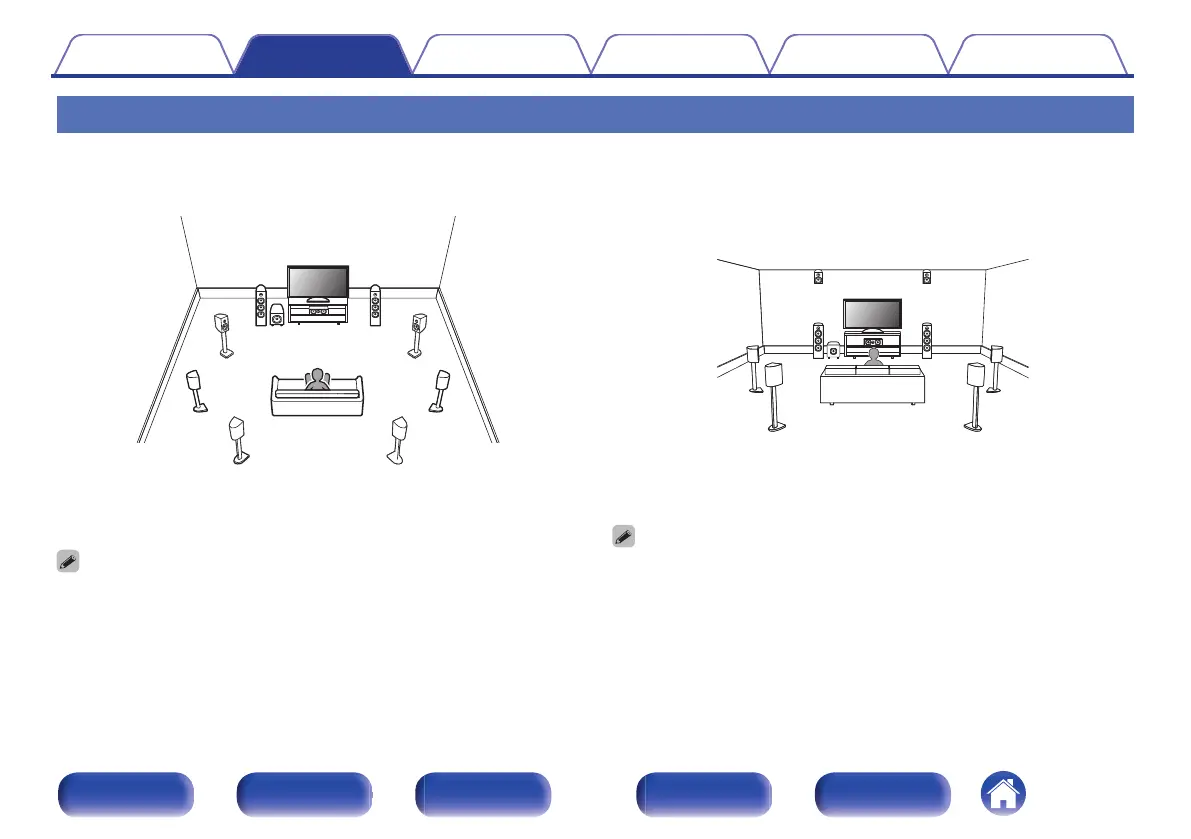

Example layout when using surround back
and front wide speakers
FL
SW C
SL
FR
SR
SBRSBL
FWL FWR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB & FW” in the menu when connecting in this
configuration. (v p. 215)
o
Example layout when using surround back
and one set of height speakers
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB” and “Height Sp” (or “Dolby Sp”) to “2ch” in the
menu when connecting in this configuration. (v p. 215)
0
You can change the Front Height Speakers to any Height/Ceiling/Dolby Atmos
Enabled speakers in the “Amp Assign” - “Layout” setting. (v p. 217)
