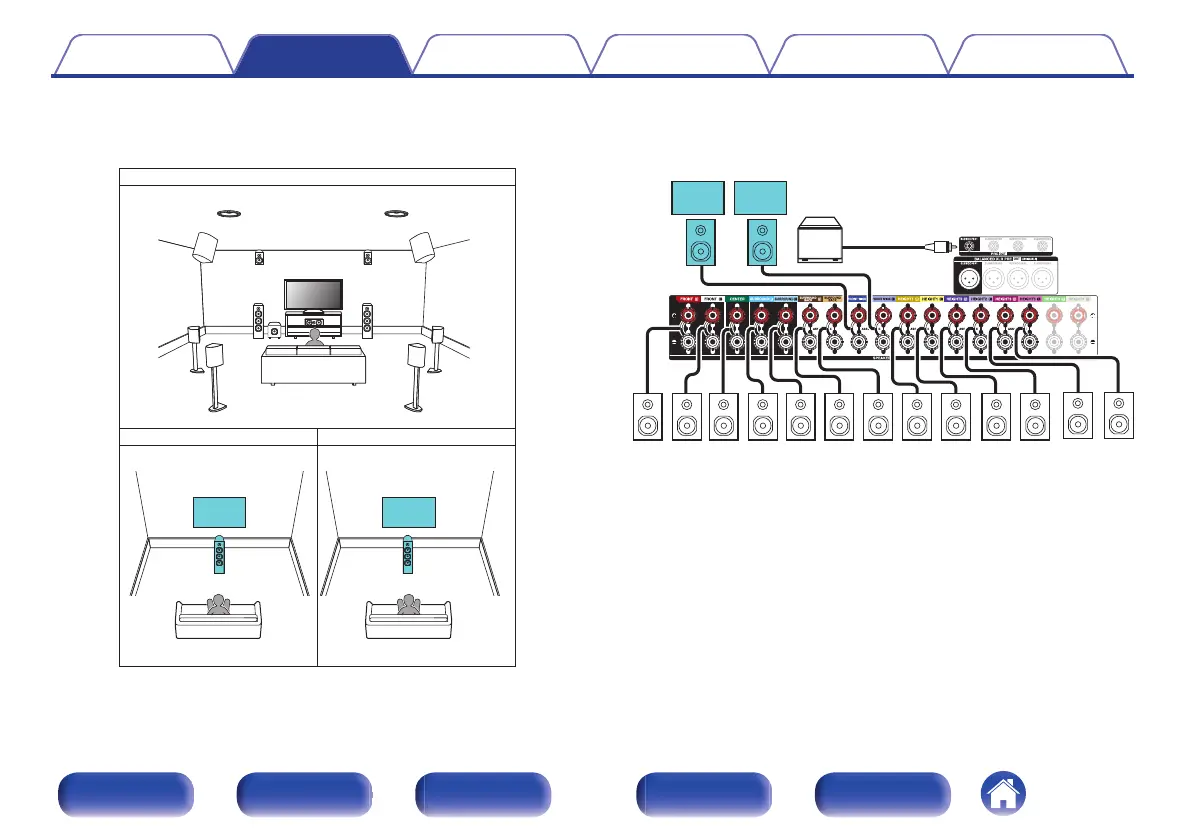

13.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3)
This type of configuration plays back 13.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3.
ZONE2
Mono
ZONE3
Mono
MAIN ZONE
3ENOZ2ENOZ
C
SW
RSLS
FHL FHR
RHL
TML TMR
RHR
SBL
SBR
FL FR
CFR FL SR SL
SBR SBL
FHR FHL RHR RHL
z
2
z
2
z
2
z
2
z
2
z
2
z
1
z
1
SW
ZONE3
Mono
ZONE2
Mono
TMR TML
z1
The speaker terminals for connecting to the ZONE2/3 speakers vary
depending on the MAIN ZONE layout. Refer to “Amp Assign” - “ZONE2/3”.
(v p. 213)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker
terminals. Set the speaker to be connected from “Height” in the menu.
(v p. 217)
