Versatile Input & Output Terminals
• Digital Optical Output
The AVR-1603 provides 1 digital optical output terminal where you can
connect a CD recorder or other digital recording device to make high-
quality digital recordings directly from digital sources such as CD.
• Front Panel Inputs
The AVR-1603's front panel includes 1 set of video audio and digital
optical input terminals where you can easily connect your video cam-
era, game machine or other video or pure audio device.
•
Audio Inputs
7 Analog Inputs ............................ CD, TUNER, DVD/VDP, TV/DBS, AUX,
VCR, CDR/TAPE, V.AUX(FRONT)
6 Analog EXT. Input..................... FRONT L/R, CENTER,
SURROUND L/R, SUBWOOFER
3 Digital (Optical) Input ................ OPTICAL X 3 (FRONT: 1)
1 Digital (Coaxial) Input................ COAXIAL X 1
•
Audio Outputs
1 Analog PRE OUT Terminals ..... SUBWOOFER
2 Analog REC OUT Terminals
...... VCR, CDR/TAPE
1 Digital (Optical) Output.............. OPTICAL X 1
•
Video Inputs
4 Composite Inputs ...................... DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)
3 S-Video Inputs .......................... DVD/VDP, TV/DBS, VCR
2 Component Inputs..................... DVD/VDP, TV/DBS
•
Video Outputs
2 Composite Outputs ................... VCR, MONITOR
2 S-Video Outputs........................ VCR, MONITOR
1 Component Output.................... MONITOR
■
Front A/B Speaker Terminals
Two sets of speaker terminals are provided for the main (left and right)
speakers. This allows the use of a second pair of stereo speakers in
another room in the home.
■
High-grade Speaker Terminals (for speakers A):
Large binding post speaker terminals has been provided for all 5 channels
(Front L/R, Center, Surround L/R) to accommodate thick, high-grade
speaker cables and banana plugs.
■
Personal Memory Plus, for Easy Operation
The AVR-1603 includes the Personal Memory Plus function that auto-
matically remembers the surround mode you last used for each program
source, so that you do not need to select the mode again for that program.
■
Multi-Function Preset Memory Remote Controller
The supplied system remote controller features a large selection of remote
control codes to operate other components in your home theater system,
including codes for selected DENON models, along with remote control
codes from other manufacturers. The most frequently used buttons are
laid out separately for TV, VCR and DVD, for maximum ease-of-use.
■
Acclaimed Customization Feature
As with all of DENON’s high-grade A/V receiver, the AVR-1603 lets you
adjust delay times and other parameters so that you can customize the
performance of the AVR-1603 to suit your own home theater and
enhance operating ease. The adjustments are easy to make via a dialog
format on the fluorescent display on the front panel. These customized
features are then stored, for each source input and surround mode, in
Personal Memory Plus so constant readjustments are not required.
■
Frequency Synthesis Tuning
• 40-Station AM/FM Random Preset Memory Tuning
• Auto Preset Memory
Specifications
■
Power Amplifier Section
Rated output *THD figures are power amp stage values.
Front ...................................... 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
............................................... 110W + 110W (6 ohms, 1 kHz, 0.7 % THD)
Center.................................... 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
............................................... 110 W (6 ohms, 1 kHz, 0.7 % THD)
Surround ............................... 80 W + 80 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
............................................... 110W + 110W (6 ohms, 1 kHz, 0.7 % THD)
■
Preamplifier Section
Input sensitivity/Impedance
CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX
V.AUX(FRONT).............. 200 mV/47 kohms
Output level/Load impedance
SUBWOOFER................ 1.2 V/10 kohms
CDR/TAPE, VCR............ 200 mV/47 kohms
Frequency response........... 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)
Signal-to noise ratio............ 98 dB (A-weighting) (Tone Defeat On)
Tone control........................ Treble: ±12 dB at 10 kHz
Bass: ±12 dB at 100 Hz
■
FM Section
Tuning frequency range...... 87.5 - 107.9 MHz
Usable sensitivity................ 1.0 µV (11.2 dBf)
■
AM Section
Tuning frequency range...... 520 - 1710 kHz
Usable sensitivity................ 18 µV
■
General
Power supply ...................... AC 120 V, 60 Hz
Power consumption ............ 4.0 A
Dimensions......................... 434 (W) x 147 (H) x 417 (D) mm
17.1” (W) x 5.8” (H) x 16.4” (D)
Weight ................................ 10.4 kg, 22.9 lbs
DENON ELECTRONICS. DENON, LTD.
DIVISION OF DENON CORPORATION (USA) 3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: 973-396-0810 www.denon.com
DENON CANADA INC.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
TEL: 905-475-4085 www.denon.ca
12970602 A
NEW MODEL INFORMATION
AVR-1603
*Design and specifications are subject to change without notice.
*”Dolby”, “Dolby Digital”, “Pro Logic II”, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation.
*DTS is registered trademarks of DTS Technology.

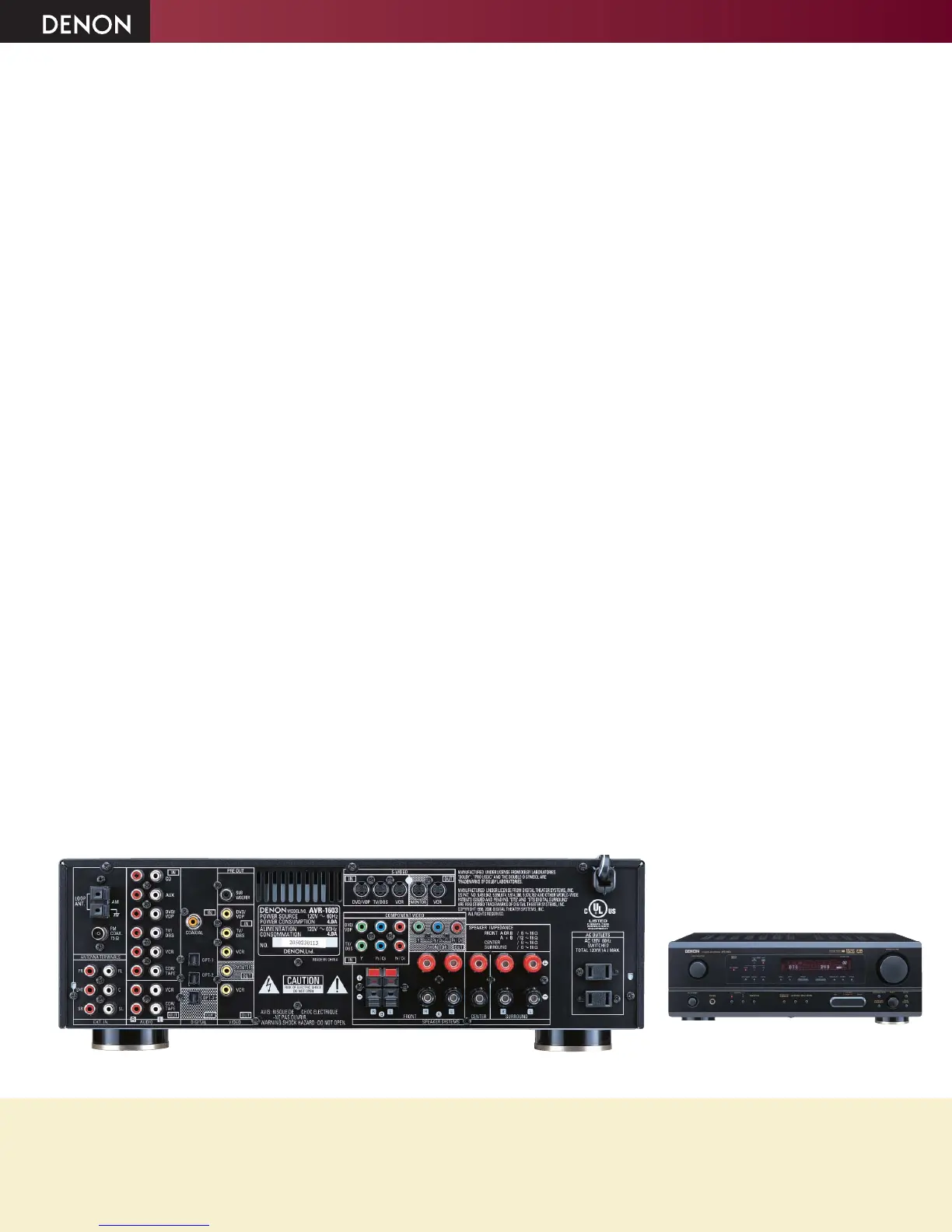

Front panel with terminal cover.
