Denon AVR-2113 User Manual

97

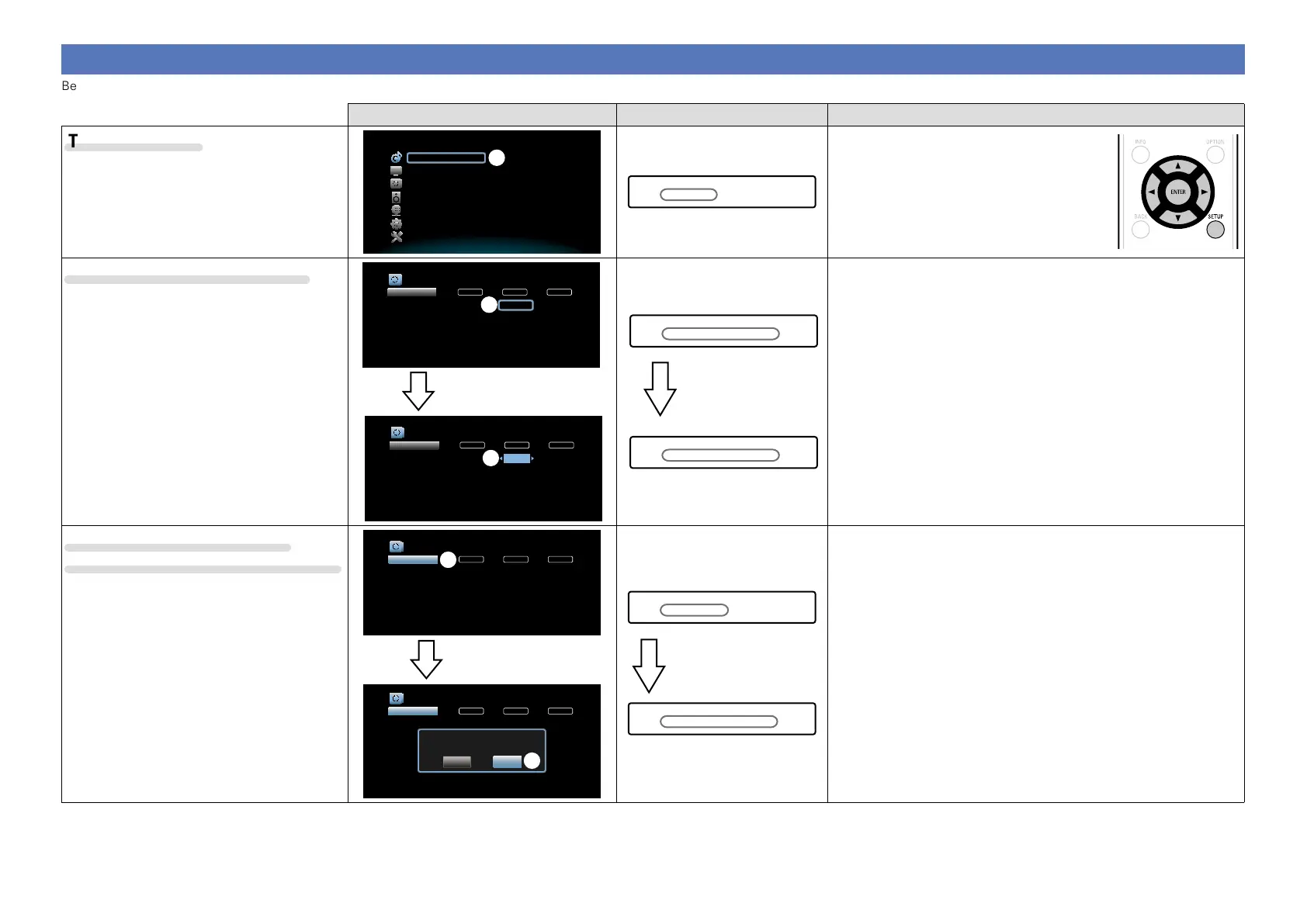

Examples of menu and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
Menu display Front display Description
Top menu display
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
w
w
Audio
q Press SETUP to display the menu screen.
w TV screen: Displays the selected line.
Display: Displays the selected item.
•Use ui to move to the item you want to set.
Display when changing settings
DIGITALHDMI COMP
Inputs/Input Assign [1/2]
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
COAX
None
None
None
None
OPT1
None
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
None
HDMI6
COMP
None
None
None
None
None
None
Changes HDMI input assignments
q
DIGITALHDMI COMP
Inputs/Input Assign [1/2]
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
COAX
None
None
None
None
OPT
None
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
None
HDMI6
COMP
None
None
None
None
None
None
Changes HDMI input assignments
w
Press ENTER.
q
CBL/SAT [COAX ]
e
CBL/SAT •COAX –
Press ENTER.
q TV screen: Displays the selected line.
Display: Displays the selected item.
•Use
ui to move to the item you want to set.
w Press ENTER to set to the mode in which the setting can be made.
e 0 1 is displayed at the sides of items whose setting can be changed.
Use o p to change to the desired setting.
Display when returning to the
settings in effect at time of purchase
DIGITALHDMI COMP
Inputs/Input Assign [1/2]
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
COAX
None
None
None
None
OPT
None
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
None
HDMI6
COMP
None
None
None
None
None
None
Resets all surround parameters to the factory defaults
Reset to the default values?
Yes No
w
Press ENTER.
DIGITALHDMI COMP
Inputs/Input Assign [1/2]
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
COAX
None
None
None
None
OPT
None
HDMI1
HDMI2
HDMI3
HDMI4
HDMI5
None
HDMI6
COMP
None
None
None
None
None
None
Resets all surround parameters to the factory defaults
q
w
Default :•No
q
Default
Press ENTER.
q Press
u to select “Set Defaults”, then press ENTER.
w Press o to select “Yes”, then press ENTER.
Basic version
Advanced version
Informations
Advanced version
DVD

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
