Connecting an HDMI-compatible device

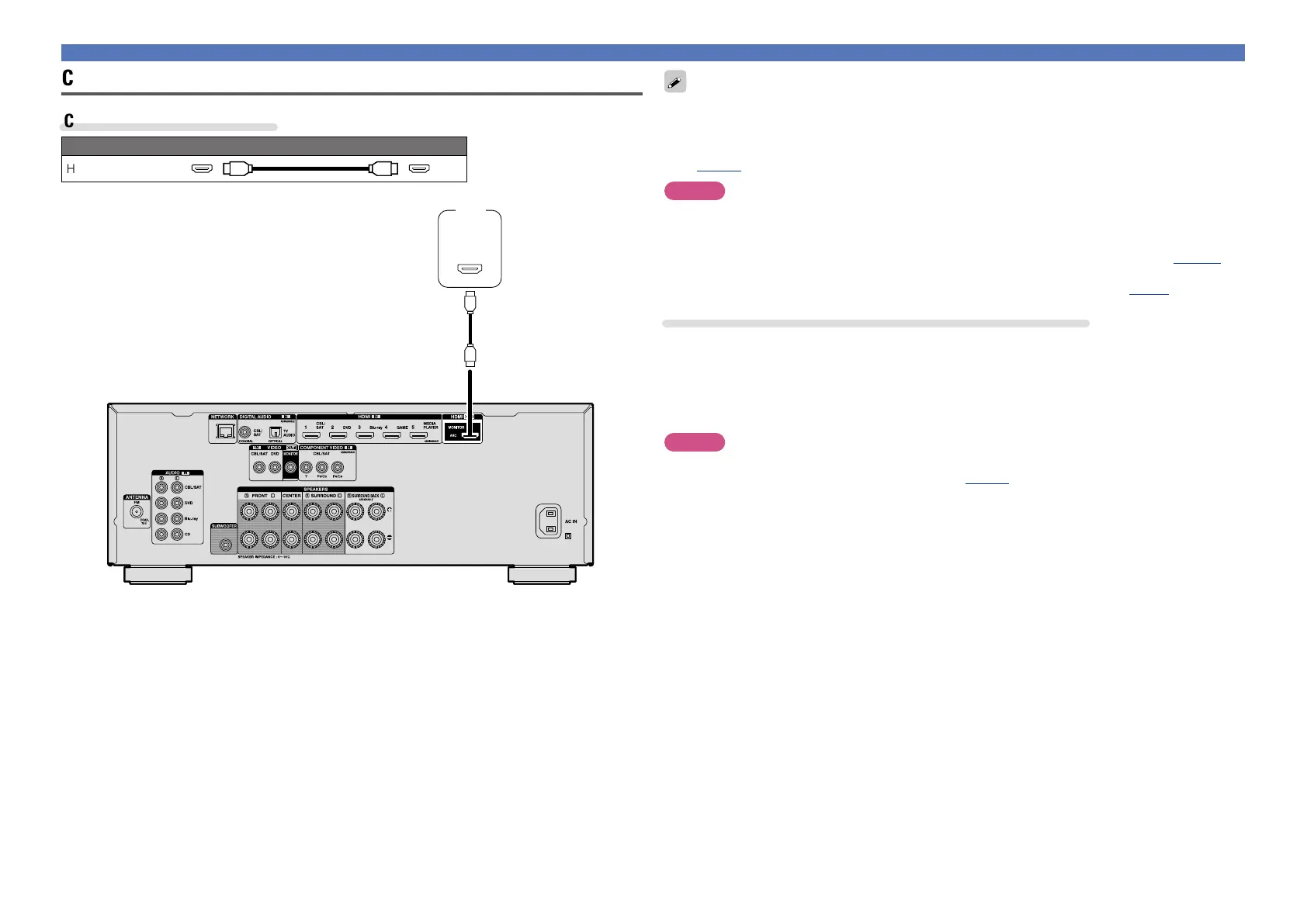

Connecting this unit to a TV via HDMI connections
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
(ARC)
IN
HDMI
TV
•Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
•When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor. Make audio connections
(vpage13 “Connecting a TV”).
NOTE
•The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
•When connecting a TV that does not support the ARC function, an audio cable connection is
required in addition to the HDMI cable. In this case, refer to “Connecting a TV” (vpage13) for
the connection method.
For the ARC function, see “About ARC (Audio Return Channel) function” (vpage8).
Connecting to a device equipped with a DVI-D connector
The DVI-D (Digital Visual Interface) method is also used for video transmission via digital signals. This is
developed mainly for computers, and some AV devices such as projectors are equipped with this interface.
To output HDMI video signals to a DVI-D video input compatible device, use an HDMI/DVI conversion
cable, which converts HDMI video signals to DVI signals.
The DVI-D connector can transmit high quality digital signals, but the copy guard and other issues may
hinder normal operations for some device combinations.
NOTE
•No sound is output when connected to a device equipped with a DVI-D connector. Make audio
connections as described in “Connecting a TV” (vpage13).
•Signals cannot be output to DVI-D devices that do not support HDCP.
•Depending on the combination of devices, the video signals may not be output.
Basic version
Advanced version
Informations
Basic version
DVD

Denon AVR-2113 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	6
Audio (L/R) in	5
Composite video in	3
Component video (YPbPr/YCbCr) in	1
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	56
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD
Volume control	Rotary
Multi-Zone quantity	2
Surround modes quantity	7
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	332 mm
Width	435 mm
Height	167 mm
Weight	9500 g
