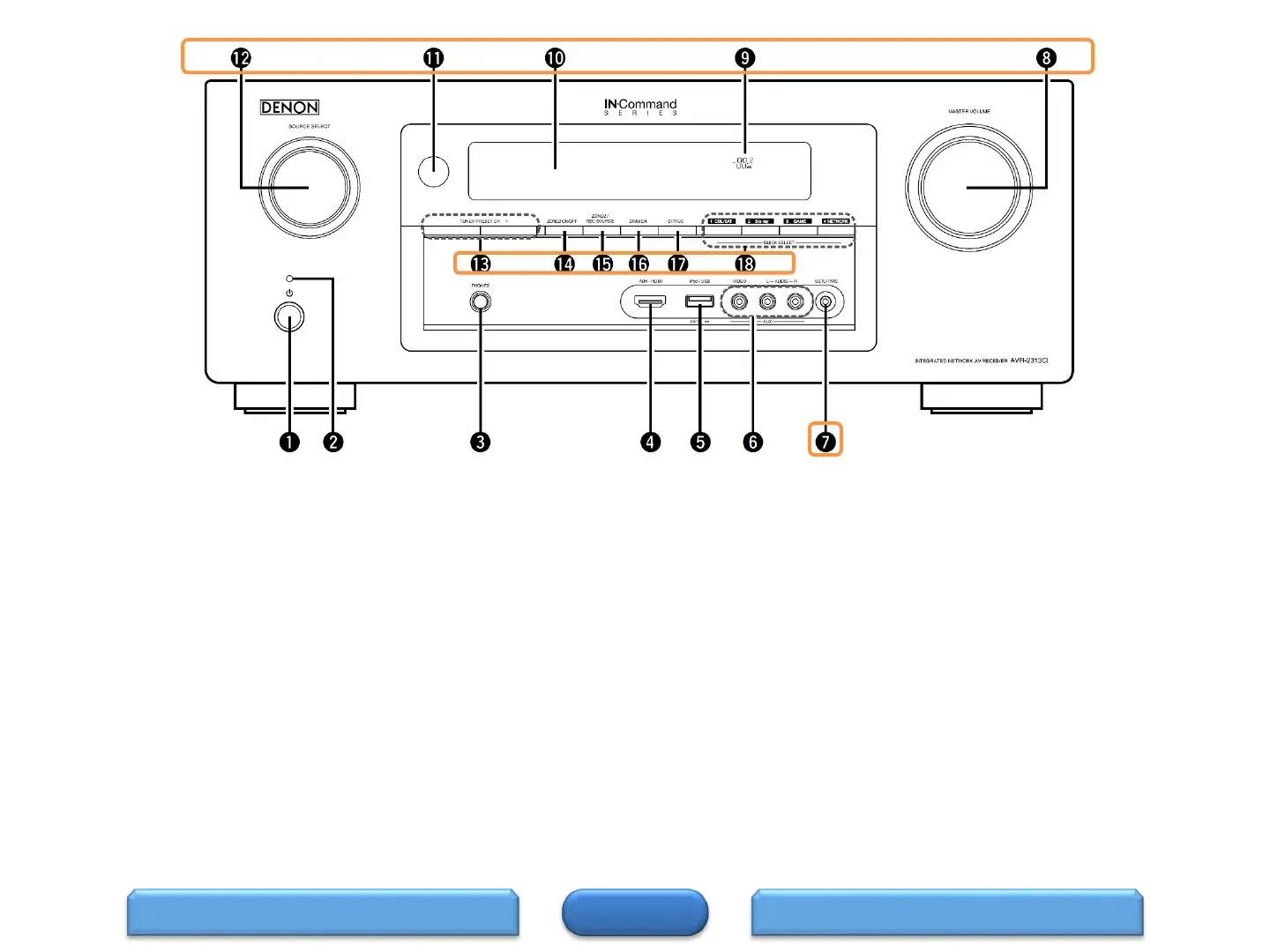

FRONT PANEL 1
3
SETUP MIC jack
Used to connect the supplied Setup and measurement microphone.
MASTER VOLUME knob
This adjusts the volume level.
Master volume indicator
Display
This displays various pieces of information.
Remote control sensor
This receives signals from the remote control unit.
SOURCE SELECT knob
This selects the input source.
Tuner preset channel buttons (TUNER PRESET CH +, –)
These select preset FM/AM radio stations.
ZONE2 ON/OFF button
This turns the power of ZONE2 on/off.
ZONE2 ON/OFF button
This turns the power of ZONE2 on/off.
ZONE2/REC SOURCE button
This selects the input source for ZONE2.
DIMMER button
Each press of this switches the brightness of the display.
STATUS button
Each press of this switches the status information that is shown on the
display.
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings.
Front Panel (2 of 2)
DISPLAY
