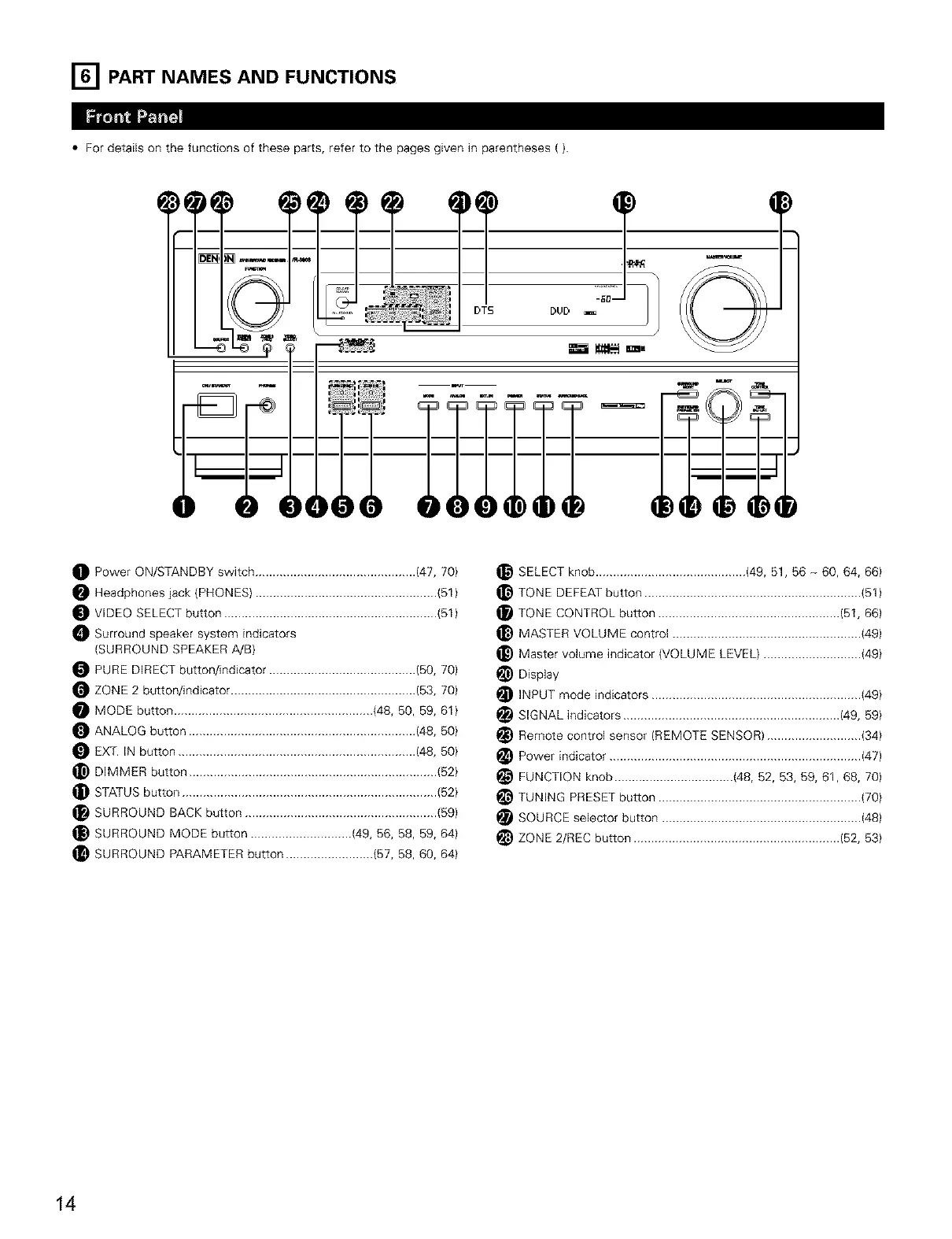

[] PART NAMES AND FUNCTIONS
• For details on the functions of these parts, refer to the pages given in parentheses ().
DEN _ _
¥4, i
......._ , DTS DUD
I(
O Power ON/STANDBY switch .............................................. (47, 70}
Headphones jack (PHONES) .................................................... (51 }
VIDEO SELECT button ............................................................. (51}
Surround speaker system indicators
(SURROUND SPEAKER A!B)
PURE DIRECT button/indicator .......................................... (50, 70)
ZONE 2 button/indicator ..................................................... (53, 70}
MODE button ......................................................... (48, 50, 59, 61}
ANALOG button ................................................................. (48, 50}
O EX_. IN button .................................................................... (48, 50}
_) DIMMER button ....................................................................... (52}
STATUS button ......................................................................... (52}
SURROUND BACK button ....................................................... (59)
_) SURROUND MODE button ............................. (49, 56, 58, 59, 64)
SURROUND PARAMETER button ......................... {87, 58, 60, 64)
SELECT knob ........................................... (49, 51, 56 - 60, 64, 66)
_} TONE DEFEAT button .............................................................. (51}
TONE CONTROL button .................................................... (51, 66)
_) MASTER VOLUME control ...................................................... (49)
Master volume indicator (VOLUME LEVEL) ............................ {49}
Display
INPUT mode indicators ............................................................ (49}
i_ SIGNAL indicators .............................................................. (49, 59}
i_ Remote control sensor (REMOTE SENSOR) ........................... (34}
Power indicator ........................................................................ {47)
i_ FUNCTION knob .................................. (48, 52, 53, 59, 61, 68, 70}
TUNING PRESET button .......................................................... {70)
SOURCE selector button ......................................................... {48)
i_ ZONE 2/REC button ........................................................... (52, 53}
