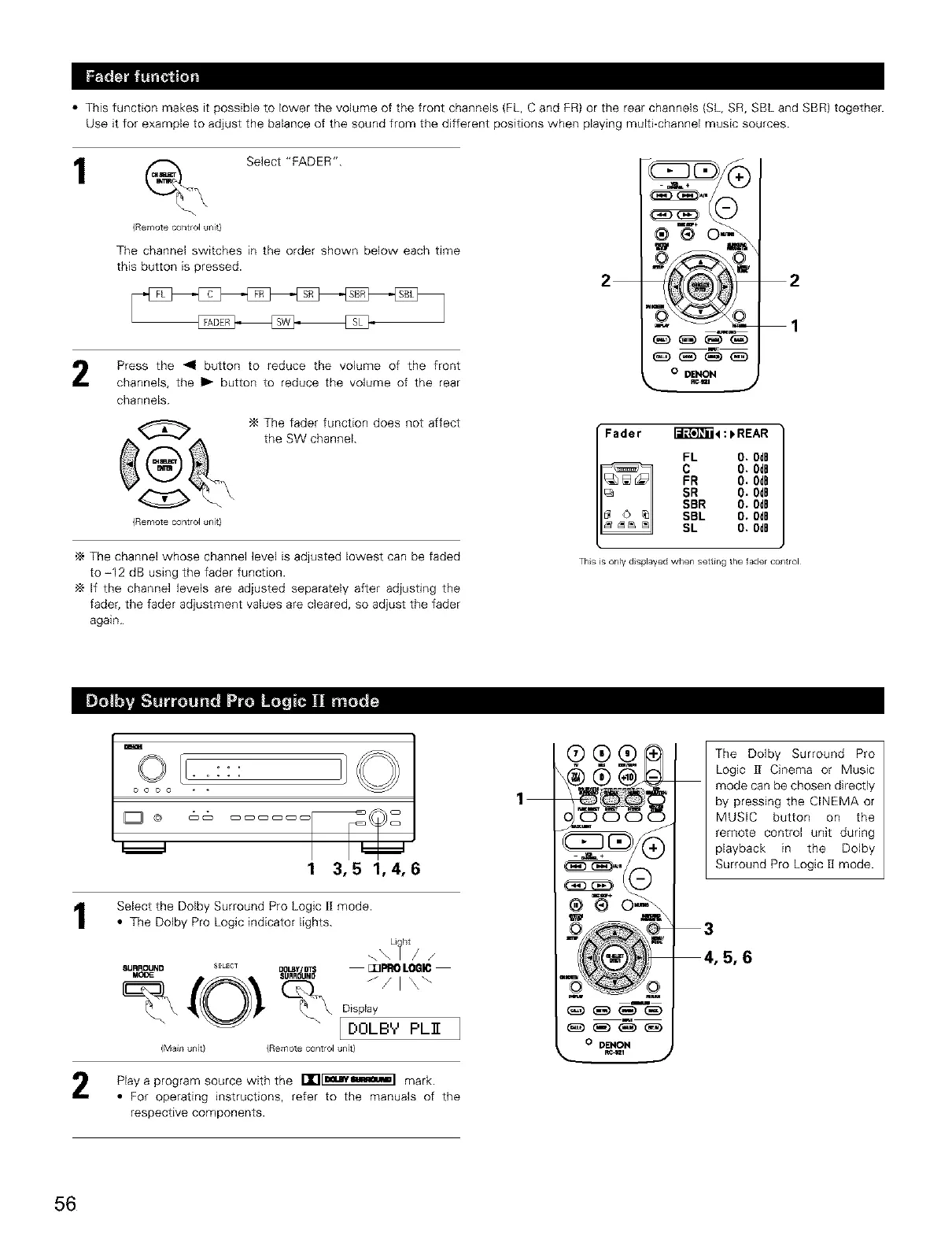

Denon AVR-3803

• This function makes it possible to lower the volume of the front channels (FL, C and FR) or the rear channels (SL, SR, SBL and SBR) together•
Use it for example to adjust the balance of the sound from the different positions when playing multi-channel music sources•
1
2
Select "FADER".
{Remote contlol unit)
The channel switches in the order shown below each time
this button is pressed•
Press the <1 button to reduce the volume of the front
channels, the II- button to reduce the volume of the rear
channels.
The fader function does not affect
the SW channel.
{Remote contlol unit}
2
=_mD
0 DEaN
Fader r'_T_r_ : bREAR
FL 0, OdE
C 0. OdB
FR O. OdB
SR O. OdB
SBR O. OdB
SBL O. OdB
SL 0. 0da
2
1
,_ The channel whose channel level is adjusted lowest can be faded
to -12 dB using the fader function.
If the channel levels are adjusted separately after adjusting the
fader, the fader adjustment values are cleared, so adjust the fader
again.
This is only displayed when setting the fader control
f B
o o o o , .
D @ " "
E====_
1
3,5 1,4,6
Select the Dolby Surround Pro Logic Il mode•
• The Dolby Pro Logic indicator lights.
/
8URROUNDMoO_SELECT "0LSYsun_/JNODTSEI]PROLOGIC
Display
I DOLBV PLII
(Maln unit} (Remote control unit}
Play a program source with the rlnEKuw_L,m] mark•
• For operating instructions, refer to the manuals of the
respective components•
0 DENON
The Dolby Surround Pro
Logic II Cinema or Music
mode can be chosen directly
by pressing the CINEMA or
MUSIC button on the
remote control unit during
playback in the Dolby
Surround Pro Logic I] mode.
56
