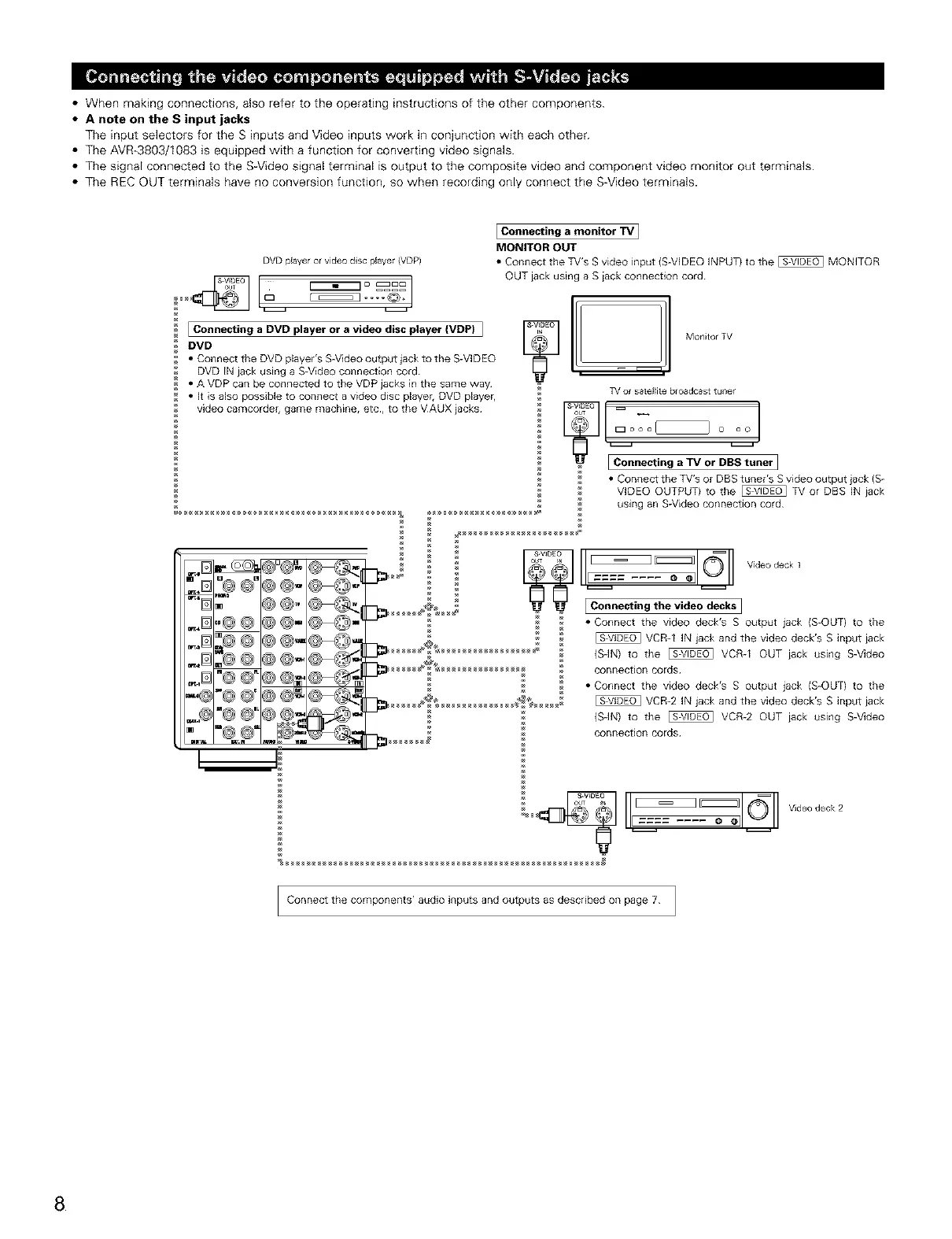

• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and Video inputs work in conjunction with each other.
• The AVR-3803/1083 is equipped with a function for converting video signals.
• The signal connected to the S-Video signal terminal is output to the composite video and component video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.
DVD player or video disc player (VDP)
Connecting a monitor "R/]
MONITOR OUT
• Connect the TV's Svideo input (S-VIDEO INPUT) to the _ MONITOR
OUT iack using a Siack connection cord¸
[ Connecting a DVD player or a video disc player (VDP) ] _r_s.l_
DVD
• Connect the DVD player's S-Video output jack to the S-VIDEO
DVD IN iack using a S-Video connection cord
• A VDP can be connected to the VDP jacks in the same way
• g is also possible to connect a video disc player, DVD player,
video camcorder, game machine, etc, to the VAUX jacks
°@@"
®@-.
,,,.,D,@@ @@-_
'@@ @@=
,,,,D,@@ @@,-
,,,.,B_'@@_@@_
-@@,
,,@@,_
mm_
E_ i Monitor TV
TVor sateJHteb_oadcastturler
• Connect the TV's or DBS tuner's S video output jack (S-
VIDEO OUTPUT) to the _ TV or DBS IN iack
using an S-Video connection cord
Video deck
1
I Connecting the video decks I
• Connect the video deck's S output jack {S-OUT) to the
_ VCR-1 IN jack and the video deck's S input iack
(SdN) to the _ VCR-I OUT iack using S-Video
connection cords
• Connect the video deck's S output jack {S-OUT) to the
_H_ _ VCR-2 IN jack and the video deck's S input iack
(SdN) to the _ VCR-2 OUT iack using S-Video
connection cords
Connect the components' audio inputs and outputs as described on page 7 ]
Video deck 2
8
