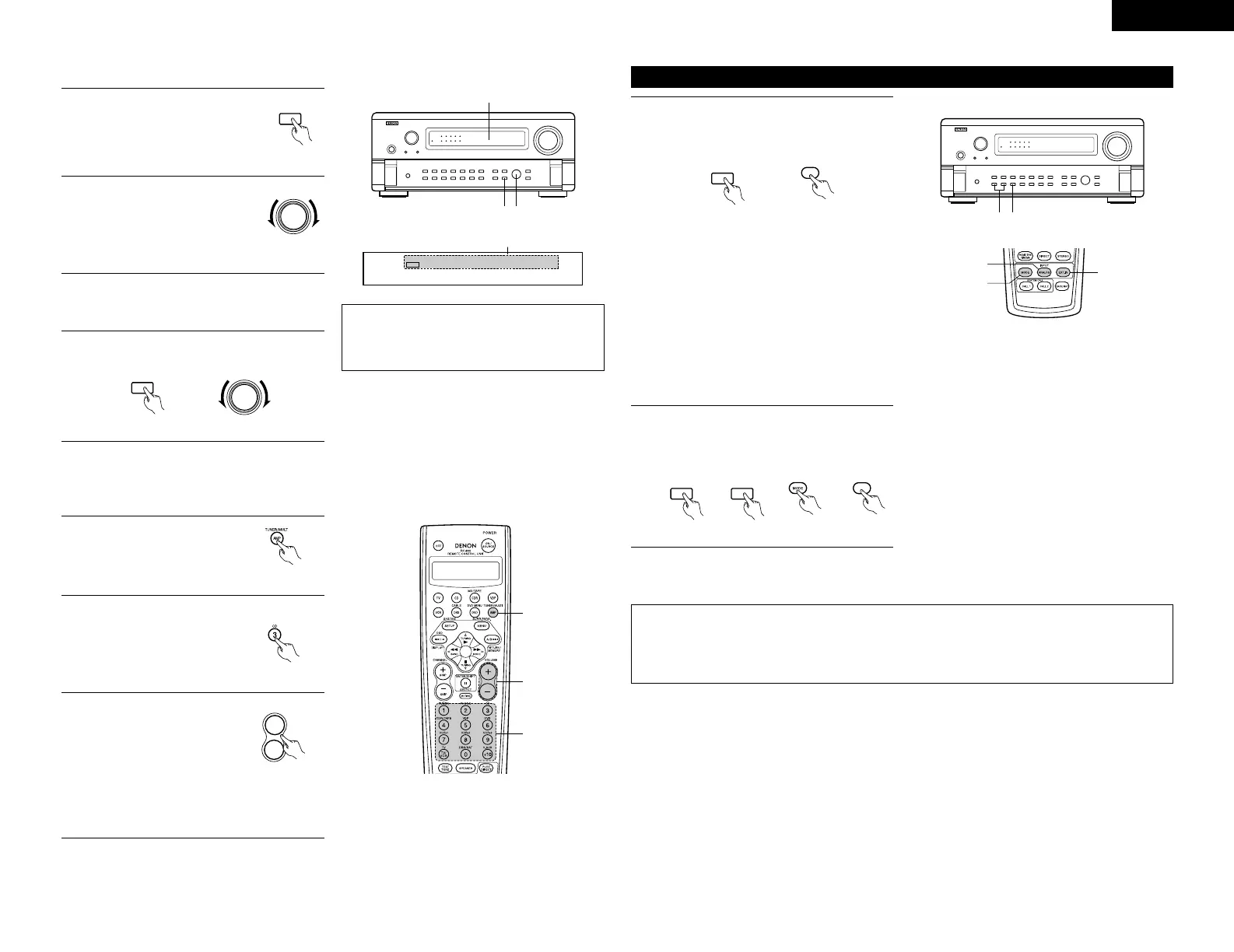

[3] Outputting a program source to an amplifier, etc., in a different room (MULTI mode)
1
Press the REC/MULTI button
until “M-ZONE SOURCE”
appears on the set’s display.
REC / MULTI
(Main unit)
Display
NOTE:
• The signals of the source selected in the Multi
mode are also output from the TAPE and VCR
recording output terminals.
2
Select the source you want to
record appears on the set’s
display.
• The MULTI indicator lights.
• The indicator for the selected
program source light.
SELECT
(Main unit)
3
Start playing the source to be output.
• For operating instructions, refer to the
manuals of the respective components.
VCR -1 -2 -3 V.AUX MD / TAPE
PHONO CD TUNER DVD / VDP TV / DBS
MULTI
2
M-ZONE SOURCE
MULTI
1
3
2
1, 4
1, 2
2, 4
4
To cancel, press the REC/MULTI button and
select “SOURCE”.
Playback using the external input (EXT. IN) jacks
• When the input mode is set to the external input (EXT. IN), the play mode (DIRECT, STEREO, DOLBY/DTS
SURROUND, HOME THX CINEMA, WIDE SCREEN, 5CH/7CH STEREO or DSP SIMULATION) cannot be set.
NOTES:
• In play modes other than the external input mode, the signals connected to these jacks cannot be played.
In addition, signals cannot be output from channels not connected to the input jacks.
• The external input mode can be set for any input source. To watch video while listening to sound, select
the input source to which the video signal is connected, then set this mode.
1
Set the external input (EXT. IN) mode.
Press the EXT. IN (or the EXT. IN button on the
remote control unit) to switch the external
input.
Once this is selected, the input signals
connected to the FRONT-L, FRONT-R,
CENTER, SURR.-L (surround left), SURR.-R
(surround right), SB-L (surround back left) and
SB-R (surround back right) channels of the EXT.
IN jacks are output directly to the front (left and
right), center surround (left and right) and
surround back (left and right) speaker systems
as well as the pre-out jacks without passing
through the surround circuitry.
In addition, the signal input to the SW
(subwoofer) jack is output to the PRE OUT SW
(subwoofer) jack.
EXT. IN
(Main unit)
EXT.IN
(Remote control unit)
2
Cancelling the external input mode.
To cancel the external input (EXT. IN) setting,
press the INPUT MODE or ANALOG button to
switch to the desired input mode.
INPUT MODE
(Main unit)
ANALOG
or
ANALOG
(Remote control unit)
or
1
2
2
12
[4] Remote control unit operations during multi-source playback
This operation is possible when Multi mode is selected.
This operation is not possible in the REC OUT mode.
1
Select “MULTI” display
using the AMP button.
(Remote Control unit)
2
Selecting the input source
Press the input
source button.
The multi source switches
directly.
(Remote Control unit)
Example: CD
3
Adjusting the volume level
Use the VOLUME buttons to
adjust the volume level.
NOTE:
MULTI VOLUME functions
when “Variable” is selected
for System Setup Menu
“Multi Zone Vol. Level”.
(See page 13.)
VOLUME
+
-
(Remote Control unit)
REC / MULTI
SELECT
(Main unit)
