26
ENGLISH

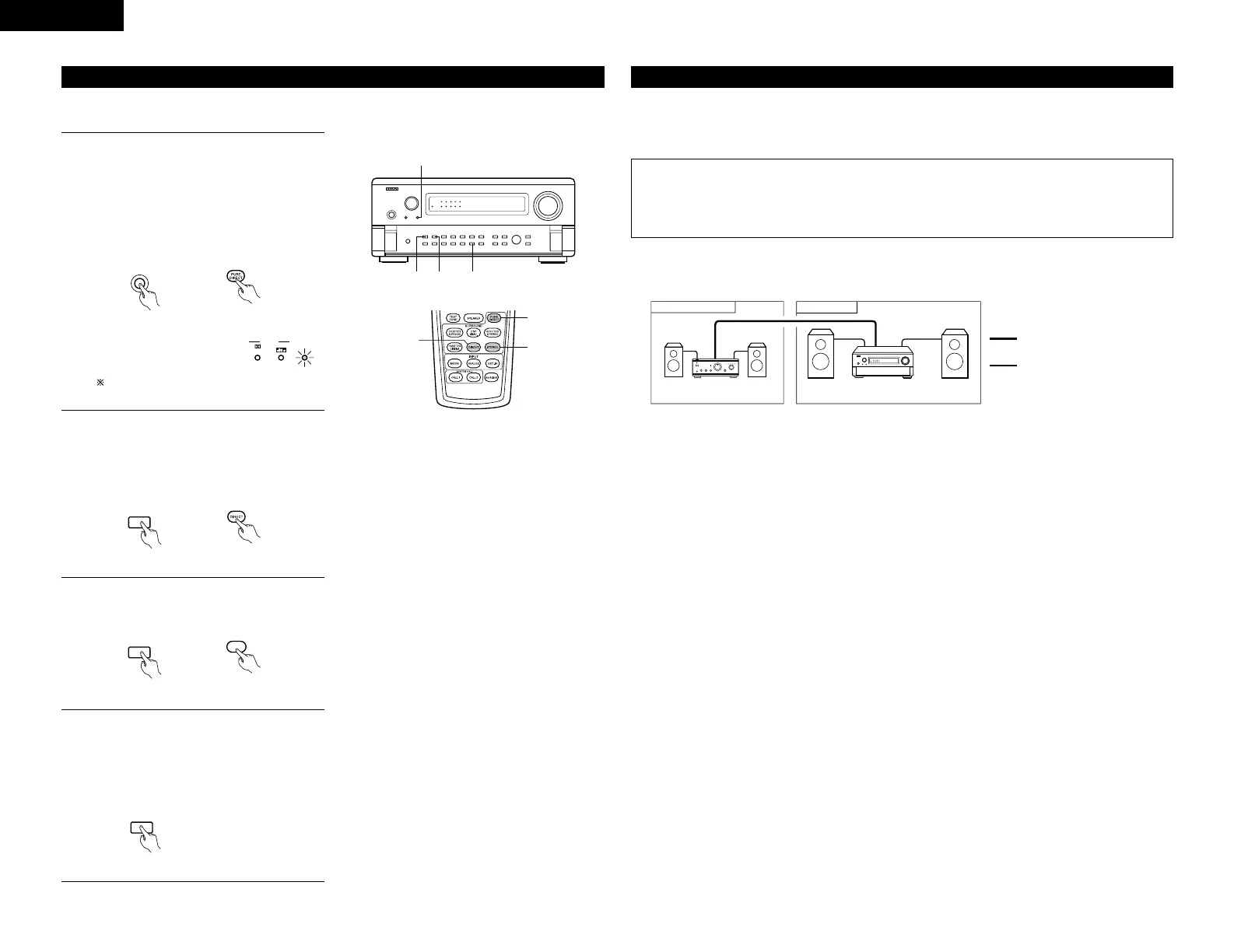

The AVC-A11SR is equipped with three 2-channel playback modes exclusively for music.
Select the mode to suit your tastes.
Playing audio sources (CDs and DVDs)
1
PURE DIRECT mode
In this mode, the music is played with an
extremely high level of sound quality.
When this mode is set, all the video-related
circuits are turned off so that music signals can
be reproduced with high quality. When an
analog input (phono, etc.) is selected, the digital
processing circuitry is also turned off to achieve
analog sound with even higher purity.
(Main unit) (Remote control unit)
2
DIRECT mode
Use this mode to achieve good quality 2-
channel sound while watching images. In this
mode, the audio signals bypass such circuits as
the tone circuit and are transmitted directly,
resulting in good quality sound.
(Main unit) (Remote control unit)
NOTES:
• The system setup function cannot be used when the
PURE DIRECT mode is set or the “VIDEO OFF”
setting is selected. To use the system setup
function, cancel the PURE DIRECT mode or select
the “VIDEO ON” setting.
• The channel level and surround parameters in the
PURE DIRECT mode are the same as in the DIRECT
mode.
• When the PURE DIRECT button is pressed while in
the PURE DIRECT mode, the PURE DIRECT mode is
canceled and the DIRECT mode is set.
• The crossover frequency setting must be set to
“FIXED-THX-” in the system setup in order to turn
off the digital circuit when in the analog input mode
in the PURE DIRECT mode. (See page 11.)
3
STEREO mode
Use this mode to adjust the tone and achieve
the desired sound while watching images.
(Main unit) (Remote control unit)
4
VIDEO ON/OFF button
When no video signals of a DVD, etc., are
connected to the AVC-A11SR and DVD, etc.,
are connected directly to a TV, etc., the
unneeded video circuitry can be turned off by
selecting the “VIDEO OFF” setting.
PURE DIRECT display lights.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the MULTI ZONE AUDIO OUT terminals are wired and connected to integrated amplifiers
installed in other rooms, different sources can be played in rooms other than the main room in which this unit
and the playback devices are installed. (Refer to ANOTHER ROOM on the diagram below.)
Multi-source and multi-zone playback
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming
or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating
instructions.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
AVC-A11SRINTEGRATED
AMPLIFIER
ANOTHER ROOM MAIN ROOM
B
MULTI SOURCE AUDIO signal
cable
SPEAKER cable
The display is off in the PURE DIRECT
mode.
