Denon AVR-4308CI

63
Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
[MENU]
[CH +/–]
[TV/VCR]
[ENTER]
[DISPLAY]
[0 ~ 9, +10]
[uiop]
[SETUP]
[1],
[8 9],
[6 7], [3],
[2],
[SOURCE ON],
[SOURCE OFF]
EL Display

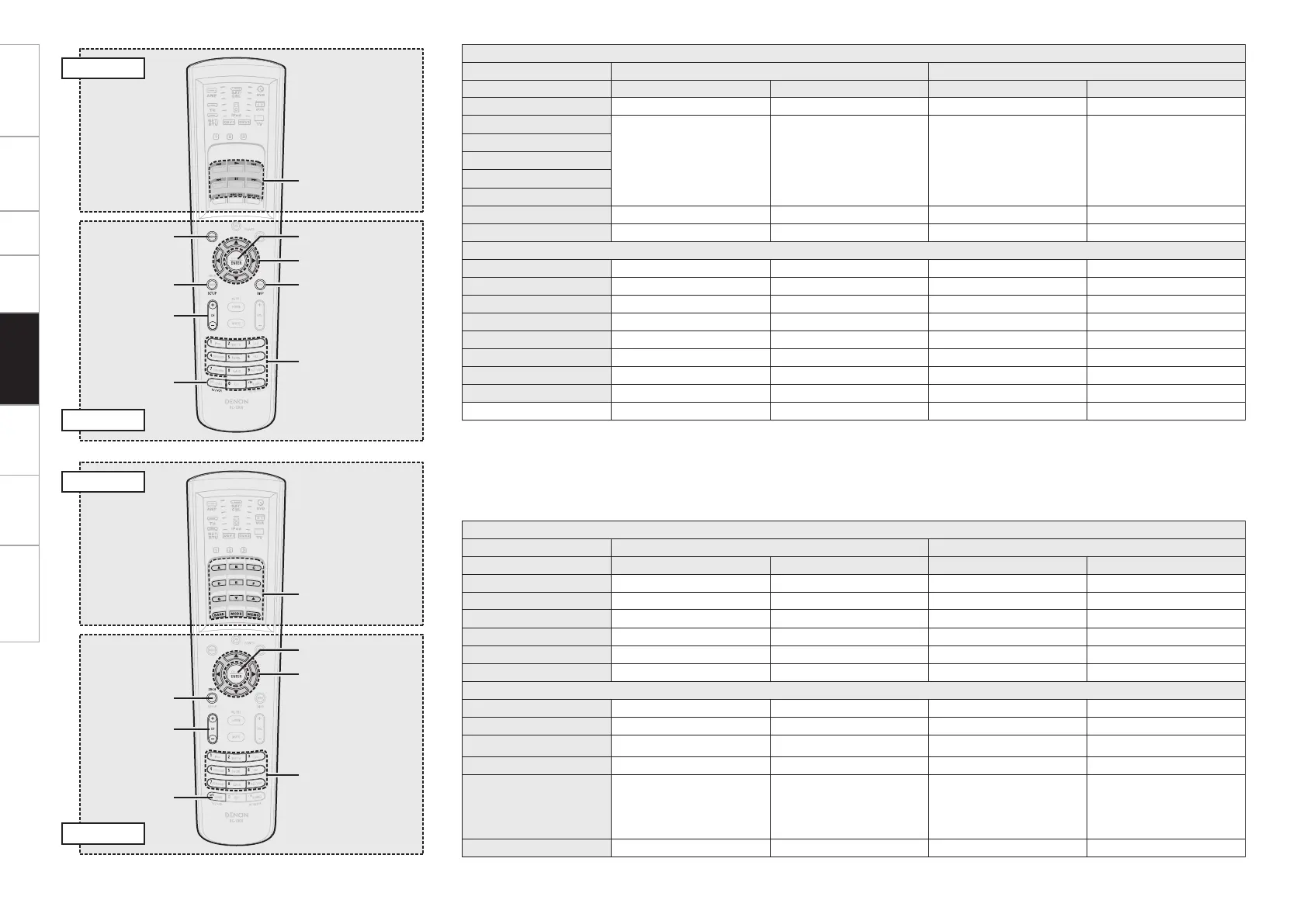

MODE SELECTOR TV Satellite Receiver / Cable TV
Device Mode DEVICE 1 DEVICE 2 DEVICE 1 DEVICE 2
Device operated TV (HITACHI) TV (SONY) SAT SAT
1
Punch through Punch through Punch through Punch through
8 9
6 7
3
2
SOURCE ON Power on Power on Power on Power on
SOURCE OFF Power off Power off Power off Power off
Buttons
MENU Menu/guide Menu/guide Menu/guide Menu/guide
u i o p
Cursor Cursor Cursor Cursor
ENTER Enter setting Enter setting Enter setting Enter setting
SETUP Set up Set up Set up Set up
DISPLAY Display Display Display Display
CH + / – Switch channels Switch channels Switch channels Switch channels
0 ~ 9, +10 Channel selection Channel selection Channel selection Channel selection
TV/VCR Switch inputs Switch inputs – –
Special Remarks
q, e q, e q, e q, e
GSpecial RemarksH
q Only one component can be preset for each mode. If a new code is preset, the previous code is automatically cleared.
e The CD, VCR or DVD buttons (one only set) can be assigned to the monitor, satellite receiver and cable TV (vpage 65 “Punch Through
Function”).
EL Display
Buttons
[CH +/–]
[SEARCH]
[SHIFT]
[A ~ G], [d f],
[BAND],
[MODE],
[MEMO]
[ENTER]
[0 ~ 9]
[uiop]
EL Display
MODE SELECTOR TU NET / DTU
Device Mode DEVICE 1 DEVICE 2 DEVICE 1 DEVICE 2
Device operated Analog tuner XM NET / USB HD Radio
A ~ G Preset memory block selection Preset memory block selection Preset memory block selection Preset memory block selection
d f
Tuning + / – Channel selection – Tuning + / –
BAND AM/FM switching – – AM/FM switching
MODE Switch search modes – – Switch search modes
MEMO Preset memory registration Preset memory registration Preset memory registration Preset memory registration
Buttons
u i o p
– Category search Cursor
Multicast switching (ui)
ENTER – – Enter, Playback/Pause –
SEARCH – Direct search Search Multicast switching
CH + / – Preset channel selection Preset channel selection Preset channel selection Preset channel selection
0 ~ 9
Preset channel selection
(1 ~ 8)
Preset channel selection
(1 ~ 8) /
Direct channel search
(0 ~ 9)
Preset channel selection
(1 ~ 8)
Preset channel selection
(1 ~ 8)
SHIFT Switch memory block Switch memory block Switch memory block Switch memory block
EL Display
Buttons
