17720809 A
Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: 201-762-6500
usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: 905-475-4085
ca.denon.com
*Design and speci cations are subject to change without notice.
*“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories.
*DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and
DTS-HD Master Audio are trademarks of DTS, Inc.
*HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
*“Neural” and “Neural Audio” and “Neural Surround” are trademarks of
Neural Audio Corporation.
*NSV is a registered trademark of Analog Devices, Inc.
*Audyssey MultEQ
®
XT is a registered trademark of Audyssey Laboratories.
Audyssey Dynamic EQ™ is a trademark of Audyssey Laboratories.
Audyssey Dynamic Volume™ is a trademark of Audyssey Laboratories.
*Microsoft, Windows Media, Windows Vista, and Windows are either
registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
*HDCD
®
, High Definition Compatible Digital
®
and Microsoft
®
are either
registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
*HD RadioTM Technology Manufactured Under License From iBiquity
Digital Corporation. iBiquity Digital, the HD Radio logo, and the HD logo
are registered trademarks of iBiquity Digital Corporation. HD RadioTM is a
trademark of iBiquity Digital Corporation. U.S. and Foreign Patents.
*The XM name and related logo are registered trademarks of XM Satellite
Radio reserved.
*XM Ready
®
is a registered trademark of XM Satellite Radio Inc.
*iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
Main Speci cations
Power ampli er section Preampli er section
Rated output
*THD gures are power amp stage values.
Input sensitivity/impedance
PHONO (MM) 2.5 mV
Front L/R 140 W + 140 W
Audio inputs 200 mV / 12 kohms
(8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
(except for EXT. IN [SW, S, SB], CD, PHONO, V. AUX)
180 W + 180 W 200 mV / 47 kohms
(6 ohms, 1 kHz, THD 0.7%)
(EXT. IN [SW, S, SB], CD, PHONO, V. AUX)
Center 140 W
Output level/Load impedance
(8 ohms, 20 Hz - 20 kHz, THD 0.05 %) Audio outputs 1.2 V
180 W
(6 ohms, 1 kHz, THD 0.7%) FM section
Tuning frequency range 87.5 - 107.9 MHz
Surround L/R 140 W + 140 W
Usable sensitivity 1.5 μV (14.8 dBf)
(8 ohms, 20 Hz - 20 kHz, THD 0.05 %)
180 W + 180 W AM section
(6 ohms, 1 kHz, THD 0.7%) Tuning frequency range 530 - 1710 kHz
Usable sensitivity 20 μV
Surround Back L/R 140 W + 140 W
(Front Height / Front Wide) (8 ohms, 20 Hz - 20 kHz, THD 0.05 %) General
180 W + 180 W Power supply AC 120 V, 60 Hz
(6 ohms, 1 kHz, THD 0.7%) Power consumption 9.5 A (Standby 0.1 W)
Dimensions
(W x H x D)
17-3/32" x 7-43/64" x 16-11/16"
Front Height L/R 140 W + 140 W
434 x 195 x 424 mm
(Front Wide) (8 ohms, 20 Hz - 20 kHz, THD 0.05 %) Weight 42 lbs 2oz, 19.1 kg
180 W + 180 W
(6 ohms, 1 kHz, THD 0.7%)
Connectivity & Future-ready Expandability
• XM and Sirius satellite radio ready
• HD Radio built-in
• Mass storage support USB for audio and
photo playback (MTP compatible)
• 4 source/4 zone capability
• Power ampli er assign for zone 2 or 3
• Bi-amp or Bi-wiring capability
• Zone 4 optical digital audio output
• Audio/video playback and control
for iPod with optional dock (ASD-11R)
• USB digital direct connection for iPod/iPhone
(audio only)
Ease-of-use
• Advanced GUI, superimposed on HDMI
(up to 1080p)
• Dual HDMI outputs enable simultaneous output to
a video projector and a flat panel HDTV
• Audyssey Dynamic Volume, for real-time volume
adjustment to eliminate annoying volume jumps
• Audyssey Dynamic EQ adjusts for optimum frequency
response and surround volume levels on a moment-
by-moment basis
• Audyssey MultEQ XT Auto setup and Room EQ
• 2-line uorescent display on front panel
• Three Quick Select Buttons
• EL backlit pre-memory & learning remote control unit
and 2nd zone remote control unit included
• Auto surround mode
• Audio level memory, capable of correcting di erent
signal levels for each input device
• Variable subwoofer crossover switching
Custom Integration Features
• Remote Installer Access via DPMS
• PC setup via Ethernet (Web setup)
• AMX, Crestron third party IP control support with RS-
232C port
• 150mA Trigger output
• IR Remote in/out ports
Others
• HDMI (ver.1.3a supporting HD audio decoding, Deep
Color, x.v.Color, Auto Lipsync) (repeater)
• Supports HDMI CEC

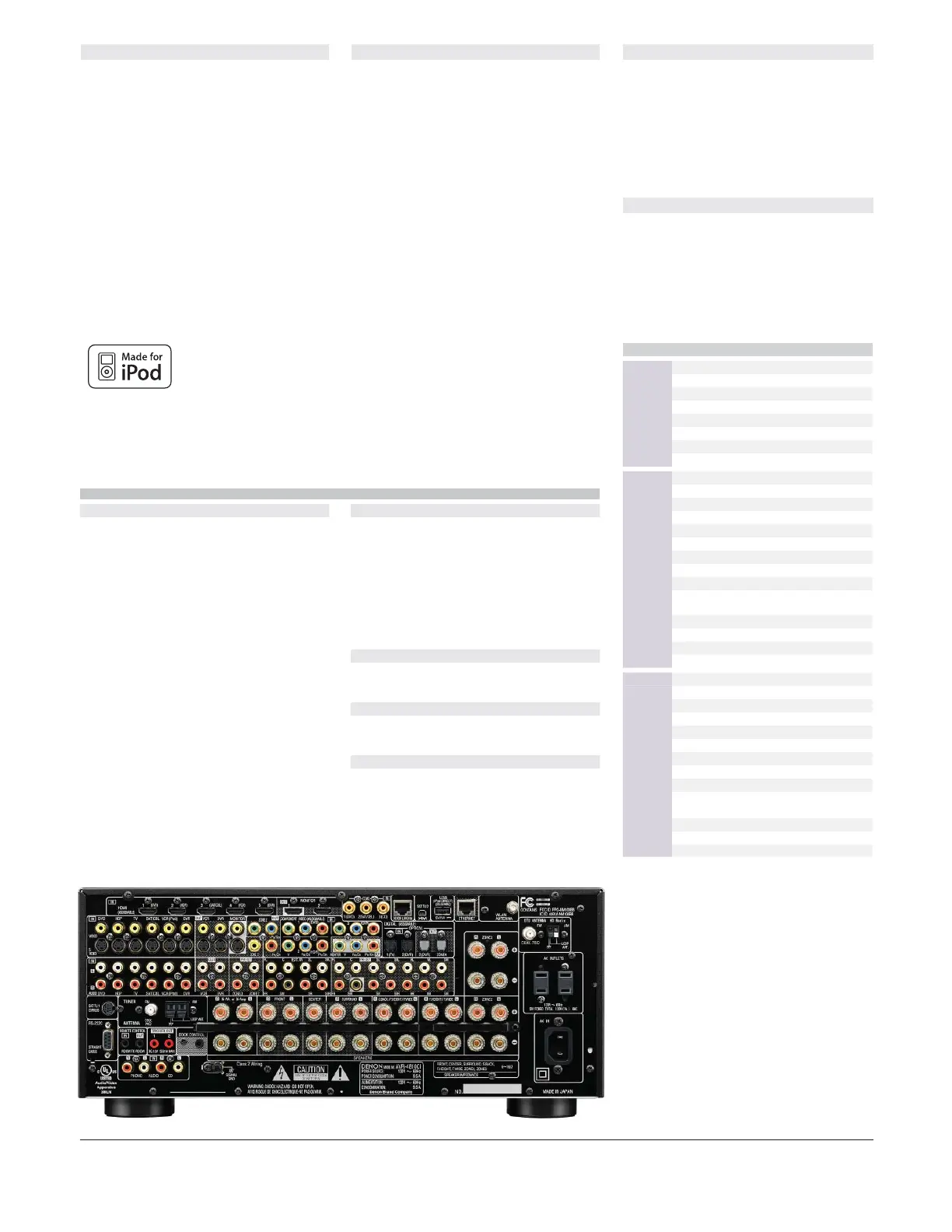

Ports
In HDMI (including 1 on front panel) x 6
Component x 3
S-Video x 7
Composite (Video) x 7
Analog Audio (Tuner included) x 10
Analog EXT. Input 7.1ch
Digital Optical x 3
Digital Coaxial x 3
Out HDMI Monitor x 2
Component Monitor x 1
Component (Zone2) x 1
S-Video Monitor x 1
S-Video x 2
Composite Monitor x 1
Composite x 2
Composite (Zone2) x 1
Analog Audio REC x 2
Audio Preout
x 3
(Zone2/ Zone3/ 7.3ch/ 4ch [F. Height /F. Wide])
DENON LINK x 1
Digital Optical x 1
Digital Optical (Zone4) x 1
Phones x 1
Others Microphone Port x 1
Dock Control Port x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
HD Radio (FM) x 1
HD Radio (AM) x 1
Sirius Connector x 1
XM Ready x 1
Ethernet x 1
Wi-Fi Rod antenna x 1
USB (front panel or back panel) x 2
RS-232C x 1
Remote Control In/Out 1 / 1
DC12V 150mA MAX. trigger out x 2
