Instruction for removal of DIGITAL UNIT ASSY and DAC UNIT ASSY

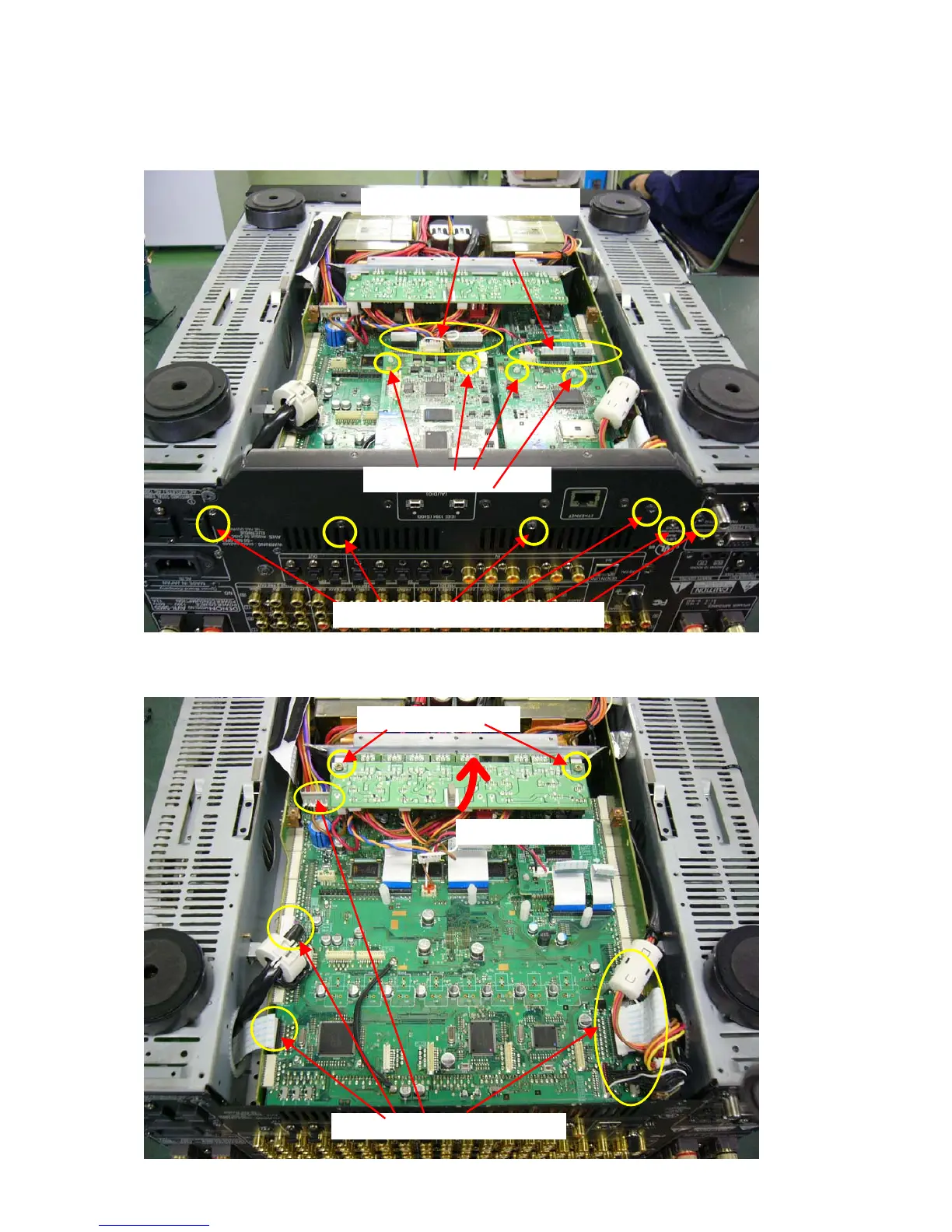

(1) Remove screws, detach the BOTTOM COVER (Not shown in the figure)
(2) Remove 6 screws from BACK PANEL, and remove FFCs and cables
(3) Remove 4 Card holders, then detach the Rear Plate/Ethernet/IEEE1394 assy unit.
Remove the FFCs and cables
Remove 4 Card holders
Remove 6 screws from BACK PANEL
(4) Remove FFCs and Cables
(5) Remove 2 screws and incline the PWB.
Remove 2 screws
Incline the PWB
Remove the FFCs and Cables
To Next Page
