AVR-1709/1609/1519/1509/689/589, AVC-1509

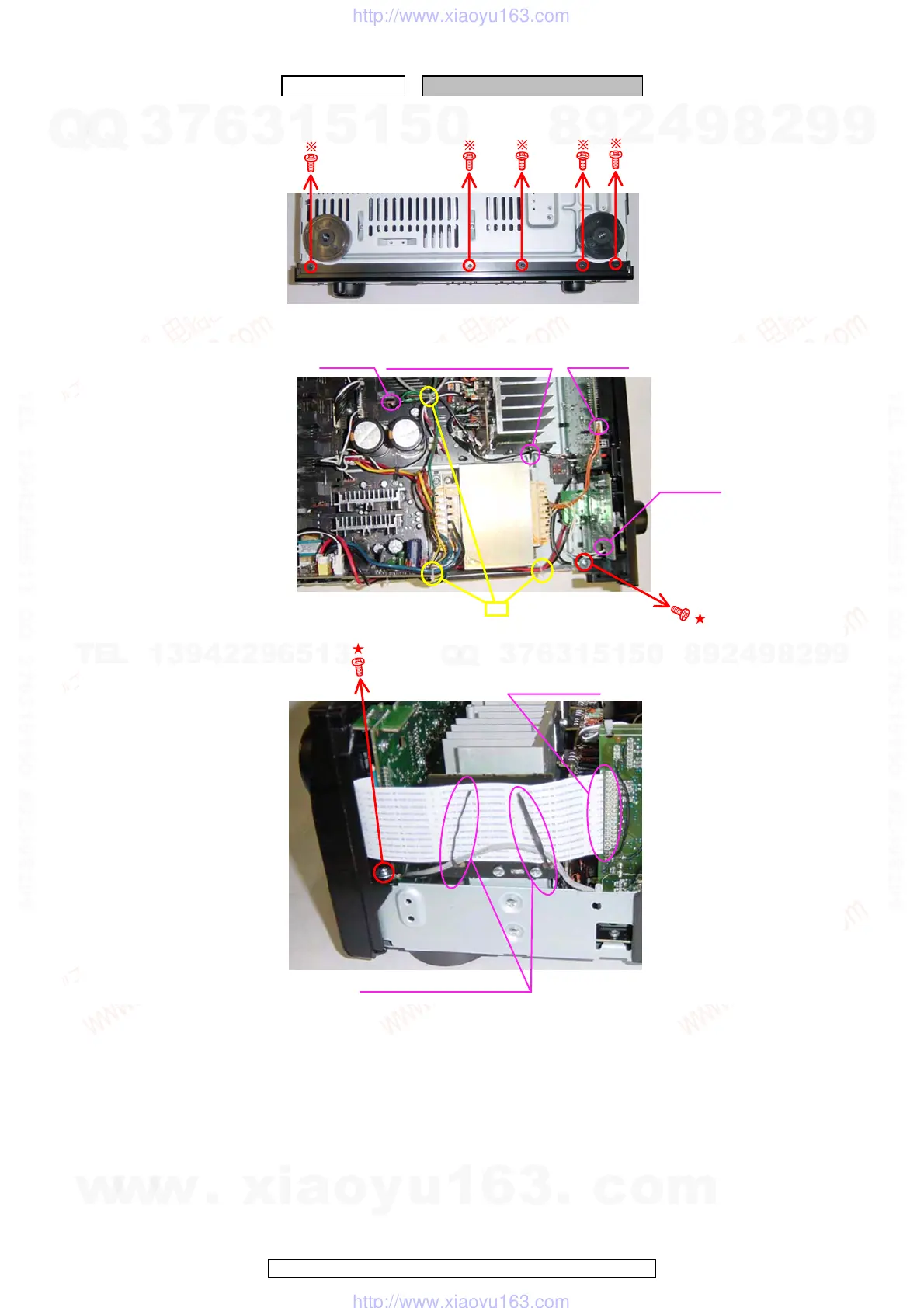

1. PANEL FRONT SUB ASSY
(1) Remove the screws.（ねじをはずす。）
(2) Disconnect the connector wires and remove the screw.（コネクタワイヤーとねじをはずす。）
proceeding (手順): CABINET TOP → PANEL FRONT SUB ASSY
Bottom view
CORD HOLDER : Loose
CP541
CP302
CN301
Top view
cut
CORD HOLDER : Loose
FFC CABLE
Picture C
