AVR-1709/1609/1519/1509/689/589, AVC-1509
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s
M30626FHPFP (IC804)

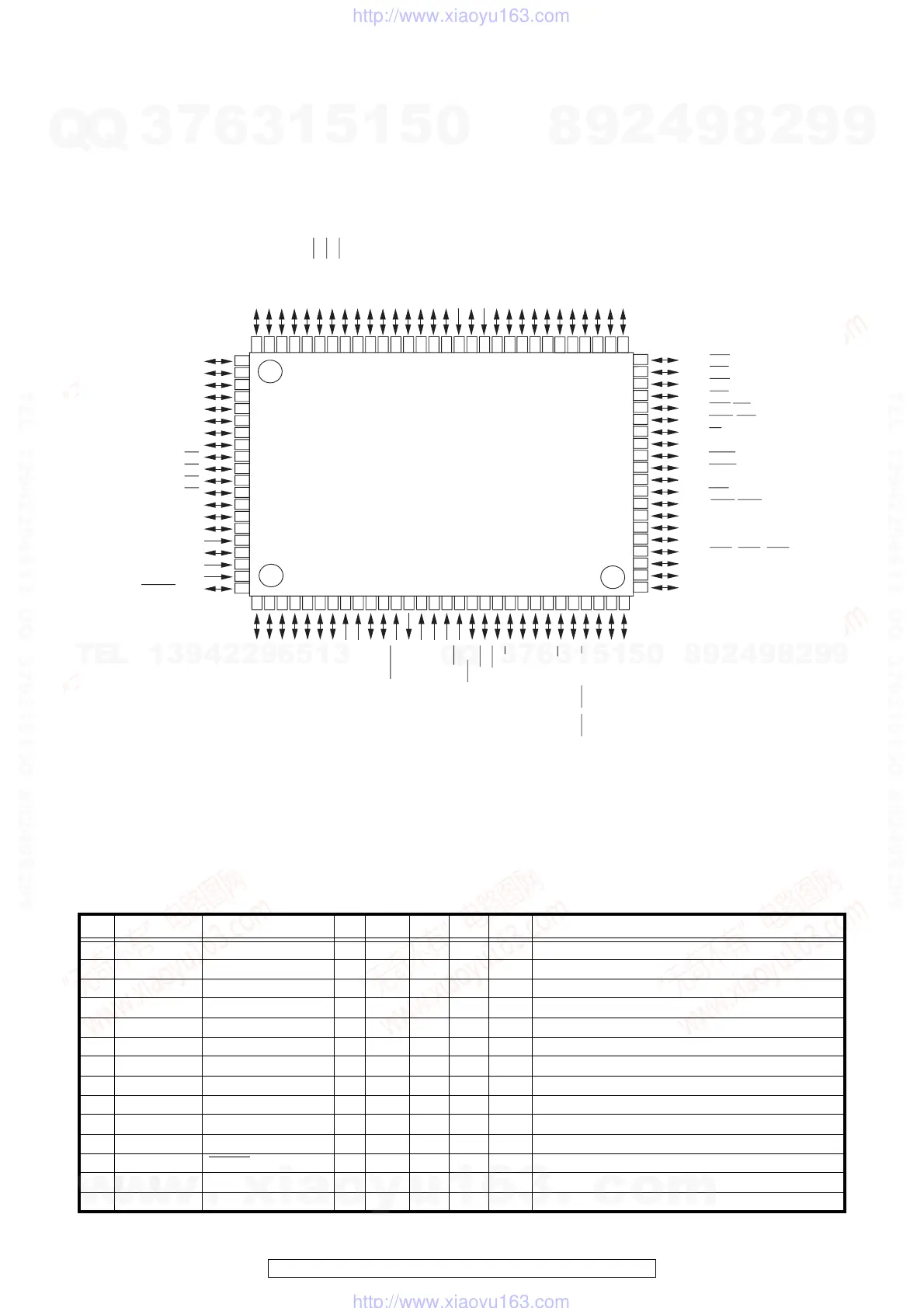

M30626FHPFP Terminal Function
Pin Port Name I/O Type Res Stby Stop Description
1 P96/SOUT4 SW_SUM O C Z O/L O/L SW Supplement Control
2 P95/CLK4 iPod DET I - Z I I iPod Dock Detect (Det="H")
3 P94/TB4 2090_CLK O C Z O/L O/L Expander (IC1003: BU2090) Control
4 P93/TB3 2090_DATA O C Z O/L O/L Expander (IC1003: BU2090) Control
5 P92/SOUT3 SHARC_SDOUT O C Z O/L O/L DSP (IC801: ADSP21367) Control
6 P91/SIN3 SHARC_SDIN I - Z O/L O/L DSP (IC801: ADSP21367) Control
7 P90/CLK3 SHARC _SCLK O C Z O/L O/L DSP (IC801: ADSP21367) Control
8 BYTE BYTE - - - - - Connect to GND
9 CNVCS CNVSS I - Z I I ROM Update Control
10 P87 1328 CE O C Z O/L O/L CODEC (IC808: ADAU1328) Control
11 P86 DYNAMIC_R_LED O C Z O/L O/L DYNAMIC VOL LED Control
12 RESET RESET
I - L I I RESET
13 XOUT XOUT O - - O/L O/L Clock (Output)
14 VSS VSS - - - - -
1 2 3 4 5 6 7 8 9 101112131415161718192021222324252627282930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
515253545556575859606162636465666768697071727374757677787980
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
1
00
P0_0/AN0_0/D0
P0_1/AN0_1/D1
P0_2/AN0_2/D2
P0_3/AN0_3/D3
P0_4/AN0_4/D4
P0_5/AN0_5/D5
P0_6/AN0_6/D6
P0_7/AN0_7/D7
P1_0/D8
P1_1/D9
P1_2/D10
P1_3/D11
P1_4/D12
VREF
AVSS
VCC1
XIN
XOUT
VSS
RESET
CNVSS
P8_7/XCIN
P8_6/XCOUT
BYTE
P2_0/AN2_0/A0(/D0/-)
P2_1/AN2_1/A1(/D1/D0)
P2_2/AN2_2/A2(/D2/D1)
P2_3/AN2_3/A3(/D3/D2)
P2_4/AN2_4/A4(/D4/D3)
P2_5/AN2_5/A5(/D5/D4)
P2_6/AN2_6/A6(/D6/D5)
P2_7/AN2_7/A7(/D7/D6)
P3_0/A8(/-/D7)
P3_1/A9
P3_2/A10
P3_3/A11
P3_4/A12
P3_5/A13
P3_6/A14
P3_7/A15
P4_0/A16
P4_1/A17
P4_2/A18
P4_3/A19
P7_4/TA2OUT/W
P7_6/TA3OUT
P5_6/ALE
P7_7/TA3IN
P5_5/HOLD
P5_4/HLDA
P5_3/BCLK
P5_2/RD
VCC2
VSS
P5_7/RDY/CLKOUT
P4_5/CS1
P4_6/CS2
P4_7/CS3
AVCC
P6_3/TXD0/SDA0
P6_5/CLK1
P6_6/RXD1/SCL1
P6_7/TXD1/SDA1
P6_1/CLK0
P6_2/RXD0/SCL0
P10_0/AN0
P10_1/AN1
P10_2/AN2
P10_3/AN3
P9_3/DA0/TB3IN
P9_4/DA1/TB4IN
P9_5/ANEX0/CLK4
P9_6/ANEX1/SOUT4
P9_1/TB1IN/SIN3
P9_2/TB2IN/SOUT3
P8_0/TA4OUT/U
P6_0/CTS0/RTS0
P6_4/CTS1/RTS1/CTS0/CLKS1
P7_2/CLK2/TA1OUT/V
P8_2/INT0
P7_1/RXD2/SCL2/TA0IN/TB5IN
(1)
P8_3/INT1
P8_5/NMI
P9_7/ADTRG/SIN4
P4_4/CS0
P5_0/WRL/WR
P5_1/WRH/BHE
P9_0/TB0IN/CLK3
P7_0/TXD2/SDA2/TA0OUT
(1)
P8_4/INT2/ZP
P8_1/TA4IN/U
P7_3/CTS2/RTS2/TA1IN/V
P7_5/TA2IN/W
P1_5/D13/INT3
P1_6/D14/INT4
P1_7/D15/INT5
P10_7/AN7/KI3
P10_6/AN6/KI2
P10_5/AN5/KI1
P10_4/AN4/KI0
M30626FHPFP
NOTES:
1. P7_0 and P7_1 are N channel open-drain output pins.
