Denon AVR-750 User Manual

LAST FUNCTION MEMORY
* This unt is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the
power is switched off.
This function eliminates the need to perform complicated resettings when the power Is switched on.
* This unit is also equipped with 2 back-up memory. This function provides approximately one week of memory storage with the power cord
disconnected.

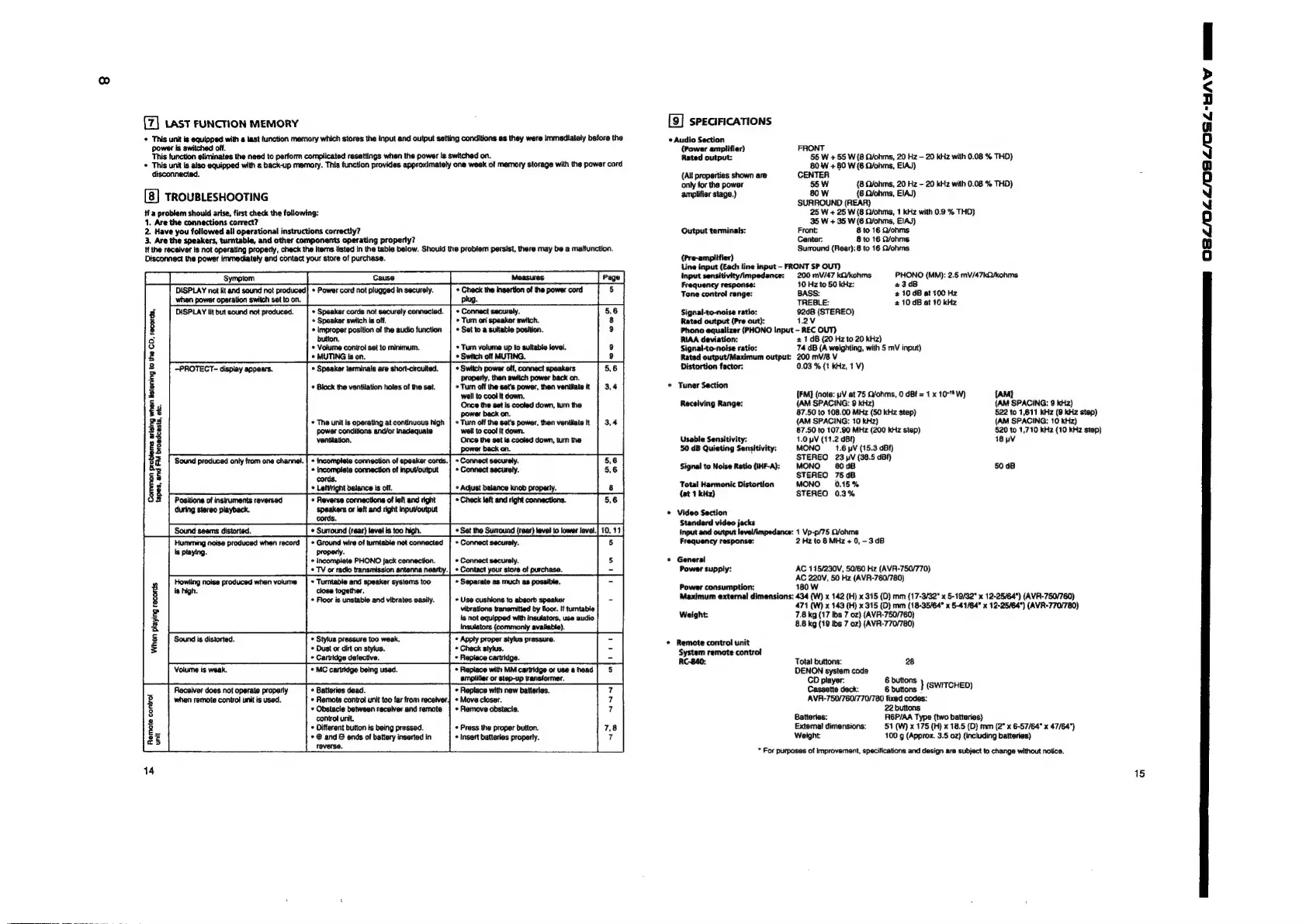

TROUBLESHOOTING
if a problem should arise, first check the following:
1. Are the connections correct?
2. Have you followed all operational instructions correctly?
3. Are the speakers, turntable, and other components operating properly?
if the receiver is not operating property, chack the items listed In the table below. Should the problem persist, there may be a malfunction.
Disconnect the power immediately and contact your store of purchase.
DISPLAY not lit and sound not produced} » Power cord not plugged In securely. © Check the insertion of the power cord
when power operation switch set to on. plug.
DISPLAY lit but sound not produced. + Speaker cords not securely connected. | » Connect securely.
* Speaker switch is off. * Tum on speaker switch.
* Improper position of the audio function | * Set to a suitable position.
button.
* Volume control set to minimum. * Tum volume up to suitable level.
* MUTING Is on. © Switch off MUTING.
[Page |
5.6
8
9
9
9
-PROTECT-~ dispiay appears. © Speaker terminals are short-cicuited. * Switch power off, connect speakers
property, then switch power back on.
* Block the ventilation holes of the set. * Turn off the set's power, then ventilate it
well to cool down.
Once the set is cooled down, burn the
power back on.
* The unit is operating at continuous high | + Turn off the set's power, then ventiate it
power conditions and/or Inadequate weil to cool it down.
. Once the set is cooled down, turn the
power back on.
Sound produced only from one channel. | + incomplete connection of speaker cords.| + Connect securely.
* Incomplete connection of inpuvoutput | » Connect securely.
* Adjust balance knob properly.
Common problems when kstening to the CO, records,
Positions of instruments reversed Reverse connections of left and right * Check left and right connections.
during stereo playback. ‘speakers or left and right input/output
cords.
© Surround (rear) leval is too high. * Sat the Surround (rear) level to lower level.
Humming noise produced when record | * Ground wire of timntable not connected | » Connect securely.
's playing. properly.
* Incomplete PHONO jack connection.
+ TV or radio transmission antenna nearby.| + Contact your store of purchase.
8
Howling noise produced when volume | * Turntable and speaker systems too * Separate as much as possible.
* Use cushions to absorb speaker
vibrations tansmitted by floor. If turntabie
fs not equipped with insulators, use audio
7
7
7
7.8
7
* Connect securely.
° Replace cartridge.
* MC cartridge being used. * Reptace with MM cartridge or use a head
amplifier or step-up transformer.
Raceiver does not operate properly * Batteries dead. * Replace with new batteries.
when remote control unit is used. © Remote control unit too far from recetver{ * Move closer.
+ Obstacle between receiver and remote | * Remove obstacle.
contro! unit.
* Different button is being pressed.
* ® and © ends of battery inserted in
reverse.
8 | tenon. close together.
3 * Floor is unstable and vibrates easily.
z
>
a insulators (commonty avaliable).
§ Sound is distorted. * Stylus pressure too weak. © Apply proper stylus pressure.
= ¢ Dust or dirt on stylus. * Check stylus.
* Cartridge defective.
» Press the proper button.
* Insert batteries properly.
Remote contro! unit
14
[9] SPECIFICATIONS
Line input (Each line input - FRONT SP OUT)
input sensitivity/impedance: 200 mV/47 kO/kohms
Frequency response: 10 Hz to 50 kHz:
Tone contro! range: BASS:
TREBLE:
Signal-to-noise ratio: 92dB (STEREO)
Rated output (Pre out): 1.2V
Phono equalizer (PHONO Input - REC OUT)
RIAA deviation:
1o-noise ratio:
Rated output/Maximum output: 200 mV/8 V
Distortion factor: 0.03 % {t kHz, 1 V)
+ 1 dB (20 Hz to 20 kHz)
74 dB (A weighting, with 5 mV input)
* Audio Section
(Power amplifier} FRONT
Rated output: 55 W + 55 W (8 Q/ohms, 20 Hz — 20 kHz with 0.08 % THD)
80 W + 80 W (6 N/ohms, EIA)
{All properties shown are CENTER =
only for the power 55 W {8 Diohms, 20 Hz ~ 20 kHz with 0.08 % THD}
amplifier stage.) 80W {6 D/ohms, EtAJ)
SURROUND (REAR)
25 W + 25 W(8 Dohms, 1 kHz with 0.9 % THD)
35 W + 35 W(6 Q/ohms, EIAJ)
Output terminals: Front: 8 to 16 Q/ohms
Center. 8 to 16 Q/ohms
Surround (Rear): 8 to 16 Q/ohms
{Pre-amplifier)
PHONO (MM): 2.5 mV/47kQ/kohms
+3dB
+ 10 dB at 100 Hz
+ 10 dB at 10 kHz
Tuner Section
[FM} (note: yV at 75 Q/ohms, 0 dBE = 1 x 10° W) [AM]
Receiving Range: {AM SPACING: 9 kHz) {AM SPACING: 9 kHz)
87.50 to 108.00 MHz (50 kHz step) 522 to 1,611 kHz (9 kHz step)
(AM SPACING: 10 kHz) (AM SPACING: 10 kHz)
87.50 to 107.90 MHz (200 kHz step) 520 to 1,710 kHz (10 kHz step)
Usable Sensitivity: 1.0 pV (11.2 dBA) 18 pV
50 dB Quieting Sensitivity: _ MONO 1.6 pV (15.3 dBf)
STEREO 23 pV (38.5 dBf}
Signal to Noise Ratio (IHF-A): MONO 8048 50 dB
STEREO 7548
Total Harmonic Distortion MONO 0.15%
{at 1 kHz) STEREO 0.3%
Video Section
Standard video jacks
input and output level/impedance: 1 Vp-p/75 Q/ohms
Frequency response:
2 Hz to 8 MHz + 0,-30B
General
Power supply: AC 115/230V, 50/60 Hz (AVR-750/770)
AC 220V, 50 Hz (AVR-760/780)
Power consumption: 180 W
Maximum external dimensions: 434 (W) x 142 (H) x 315 (D) mm (17-3/32" x 5-19/32" x 12-25/64") (AVR-750/760)
471 (W) x 143 (H) x 315 (D) mm (18-35/64" x 5-41/64" x 12-25/64") (AVA-770/780)
Weight: 7.8 kg (17 Ibs 7 oz) (AVR-750/760)
8.8 kg (19 Ibs 7 oz) (AVR-770/780)
Remote control unit
System remote contro!
RC-840; Total buttons: 28
DENON system code
Gasoote dock buttons } (SWITCHED)
AVA-750/760/770/780 fixed codes:
22 buttons
Batteries: RGP/AA Type (two batteries)
Extemal dimensions: 51 (W) x 175 (H) x 18.5 (D) mm (2" x 6-57/64" x 47/64")
Weight: 100 g (Approx. 3.5 02) (including batteries)
* For purposes of improvement, specifications and design ara subject to change without notice.
15
