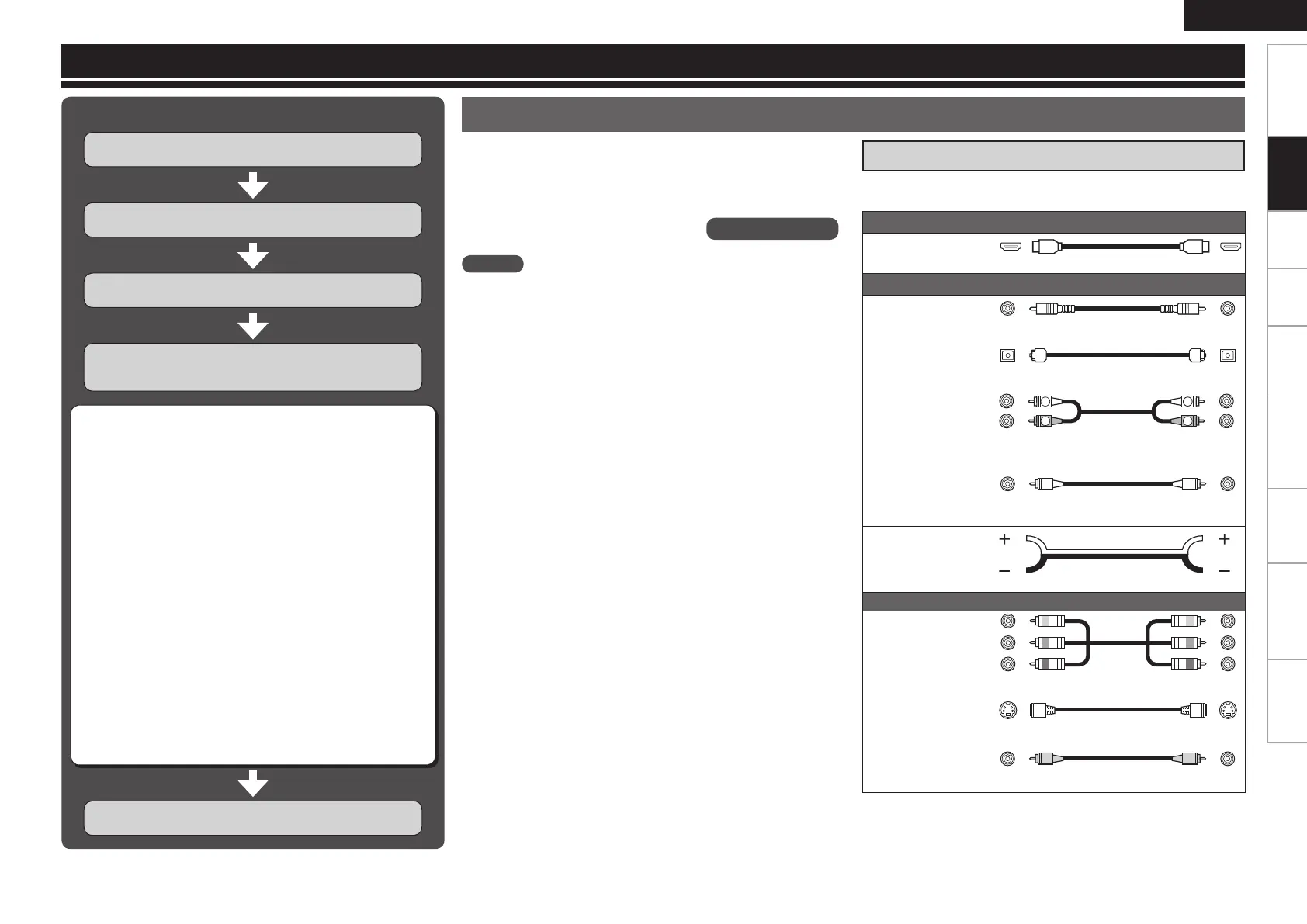

ENGLISH
Getting Started
Connections Playback Remote Control Information Troubleshooting
SpecificationsMulti-ZoneSettings
Connections for all compatible audio and video signal formats
are described in this owner’s manual. Please select the types of
connections suited for the equipment you are connecting.
After connections are completed, certain settings must be made on
the receiver. Make the settings indicated
Set as necessary
for the individual items.
Select the cables according to the equipment being connected.
Important Information
Cables Used for Connections
Audio and video cables
HDMI
connections
HDMI cable
Audio cables
Coaxial digital
connections
Coaxial digital cable
Optical digital
connections
Optical cable
Analog
connections
R
L
R
L
Stereo pin-plug cable
Analog
connections
(monaural, for
subwoofer)
Pin-plug cable
Speaker
connections
Speaker cables
Video cables
Component
video
connections
Component video cable
S-Video
connections
S-Video cable
Video
connections
75 Ω/ohms pin-plug video cable
(White)
(Red)
n HDMI (vpage 12)
n Monitor (TV) (vpage 13)
n Playback Components
Blu-ray Disc player / DVD player (vpage 14)
iPod® (vpage 14)
CD Player (vpage 14)
n Recording Components
DVD Recorder (vpage 15)
Video Cassette Recorder (vpage 15)
n SAT/CABLE Tuner (vpage 15)
n Other Devices
Video Camera / Game Console (vpage 16)
Component with Multi-channel Output connectors
(vpage 16)
SIRIUS Connector (vpage 16)
Antenna terminals (vpage 17)
n Power Cord
Connection Flown
Turning the Power On (vpage 17)
Installing/Setting the Speakers (vpage 10)
Connecting Devices (vpage 12)
(Yellow)
(Green)
(Blue)
(Red)
Connections
NOTE
Do not plug in the power cord until all connections have been
completed.
When making connections, also refer to the operating instructions
of the other components.
Be sure to connect the left and right channels properly (left with left,
right with right).
Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
Connecting the Speakers (vpage 11)
Connections
Connecting Devices not Equipped with HDMI
terminals (vpage 13)

Table of Contents
