Connecting a video component equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• The AVR-1804/884 is equipped with a function for converting video signals.
• The signal connected to the S-Video signal terminal is output to the composite video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.
DVD player or video disc player (VDP)

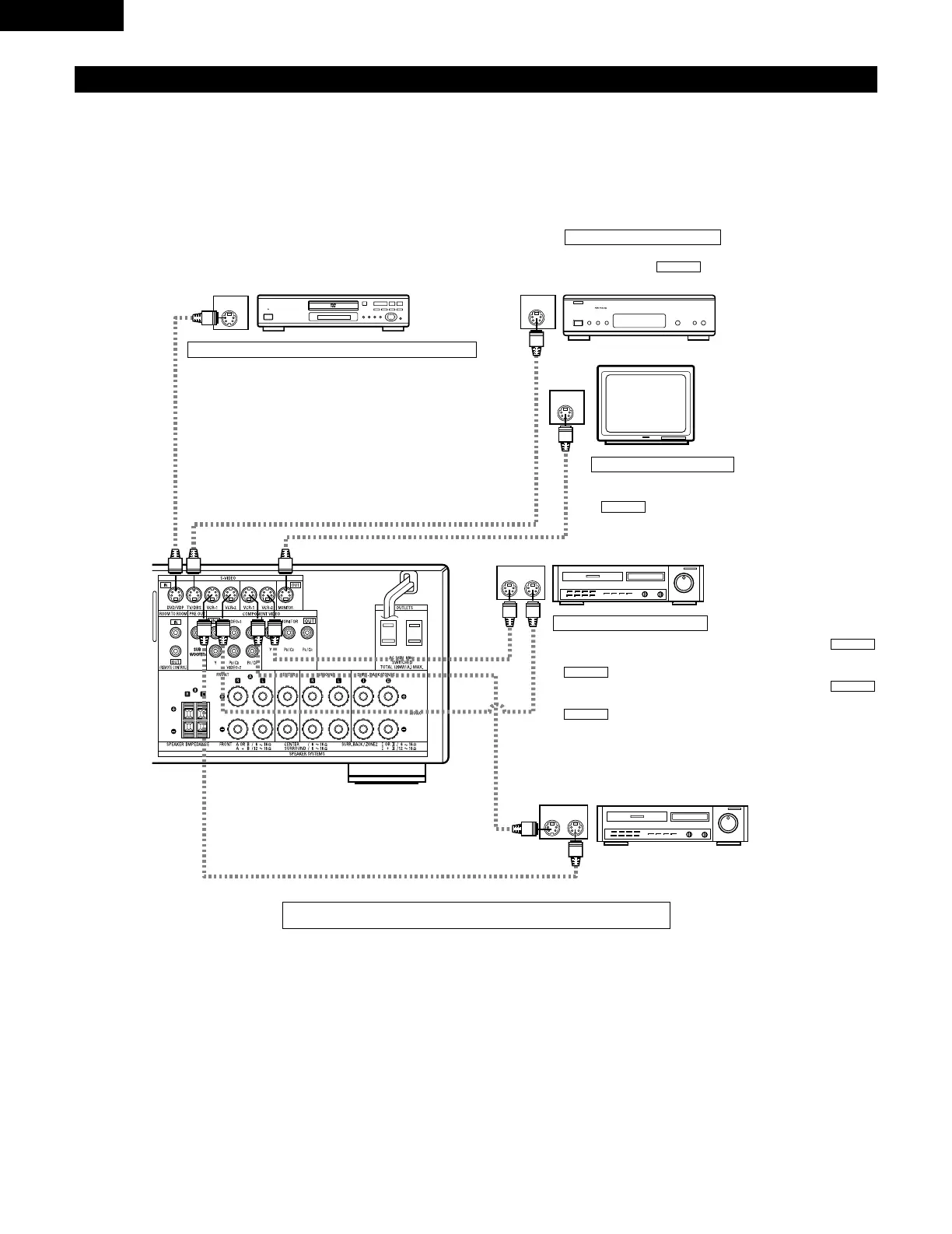

Connecting a DVD player or a video disc player (VDP)
DVD
• Connect the DVD/VDP player’s S-Video output jack to the S-VIDEO
DVD/VDP IN jack using an S-Video connection cord.
• It is also possible to connect a video disc player, DVD/VDP player,
video camcorder, game machine, etc., to the VCR-2 jacks.
Connecting a monitor TV
MONITOR OUT
• Connect the TV’s S video input (S-VIDEO INPUT) to the
MONITOR OUT jack using a S jack connection
cord.
S-VIDEO
Monitor TV
Connecting a TV/DBS tuner
• Connect the TV’s or DBS tuner’s S video output jack (S-VIDEO
OUTPUT) to the TV/DBS IN jack using an S jack
connection cord.
S-VIDEO
TV or satellite broadcast tuner
Video deck 2
Connecting the video decks
• Connect the video deck’s S output jack (S-OUT) to the
VCR-1 IN jack and the video deck’s S input jack (S-IN) to the
VCR-1 OUT jack using S jack connection cords.
• Connect the video deck’s S output jack (S-OUT) to the
VCR-2 IN jack and the video deck’s S input jack (S-IN) to the
VCR-2 OUT jack using S jack connection cords.
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
Video deck 1
Connect the components’ audio inputs and outputs as described on page 11.
