Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.

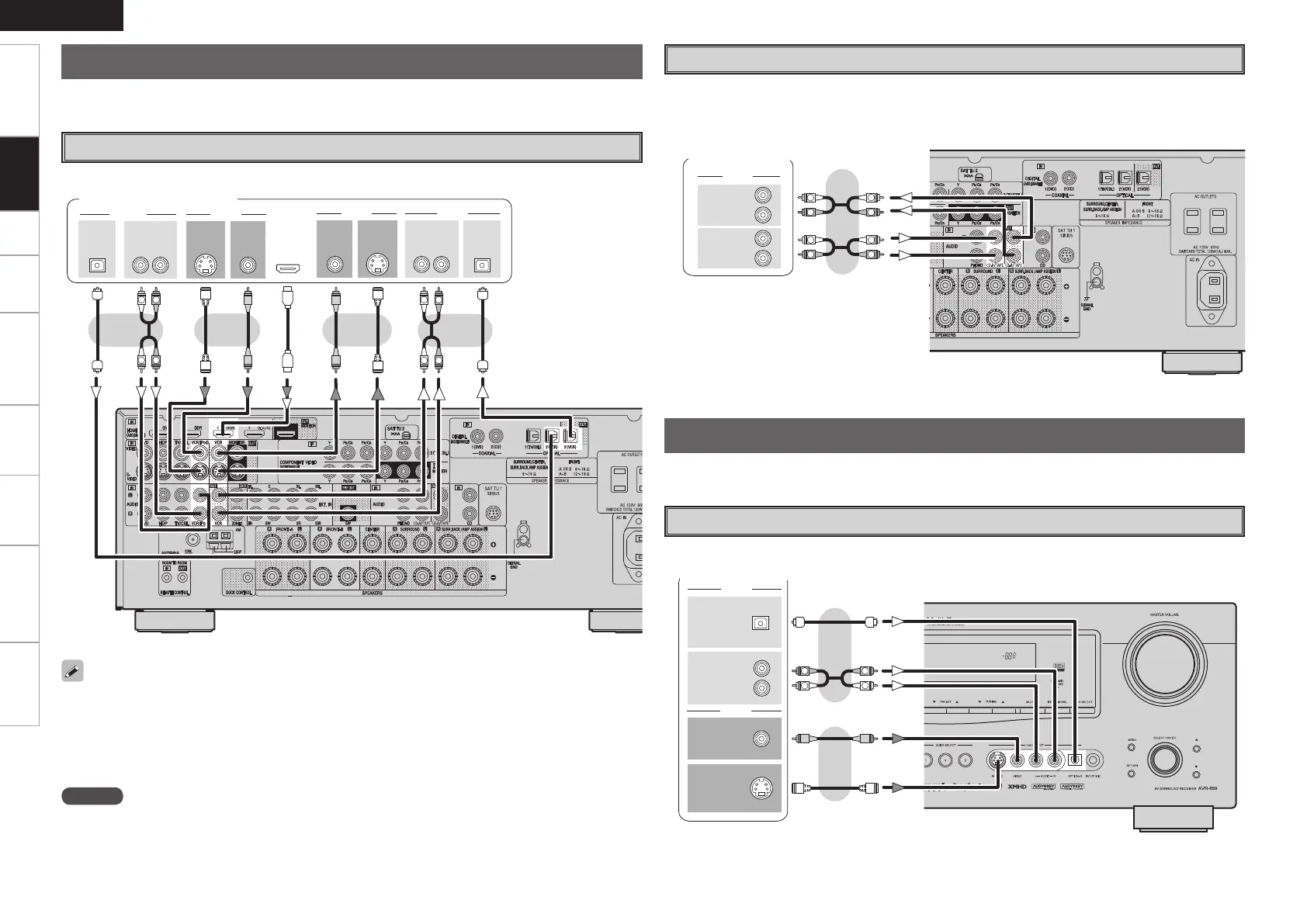

Connecting the Recording Components
R
L
R
L
R
L
R
L
015*$"-
47*%&0
47*%&0
*/
3-
3-
*/*/
065
"6%*0 7*%&0
"6%*07*%&0
065
"6%*0
"6%*0 7*%&0
7*%&0
065
*/
015*$"-
065
065
)%.*
Video Cassette Recorder
Select the terminal to use and connect the device.
Video cassette recorder
• When recording via the AVR-889, the playback device’s cable must be of the same type as the cable used
to connect the AVR-889’s VCR OUT connector.
Example: TV IN → S-Video cable : VCR OUT → S-Video cable
TV IN → Video cable : VCR OUT → Video cable
• When using a component video cable for the video connection, make the settings at menu “Input Setup”
– “Assign” – “Component In” (vpage34).
NOTE
Do not connect the output of the component connected to the AVR-889’s OPTICAL2 output connector to
any input connector other than OPTICAL2.
R
L
R
L
R
L
R
L
3
-
3
-
*/
"6%*0
"6%*0
065
"6%*0
CD Recorder / MD Recorder / Tape Deck
Make analog connections if you wish to record analog audio signals, or digital connections if you wish to
record digital audio signals, depending on the types of connectors on the components being used.
CD recorder /
MD recorder /
Tape deck
R
L
R
L
47*%&0
065
"6%*0
7*%&0
7*%&0
065
065
015*$"-
"6%*0
-
3
065
Video Camera / Game Console
Video camera /
Game console
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Connections to Other Devices
Connections
