Getting Started Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications
Multi-zone

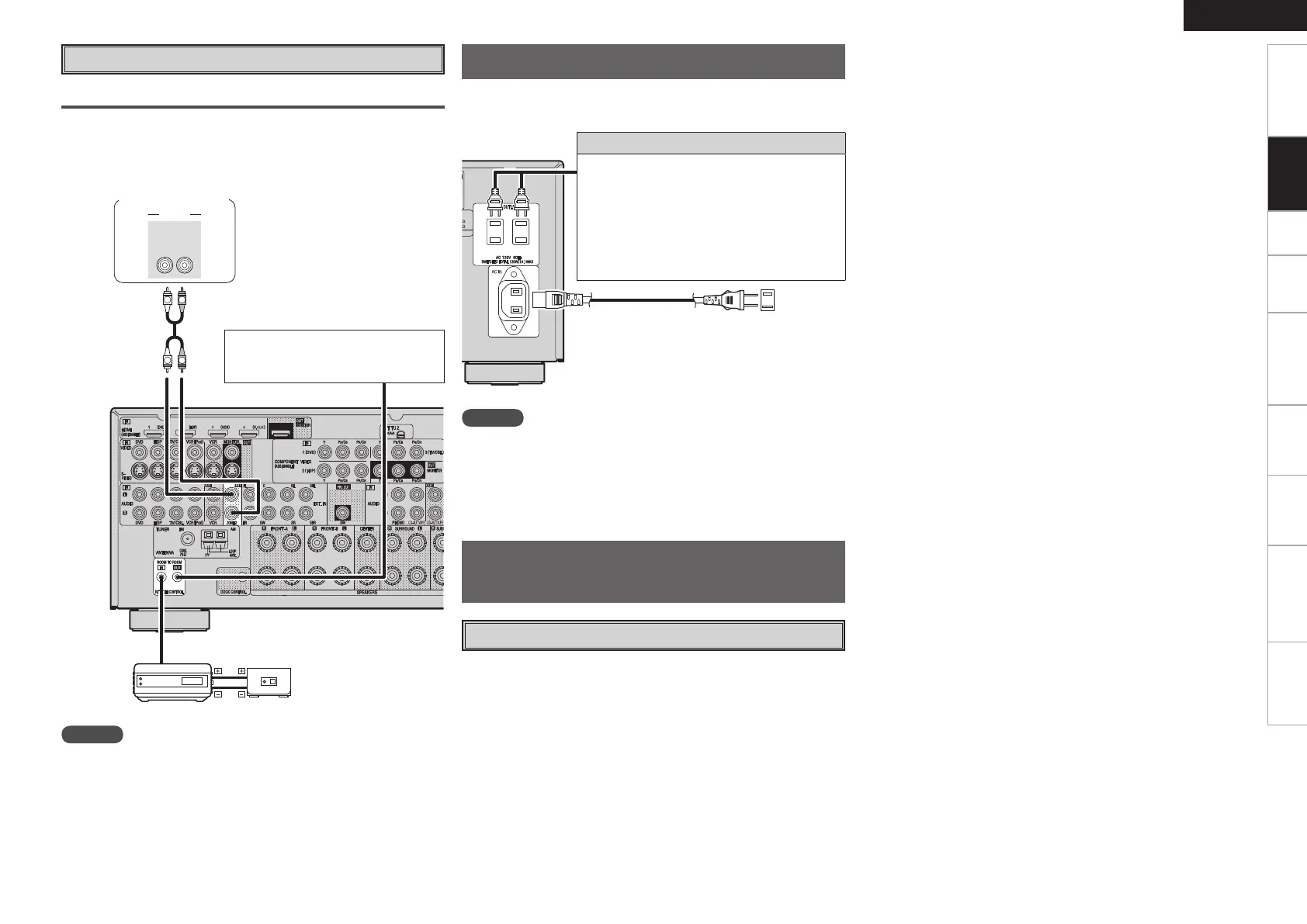

ZONE2 Pre-out Connections
If another pre-main (integrated) amplifier is connected, the ZONE2 out
connectors can be used to play a different program source in ZONE2
at the same time (vpage 60 ~ 62).
R
L
R
L
"6%*0
3-
*/
"6%*0
"69
065
Pre-main amplier
(ZONE2)
Input
Output
Infrared
retransmitter
Infrared
sensor
Extension jack for future use.
(Connect devices corresponding with
room to room function to this jack.)
NOTE
• For the audio output, use high quality pin-plug cords so that no
induction humming or noise is produced.
• For instructions on installing and operating separately sold devices,
refer to the respective devices’ operating instructions.
• To conduct multi-zone playback, see “Amp Assign / Multi-zone
Connections and Operations” (vpage 60 ~ 62).
NOTE
• Insert the AC plugs securely. Incomplete connections could cause
noise.
• Only use the AC outlets to plug in audio equipment. Do not use
them as power supplies for hairdryers or anything other than audio
equipment.
Wait until all connections have been completed before connecting the
power cord.
To household
power outlet
(AC 120 V, 60 Hz)
Power cord
(supplied)
Connection to the AC outlets
• These outlets supply power to external audio
equipment.
• The power supplied from these outlets turns
on and off together with the set’s power
switch.
• Audio equipment with a total power
consumption of 120 W (1 A) can be
connected.
Connecting the Power Cord
Turning the Power On (vpage 46)
Once Connections are
Completed
Connections
To Next Page
