AVR-2802/982
40

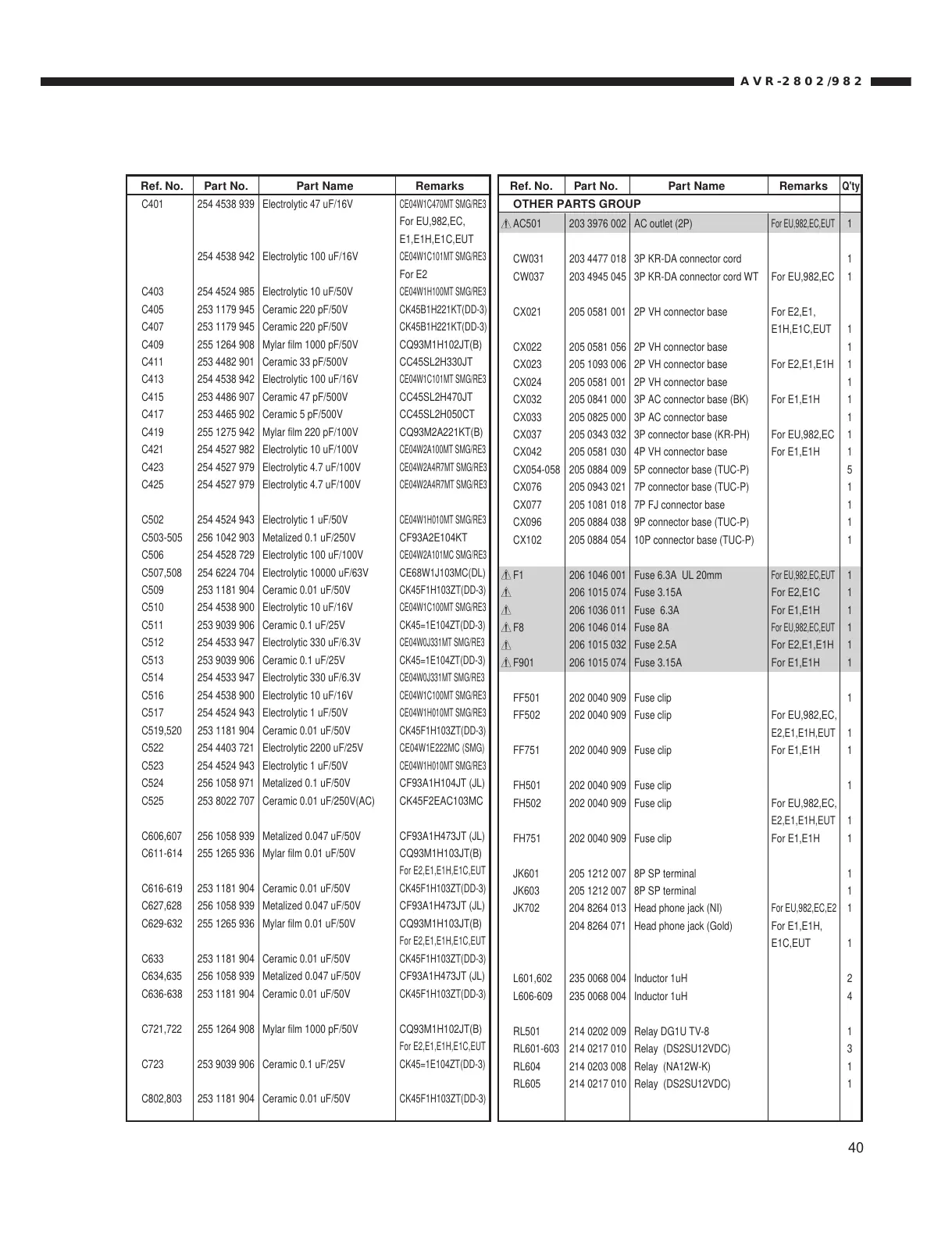

Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks Q'ty
OTHER PARTS GROUP
AC501 203 3976 002 AC outlet (2P) For EU,982,EC,EUT 1
CW031 203 4477 018 3P KR-DA connector cord 1
CW037 203 4945 045 3P KR-DA connector cord WT For EU,982,EC 1
CX021 205 0581 001 2P VH connector base For E2,E1,
E1H,E1C,EUT 1
CX022 205 0581 056 2P VH connector base 1
CX023 205 1093 006 2P VH connector base For E2,E1,E1H 1
CX024 205 0581 001 2P VH connector base 1
CX032 205 0841 000 3P AC connector base (BK) For E1,E1H 1
CX033 205 0825 000 3P AC connector base 1
CX037 205 0343 032 3P connector base (KR-PH) For EU,982,EC 1
CX042 205 0581 030 4P VH connector base For E1,E1H 1
CX054-058 205 0884 009 5P connector base (TUC-P) 5
CX076 205 0943 021 7P connector base (TUC-P) 1
CX077 205 1081 018 7P FJ connector base 1
CX096 205 0884 038 9P connector base (TUC-P) 1
CX102 205 0884 054 10P connector base (TUC-P) 1
F1 206 1046 001 Fuse 6.3A UL 20mm For EU,982,EC,EUT 1
206 1015 074 Fuse 3.15A For E2,E1C 1
206 1036 011 Fuse 6.3A For E1,E1H 1
F8 206 1046 014 Fuse 8A For EU,982,EC,EUT 1
206 1015 032 Fuse 2.5A For E2,E1,E1H 1
F901 206 1015 074 Fuse 3.15A For E1,E1H 1
FF501 202 0040 909 Fuse clip 1
FF502 202 0040 909 Fuse clip For EU,982,EC,
E2,E1,E1H,EUT 1
FF751 202 0040 909 Fuse clip For E1,E1H 1
FH501 202 0040 909 Fuse clip 1
FH502 202 0040 909 Fuse clip For EU,982,EC,
E2,E1,E1H,EUT 1
FH751 202 0040 909 Fuse clip For E1,E1H 1
JK601 205 1212 007 8P SP terminal 1
JK603 205 1212 007 8P SP terminal 1
JK702 204 8264 013 Head phone jack (NI)
For EU,982,EC,E2 1
204 8264 071 Head phone jack (Gold) For E1,E1H,
E1C,EUT 1
L601,602 235 0068 004 Inductor 1uH 2
L606-609 235 0068 004 Inductor 1uH 4
RL501 214 0202 009 Relay DG1U TV-8 1
RL601-603 214 0217 010 Relay (DS2SU12VDC) 3
RL604 214 0203 008 Relay (NA12W-K) 1
RL605 214 0217 010 Relay (DS2SU12VDC) 1
C401 254 4538 939 Electrolytic 47 uF/16V
CE04W1C470MT SMG/RE3
For EU,982,EC,
E1,E1H,E1C,EUT
254 4538 942 Electrolytic 100 uF/16V
CE04W1C101MT SMG/RE3
For E2
C403 254 4524 985 Electrolytic 10 uF/50V
CE04W1H100MT SMG/RE3
C405 253 1179 945 Ceramic 220 pF/50V CK45B1H221KT(DD-3)
C407 253 1179 945 Ceramic 220 pF/50V CK45B1H221KT(DD-3)
C409 255 1264 908 Mylar film 1000 pF/50V CQ93M1H102JT(B)
C411 253 4482 901 Ceramic 33 pF/500V CC45SL2H330JT
C413 254 4538 942 Electrolytic 100 uF/16V
CE04W1C101MT SMG/RE3
C415 253 4486 907 Ceramic 47 pF/500V CC45SL2H470JT
C417 253 4465 902 Ceramic 5 pF/500V CC45SL2H050CT
C419 255 1275 942 Mylar film 220 pF/100V CQ93M2A221KT(B)
C421 254 4527 982 Electrolytic 10 uF/100V
CE04W2A100MT SMG/RE3
C423 254 4527 979 Electrolytic 4.7 uF/100V CE04W2A4R7MT SMG/RE3
C425 254 4527 979 Electrolytic 4.7 uF/100V CE04W2A4R7MT SMG/RE3
C502 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C503-505 256 1042 903 Metalized 0.1 uF/250V CF93A2E104KT
C506 254 4528 729 Electrolytic 100 uF/100V
CE04W2A101MC SMG/RE3
C507,508 254 6224 704 Electrolytic 10000 uF/63V CE68W1J103MC(DL)
C509 253 1181 904 Ceramic 0.01 uF/50V CK45F1H103ZT(DD-3)
C510 254 4538 900 Electrolytic 10 uF/16V CE04W1C100MT SMG/RE3
C511 253 9039 906 Ceramic 0.1 uF/25V CK45=1E104ZT(DD-3)
C512 254 4533 947 Electrolytic 330 uF/6.3V CE04W0J331MT SMG/RE3
C513 253 9039 906 Ceramic 0.1 uF/25V CK45=1E104ZT(DD-3)
C514 254 4533 947 Electrolytic 330 uF/6.3V CE04W0J331MT SMG/RE3
C516 254 4538 900 Electrolytic 10 uF/16V CE04W1C100MT SMG/RE3
C517 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C519,520 253 1181 904 Ceramic 0.01 uF/50V CK45F1H103ZT(DD-3)
C522 254 4403 721 Electrolytic 2200 uF/25V CE04W1E222MC (SMG)
C523 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C524 256 1058 971 Metalized 0.1 uF/50V CF93A1H104JT (JL)
C525 253 8022 707 Ceramic 0.01 uF/250V(AC) CK45F2EAC103MC
C606,607 256 1058 939 Metalized 0.047 uF/50V CF93A1H473JT (JL)
C611-614 255 1265 936 Mylar film 0.01 uF/50V CQ93M1H103JT(B)
For E2,E1,E1H,E1C,EUT
C616-619 253 1181 904 Ceramic 0.01 uF/50V CK45F1H103ZT(DD-3)
C627,628 256 1058 939 Metalized 0.047 uF/50V CF93A1H473JT (JL)
C629-632 255 1265 936 Mylar film 0.01 uF/50V CQ93M1H103JT(B)
For E2,E1,E1H,E1C,EUT
C633 253 1181 904 Ceramic 0.01 uF/50V CK45F1H103ZT(DD-3)
C634,635 256 1058 939 Metalized 0.047 uF/50V CF93A1H473JT (JL)
C636-638 253 1181 904 Ceramic 0.01 uF/50V
CK45F1H103ZT(DD-3)
C721,722 255 1264 908 Mylar film 1000 pF/50V CQ93M1H102JT(B)
For E2,E1,E1H,E1C,EUT
C723 253 9039 906 Ceramic 0.1 uF/25V CK45=1E104ZT(DD-3)
C802,803 253 1181 904 Ceramic 0.01 uF/50V CK45F1H103ZT(DD-3)
