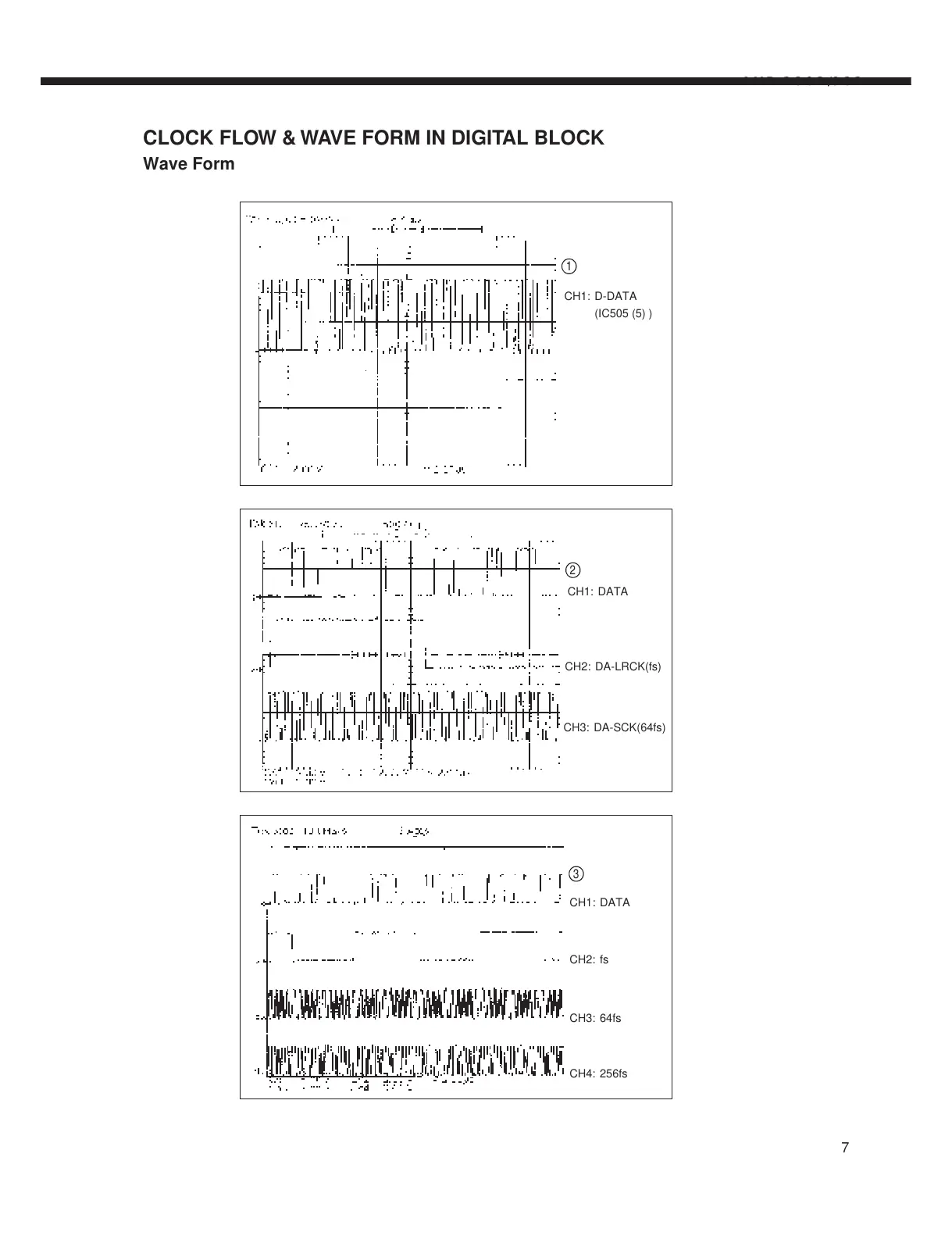

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
Wave Form
CH1: D-DATA
(IC505 (5) )
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: DA-LRCK(fs)
CH3: DA-SCK(64fs)
2
