AVR-2802/982
57
1 1U- 3368 Power unit ass'y For EU,982,EC 1
1U- 3368 B For E2 1
1U- 3368 A For E1,E1H 1
1U- 3368 F For E1C 1
1U- 3368 E For EUT 1
1-1 Power unit
1-2 H/P unit
1-3 P.SW-1 unit For EU,982,EC
1-4 Front unit
1-5 Voltage sel-1 unit For E1,E1H
1-6 Voltage sel-2 unit For E1,E1H
2 1U- 3369 EXT.IN unit ass'y For EU,982,EC 1
1U- 3369 B For E2 1
1U- 3369 A For E1,E1H,E1C 1
1U- 3369 E For EUT 1
2-1 EXT.IN VR unit
2-2 Connect unit
2-3 Digital in unit
3 1U- 3370 Control unit ass'y For EU,982,EC 1
1U- 3370 B For E2 1
1U- 3370 A For E1,E1H 1
1U- 3370 E For E1C,EUT 1
3-1 Control unit
3-2 Display unit
3-3 VOL unit
4 1U- 3371 Regulator unit ass'y For EU,982,EC 1
1U- 3371 A For E2,E1,E1H,E1C 1
1U- 3371 E For EUT 1
4-1 AMP connect unit
4-2 Pre out unit
4-3 Regulator unit
4-4 P.SW-2 unit
For E2,E1,E1H,E1C,EUT
4-5 Tuner connect unit
5 1U- 3373 DSP/Video unit ass'y For EU,982,EC 1
1U- 3373 B For E2 1
1U- 3373 A For E1,E1H 1
1U- 3373 E For E1C,EUT 1
5-1 Audio/DSP unit
5-2 S-Video unit
5-3 C-Video unit
5-4 Component video unit
7 216 0113 000 AM FM tuner(E3) For EU,982,EC,
E1,E1H,E1C,EUT 1
216 0114 009 AM FM tuner(E2) For E2 1
8 412 4716 001 Support bracket 1
9 412 3548 005 P.W.B. catcher 3
11 411 1372 827 Main chassis 1
13 412 4210 002 Bracket 2
14 104 0194 289 Foot ass'y 4
16 206 2160 009 AC cord VH N/I E3 For EU,982,EC,EUT 1
206 2089 106 AC cord W/Con.E2 For E2 1
206 2175 007 AC cord(E1/VH) For E1 1
206 2177 005 AC cord(EK/VH) For E1H 1
Ref. No. Part No. Part Name Remarks
Q'ty
48 461 0976 025 Rubber sheet 1
49 412 2955 107 Side bracket For E2,E1,E1H,E1C 1
50 203 3981 000 AC outlet (E2) For E2,E1,E1H 1
203 5177 029 3P VH con.cord
For E2,E1,E1H (Out let)
1
203 2374 029 2P VA-VA cord
For E2,E1,E1H,E1C,EUT
1
131 9004 013 DENON mark For Black model 1
131 9004 068 DENON mark For Gold model 1
445 8004 007 Wire clamper
For EU,982,EC,E2,EUT
3
For E1,E1H 4
For E1C 2
513 3656 009 Fuse caution label For EU,982,EC 1
477 0096 007 Push rivet For E2,E1,E1H,E1C
(SP Terminal) 16
GEN 4990 -9 Rating sub ass'y For E1,E1H 1
513 3548 036 Rating label(T) For EUT
515 8030 066 Preset label
For E1,E1H (AC cord)
1
SCREWS
101 473 7500 015 3X8 CBTS (P)-Z 13
102 473 7501 001 3X10 CBTS (P)-Z 7
103 473 7501 030 3X20 CBTS (P)-Z 3
104 473 7015 018 3X8 CBTS (S)-B For EU,982,EC,EUT 13
For E2,E1,E1H,E1C 15
105 473 7005 002 3X10 CBTS (S)-Z 18
106 477 0153 018 3X16 CPTS(B) SW W 12
107 473 7004 016 4X6 CBTS (S)-Z 4
108 473 8064 000 4X8 CBTS(B)-B-3P For Black model 6
473 8064 013 4X8 CBTS(B)-N-3P For Gold model 6
109 477 0064 107 Fixing screw For EU,982,EC,
EUT,E1,E1H 36
For E2,E1C 34
110 473 8034 098 3X10 CBTS(B)-B 4
111 473 7500 028 3X8 CFTS (P)-Z 6
112 473 7002 034 3X6 CBTS (S)-B 2
113 473 8034 056 3X14 CBTS(B)Z 7
114 473 7002 005 3X6 CBTS(S)-Z 6

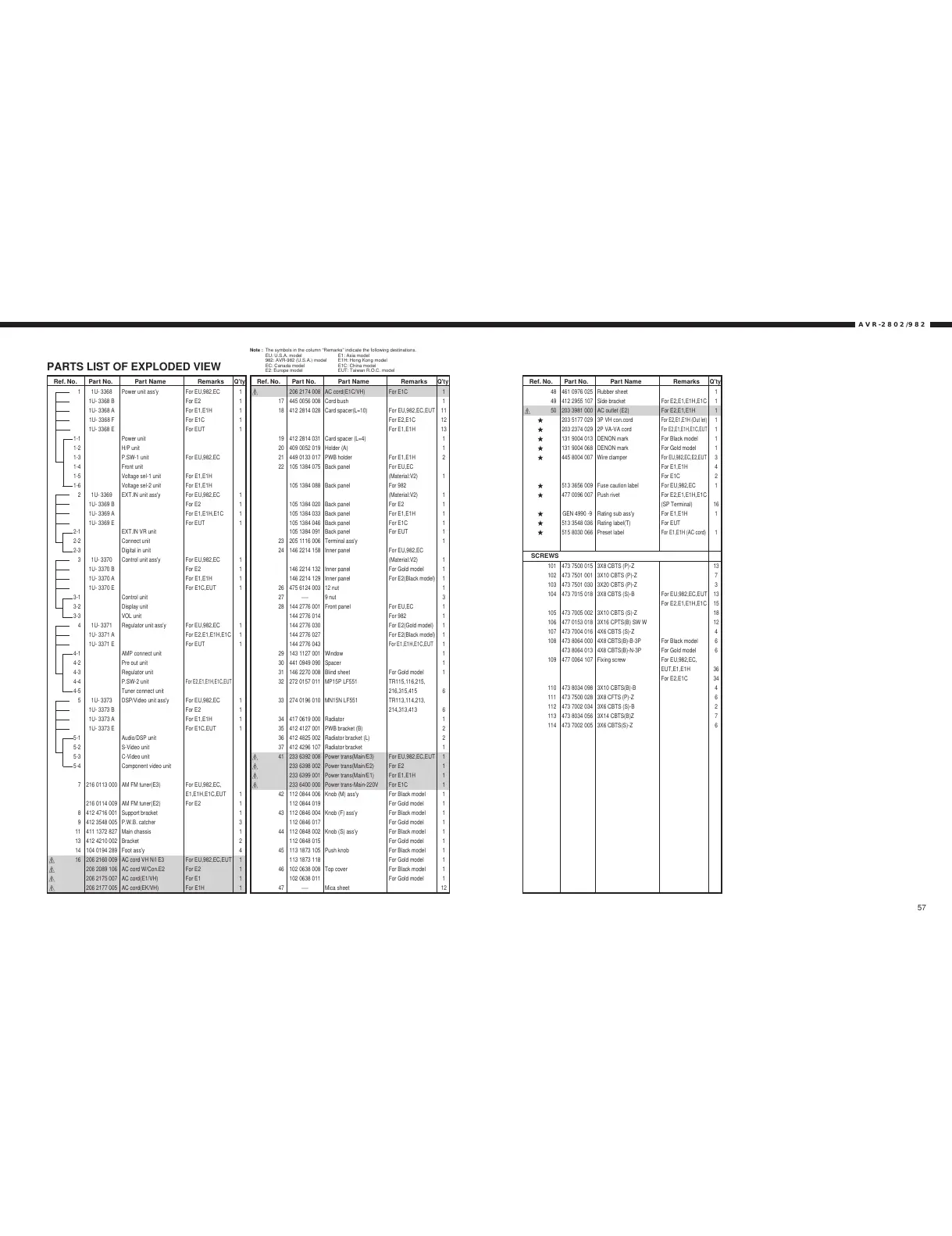

PARTS LIST OF EXPLODED VIEW
Ref. No. Part No. Part Name Remarks
Q'ty
Ref. No. Part No. Part Name Remarks
Q'ty
Note : The symbols in the column “Remarks” indicate the following destinations.
EU: U.S.A. model E1: Asia model
982: AVR-982 (U.S.A.) model E1H: Hong Kong model
EC: Canada model E1C: China model
E2: Europe model EUT: Taiwan R.O.C. model
206 2174 008 AC cord(E1C/VH) For E1C 1
17 445 0056 008 Cord bush 1
18 412 2814 028 Card spacer(L=10) For EU,982,EC,EUT 11
For E2,E1C 12
For E1,E1H 13
19 412 2814 031 Card spacer (L=4) 1
20 409 0052 019 Holder (A) 1
21 449 0133 017 PWB holder For E1,E1H 2
22 105 1384 075 Back panel For EU,EC
(Material:V2) 1
105 1384 088 Back panel For 982
(Material:V2) 1
105 1384 020 Back panel For E2 1
105 1384 033 Back panel For E1,E1H 1
105 1384 046 Back panel For E1C 1
105 1384 091 Back panel For EUT 1
23 205 1116 006 Terminal ass'y 1
24 146 2214 158 Inner panel For EU,982,EC
(Material:V2) 1
146 2214 132 Inner panel For Gold model 1
146 2214 129 Inner panel For E2(Black model) 1
26 475 6124 003 12 nut 1
27
9 nut 3
28 144 2776 001 Front panel For EU,EC 1
144 2776 014 For 982 1
144 2776 030 For E2(Gold model) 1
144 2776 027 For E2(Black model) 1
144 2776 043
For E1,E1H,E1C,EUT
1
29 143 1127 001 Window 1
30 441 0949 090 Spacer 1
31 146 2270 008 Blind sheet For Gold model 1
32 272 0157 011 MP15P LF551 TR115,116,215,
216,315,415 6
33 274 0196 010 MN15N LF551 TR113,114,213,
214,313,413 6
34 417 0619 000 Radiator 1
35 412 4127 001 PWB bracket (B) 2
36 412 4825 002 Radiator bracket (L) 2
37 412 4296 107 Radiator bracket 1
41 233 6392 008 Power trans(Main/E3) For EU,982,EC,EUT 1
233 6398 002 Power trans(Main/E2) For E2 1
233 6399 001 Power trans(Main/E1) For E1,E1H 1
233 6400 000 Power trans-Main-220V For E1C 1
42 112 0844 006 Knob (M) ass'y For Black model 1
112 0844 019 For Gold model 1
43 112 0846 004 Knob (F) ass'y For Black model 1
112 0846 017 For Gold model 1
44 112 0848 002 Knob (S) ass'y For Black model 1
112 0848 015 For Gold model 1
45 113 1873 105 Push knob For Black model 1
113 1873 118 For Gold model 1
46 102 0638 008 Top cover For Black model 1
102 0638 011 For Gold model 1
47
Mica sheet 12
