Denon AVR-982 Service Manual

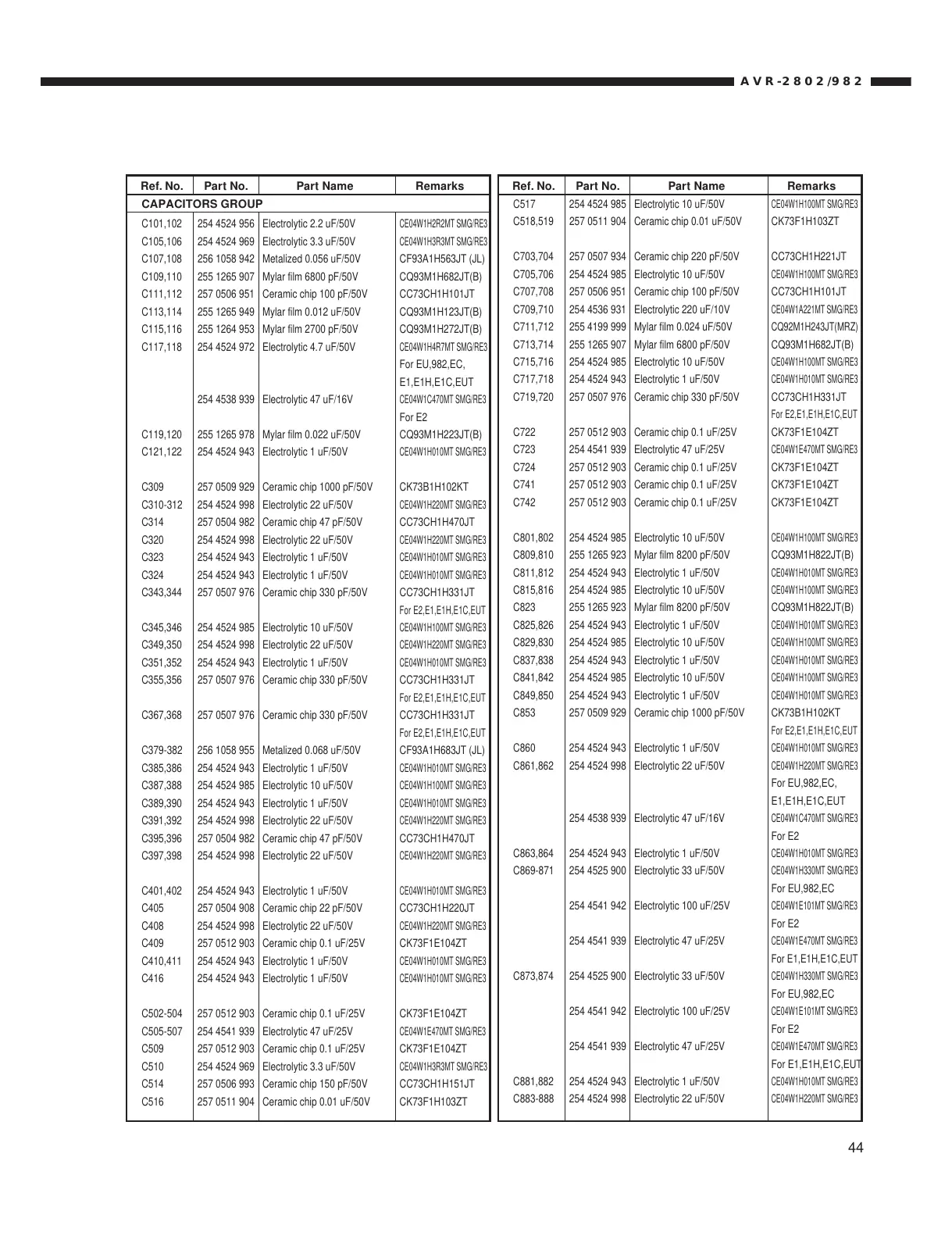

AVR-2802/982
44
Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks
C517 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C518,519 257 0511 904 Ceramic chip 0.01 uF/50V CK73F1H103ZT
C703,704 257 0507 934 Ceramic chip 220 pF/50V CC73CH1H221JT
C705,706 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C707,708 257 0506 951 Ceramic chip 100 pF/50V CC73CH1H101JT
C709,710 254 4536 931 Electrolytic 220 uF/10V
CE04W1A221MT SMG/RE3
C711,712 255 4199 999 Mylar film 0.024 uF/50V CQ92M1H243JT(MRZ)
C713,714 255 1265 907 Mylar film 6800 pF/50V CQ93M1H682JT(B)
C715,716 254 4524 985 Electrolytic 10 uF/50V
CE04W1H100MT SMG/RE3
C717,718 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C719,720 257 0507 976 Ceramic chip 330 pF/50V CC73CH1H331JT
For E2,E1,E1H,E1C,EUT
C722 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C723 254 4541 939 Electrolytic 47 uF/25V
CE04W1E470MT SMG/RE3
C724 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C741 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C742 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C801,802 254 4524 985 Electrolytic 10 uF/50V
CE04W1H100MT SMG/RE3
C809,810 255 1265 923 Mylar film 8200 pF/50V CQ93M1H822JT(B)
C811,812 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C815,816 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C823 255 1265 923 Mylar film 8200 pF/50V CQ93M1H822JT(B)
C825,826 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C829,830 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C837,838 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C841,842 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C849,850 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C853 257 0509 929 Ceramic chip 1000 pF/50V CK73B1H102KT
For E2,E1,E1H,E1C,EUT
C860 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C861,862 254 4524 998 Electrolytic 22 uF/50V CE04W1H220MT SMG/RE3
For EU,982,EC,
E1,E1H,E1C,EUT
254 4538 939 Electrolytic 47 uF/16V
CE04W1C470MT SMG/RE3
For E2
C863,864 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C869-871 254 4525 900 Electrolytic 33 uF/50V CE04W1H330MT SMG/RE3
For EU,982,EC
254 4541 942 Electrolytic 100 uF/25V
CE04W1E101MT SMG/RE3
For E2
254 4541 939 Electrolytic 47 uF/25V
CE04W1E470MT SMG/RE3
For E1,E1H,E1C,EUT
C873,874 254 4525 900 Electrolytic 33 uF/50V CE04W1H330MT SMG/RE3
For EU,982,EC
254 4541 942 Electrolytic 100 uF/25V
CE04W1E101MT SMG/RE3
For E2
254 4541 939 Electrolytic 47 uF/25V
CE04W1E470MT SMG/RE3
For E1,E1H,E1C,EUT
C881,882 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C883-888 254 4524 998 Electrolytic 22 uF/50V CE04W1H220MT SMG/RE3
CAPACITORS GROUP
C101,102 254 4524 956 Electrolytic 2.2 uF/50V CE04W1H2R2MT SMG/RE3
C105,106 254 4524 969 Electrolytic 3.3 uF/50V CE04W1H3R3MT SMG/RE3
C107,108 256 1058 942 Metalized 0.056 uF/50V CF93A1H563JT (JL)
C109,110 255 1265 907 Mylar film 6800 pF/50V CQ93M1H682JT(B)
C111,112 257 0506 951 Ceramic chip 100 pF/50V CC73CH1H101JT
C113,114 255 1265 949 Mylar film 0.012 uF/50V CQ93M1H123JT(B)
C115,116 255 1264 953 Mylar film 2700 pF/50V CQ93M1H272JT(B)
C117,118 254 4524 972 Electrolytic 4.7 uF/50V
CE04W1H4R7MT SMG/RE3
For EU,982,EC,
E1,E1H,E1C,EUT
254 4538 939 Electrolytic 47 uF/16V
CE04W1C470MT SMG/RE3
For E2
C119,120 255 1265 978 Mylar film 0.022 uF/50V CQ93M1H223JT(B)
C121,122 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C309 257 0509 929 Ceramic chip 1000 pF/50V CK73B1H102KT
C310-312 254 4524 998 Electrolytic 22 uF/50V
CE04W1H220MT SMG/RE3
C314 257 0504 982 Ceramic chip 47 pF/50V CC73CH1H470JT
C320 254 4524 998 Electrolytic 22 uF/50V
CE04W1H220MT SMG/RE3
C323 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C324 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C343,344 257 0507 976 Ceramic chip 330 pF/50V CC73CH1H331JT
For E2,E1,E1H,E1C,EUT
C345,346 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C349,350 254 4524 998 Electrolytic 22 uF/50V CE04W1H220MT SMG/RE3
C351,352 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C355,356 257 0507 976 Ceramic chip 330 pF/50V CC73CH1H331JT
For E2,E1,E1H,E1C,EUT
C367,368 257 0507 976 Ceramic chip 330 pF/50V CC73CH1H331JT
For E2,E1,E1H,E1C,EUT
C379-382 256 1058 955 Metalized 0.068 uF/50V CF93A1H683JT (JL)
C385,386 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C387,388 254 4524 985 Electrolytic 10 uF/50V CE04W1H100MT SMG/RE3
C389,390 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C391,392 254 4524 998 Electrolytic 22 uF/50V CE04W1H220MT SMG/RE3
C395,396 257 0504 982 Ceramic chip 47 pF/50V CC73CH1H470JT
C397,398 254 4524 998 Electrolytic 22 uF/50V
CE04W1H220MT SMG/RE3
C401,402 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C405 257 0504 908 Ceramic chip 22 pF/50V CC73CH1H220JT
C408 254 4524 998 Electrolytic 22 uF/50V
CE04W1H220MT SMG/RE3
C409 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C410,411 254 4524 943 Electrolytic 1 uF/50V
CE04W1H010MT SMG/RE3
C416 254 4524 943 Electrolytic 1 uF/50V CE04W1H010MT SMG/RE3
C502-504 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C505-507 254 4541 939 Electrolytic 47 uF/25V
CE04W1E470MT SMG/RE3
C509 257 0512 903 Ceramic chip 0.1 uF/25V CK73F1E104ZT
C510 254 4524 969 Electrolytic 3.3 uF/50V
CE04W1H3R3MT SMG/RE3
C514 257 0506 993 Ceramic chip 150 pF/50V CC73CH1H151JT
C516 257 0511 904 Ceramic chip 0.01 uF/50V CK73F1H103ZT
