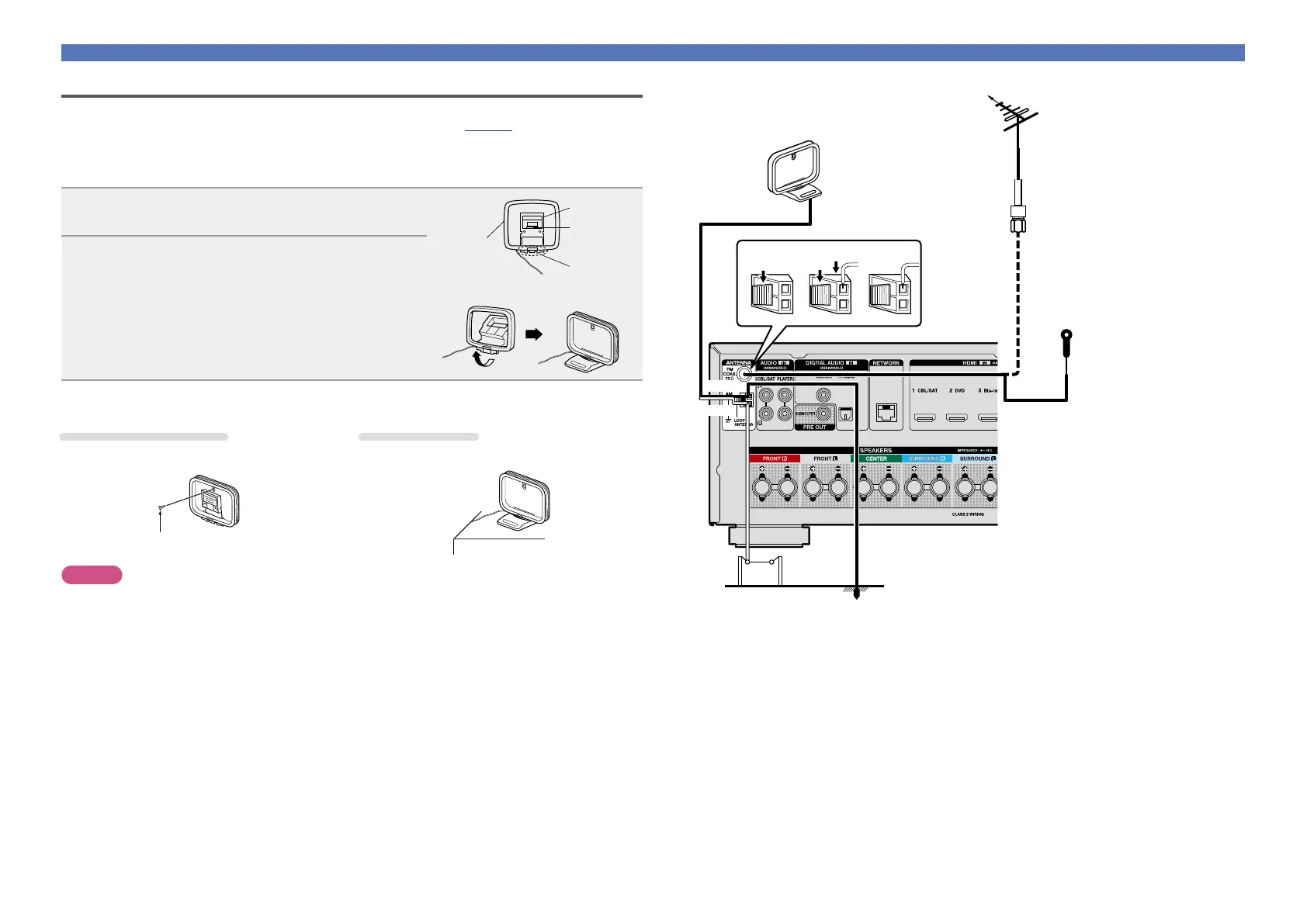

Connecting an FM/AM antenna
•Connect the FM antenna supplied with the unit to enjoy listening to radio broadcasts.
•After connecting the antenna and receiving a broadcast signal (vpage 35 “Listening to FM/AM
broadcasts”), fix the antenna with tape in a position where the noise level becomes minimal.
n AM loop antenna assembly
1
Put the stand section through the bottom of the
loop antenna from the rear and bend it forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part into the square hole in
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Standing alone
Use the procedure shown above to assemble.
Nail, tack, etc.
NOTE
•Do not connect two FM antennas simultaneously.
•Even if an external AM antenna is used, do not disconnect the AM loop antenna.
•Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
•If the signal has noise interference, connect the ground terminal (GND) to reduce noise.
•If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For
details, inquire at the retail store where you purchased the unit.
Connecting other devices
w eq
FM outdoor
antenna
Direction of broadcasting station
75 Ω/ohms
coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black
White
To Next Page
