Speaker connection

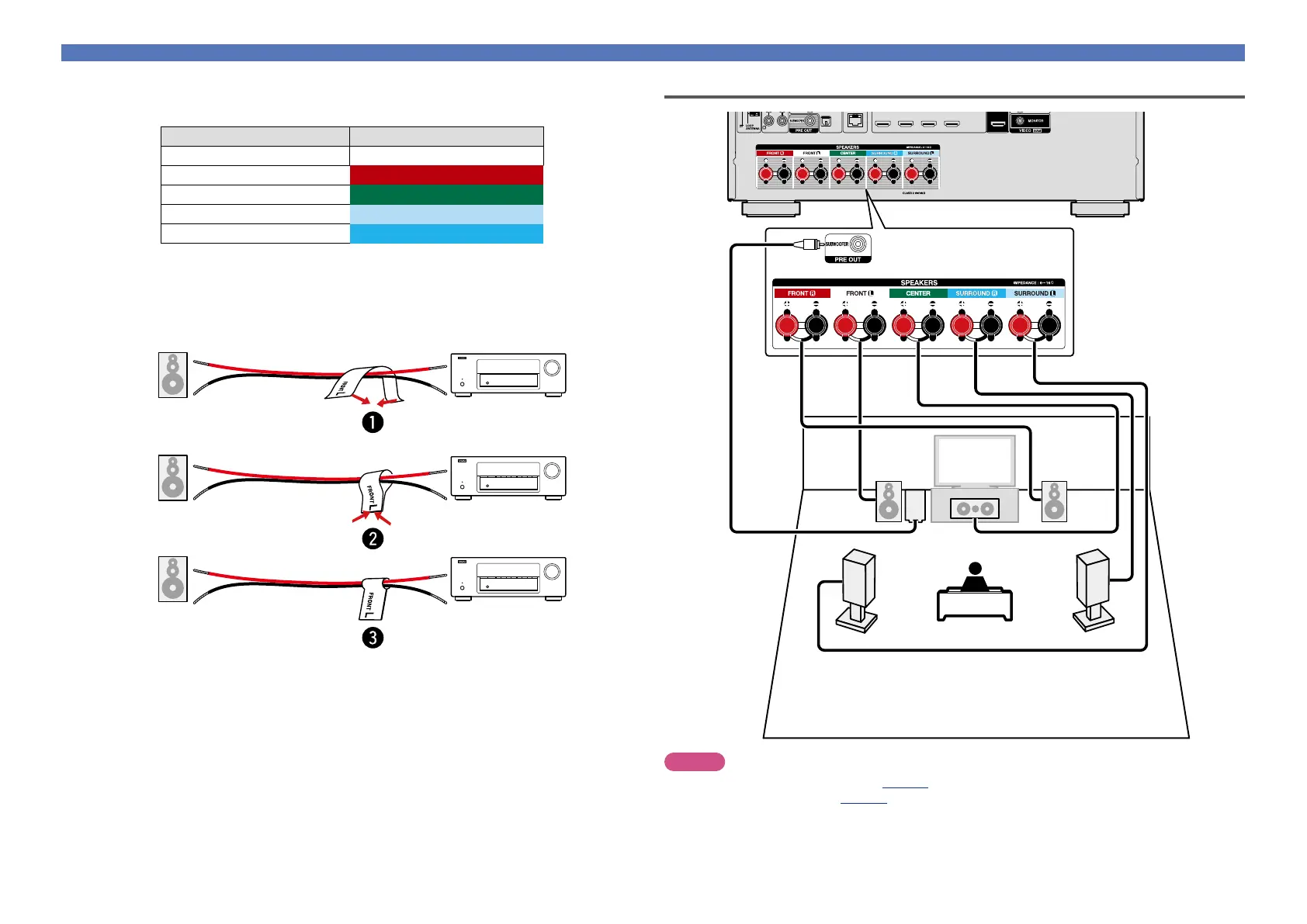

n About the speaker cable label (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to
be identifiable.
Speaker terminals Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light blue
SURROUND R Blue
Attach the speaker cable label for each channel to its speaker cable as shown in the diagram.
Then, make connection so that the color of the speaker terminal matches that of the speaker cable
label.
GHow to attach the speaker cable labelH
Speaker This unit
Connecting 5.1-channel speakers
FL FR
C
SL
SR
SW
NOTE
•For speaker cable connections, see page75.
•For speaker impedance, see page75.
To Next Page
