14

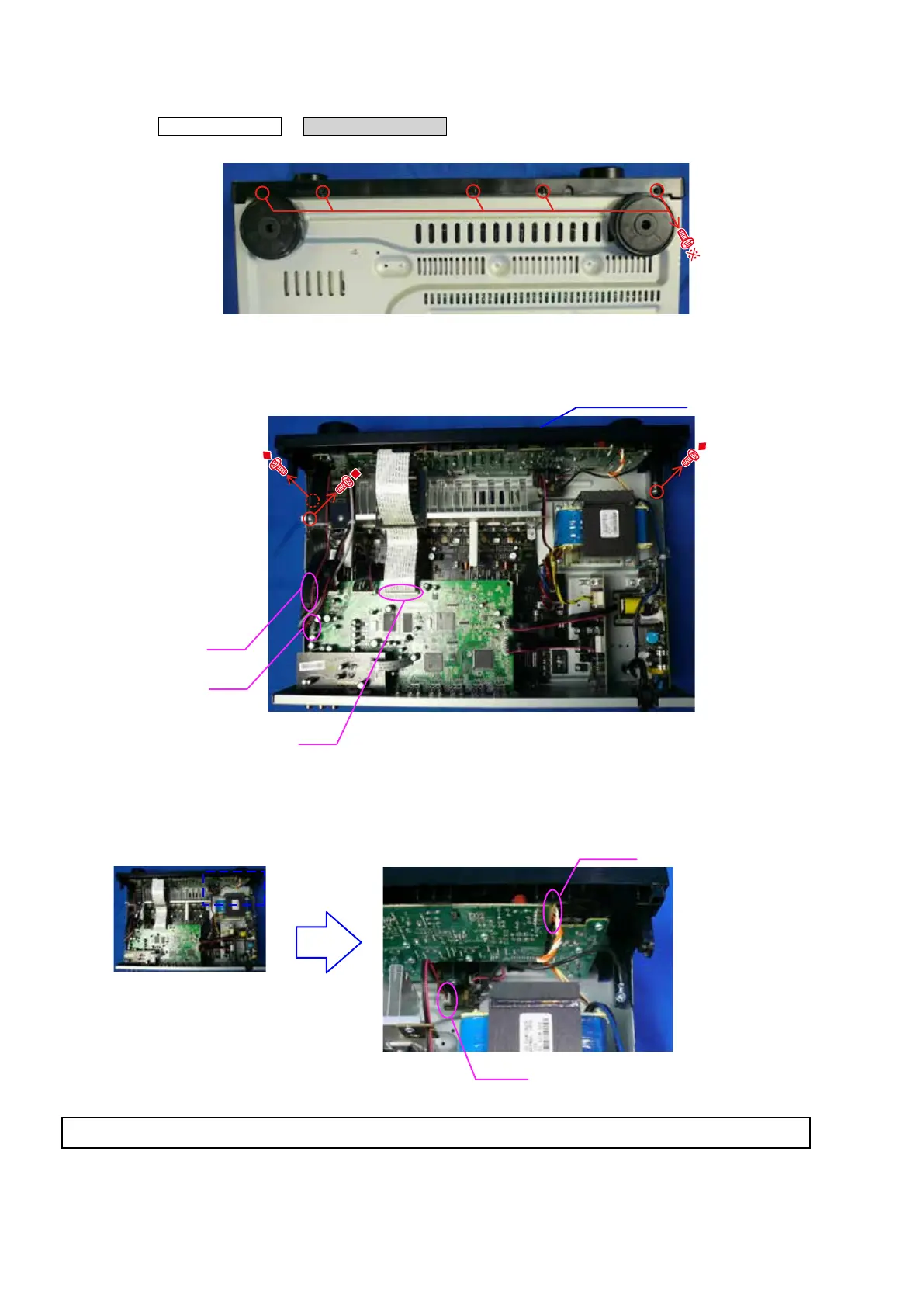

1. FRONT PANEL ASSY
Proceeding : CABINET TOP
→
FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws and disconnect the FFC.
(3) Disconnect the connector wires.
View from the bottom
FFC
CN713
CN752
FRONT PANEL ASSY
CN102
CN104
See "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
