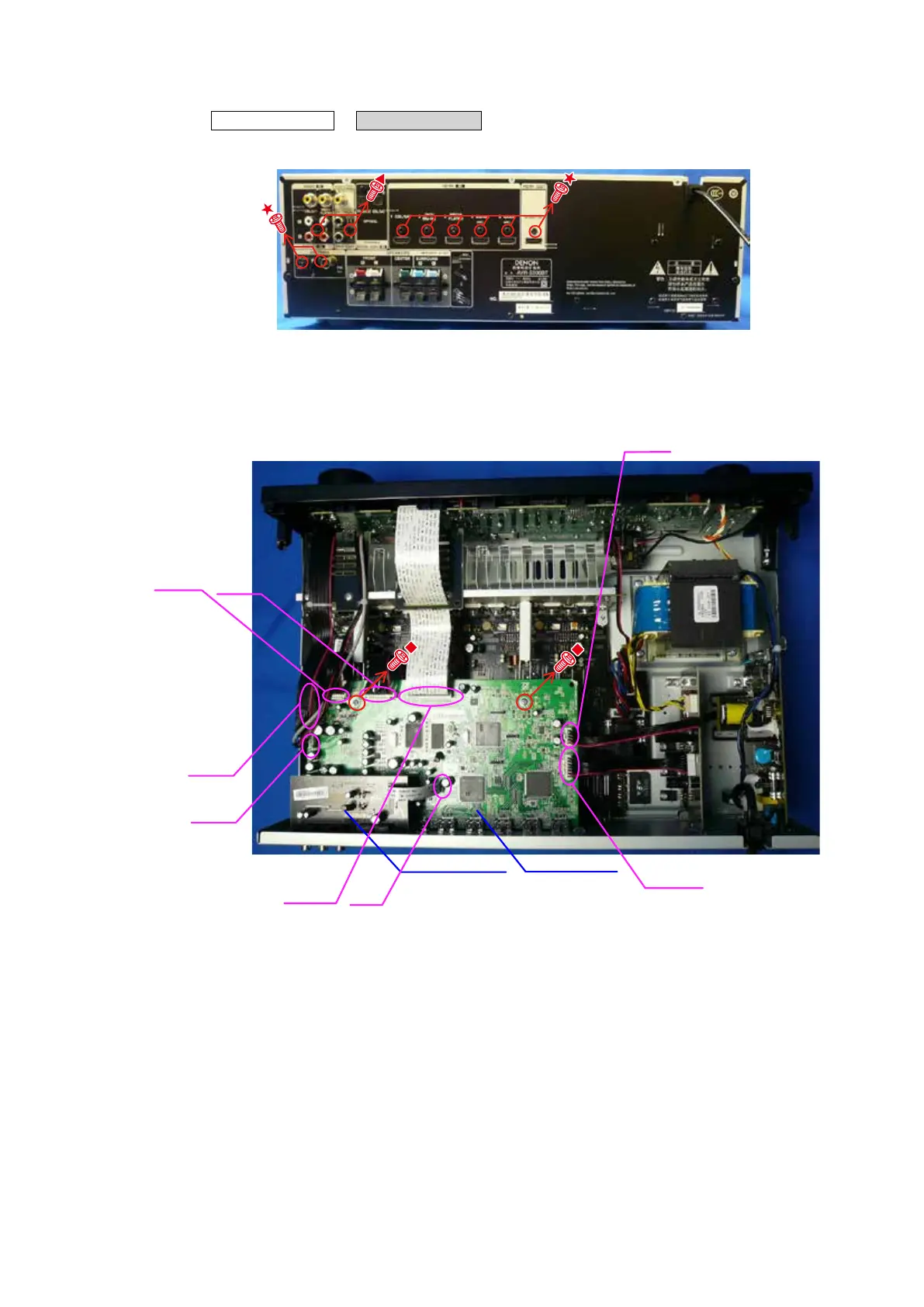

2. DIGITAL PCB
Proceeding : CABINET TOP
→
DIGITAL PCB
(1) Remove the screws.
(2) Remove the screws.
Disconnect the connector wires and FFC.
Shooting direction: A
DIGITAL PCB
VIDEO/OPT PCB
CN751
CN771
FFC
CN772
CN712
CN752
CN713
FFC
