Denon AVR-S500BT Service Manual

52
2CH IN 0dB
(200mV)
-10dB
-20dB
10dB
20dB
30dB
40dB

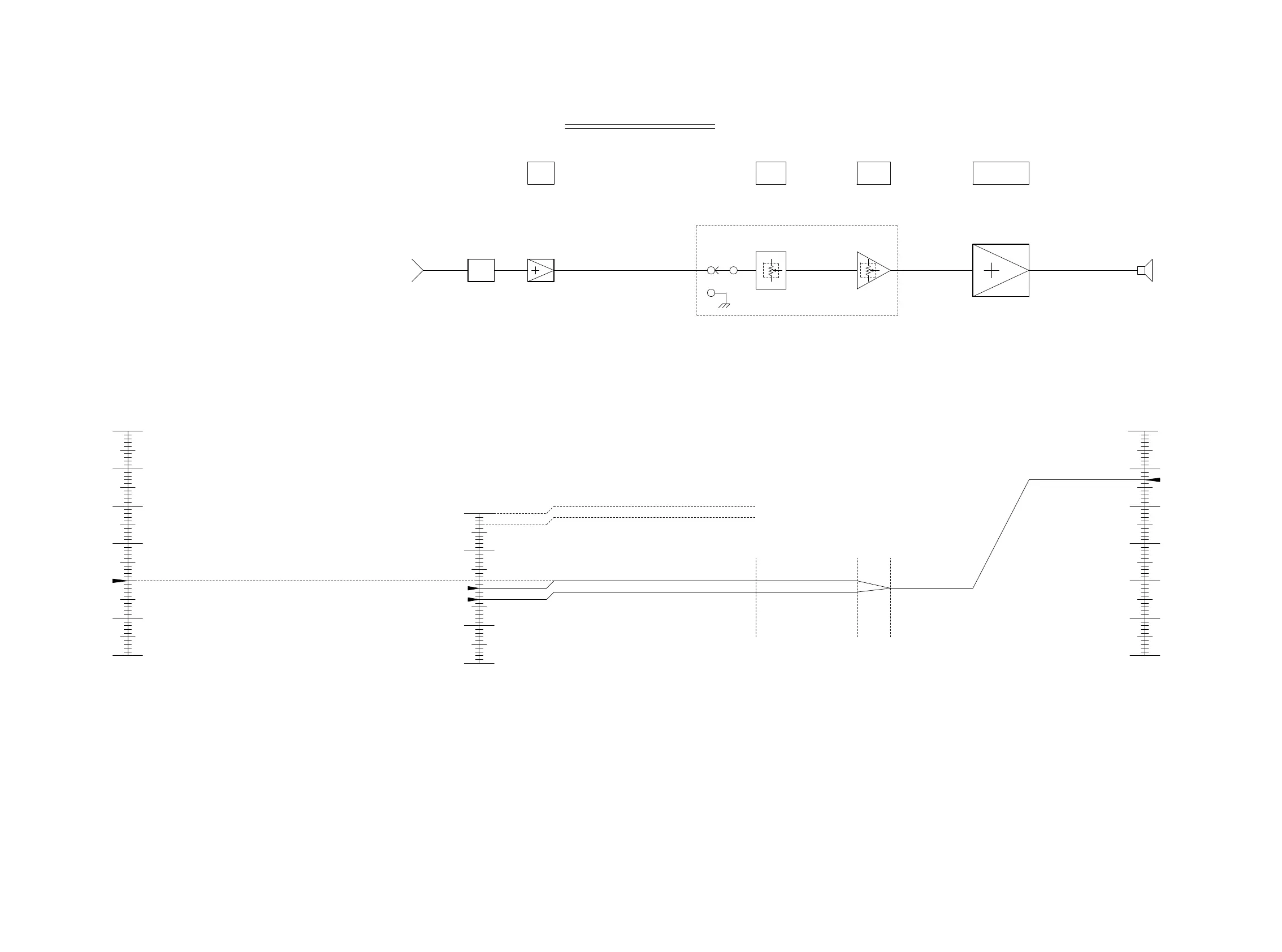

AVR-S500BT/X510BT LEVEL2 DIAGRAM
CENTER
D/A OUT
LPF
SPK OUT
PRE AMP1
ELECTRIC
VOLUME
CENTER
POWER AMP
+1.77dB
D/A
CS42528
0dBFS=5Vpp
DIFF. OUT
=1.77Vrms
-30dBFS
0dBFS
-10dBFS
-40dBFS
+1.77dB
-20dBFS(DIG.IN)
-22.78dBFS
(A/D IN)
FULL SCALE LEVEL=2Vrms
DOLBY LIMIT LEVEL (ALL ch-3dBFS)
GAIN setting of MASTER VOL 00dB
-DD Config2(DIG.IN)
-A/D IN(ANALOG)
=+1dB
=+1dB
CENTER ch
DSP OUT D/A
NJU72340AFH3
-PCM or DD Config1(DIG.IN) =-2dB
4.47Vrms/8ohm
-2dB
VOL 00
+29dB
SPK OUT
FRONT
0dB
-10dB
-20dB
10dB
20d
B
30dB
40dB
+1dB
