Denon AVR-S510BT Service Manual

Initializing This Unit
Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB.
1. Press the power button (
X
) to turn off the power.

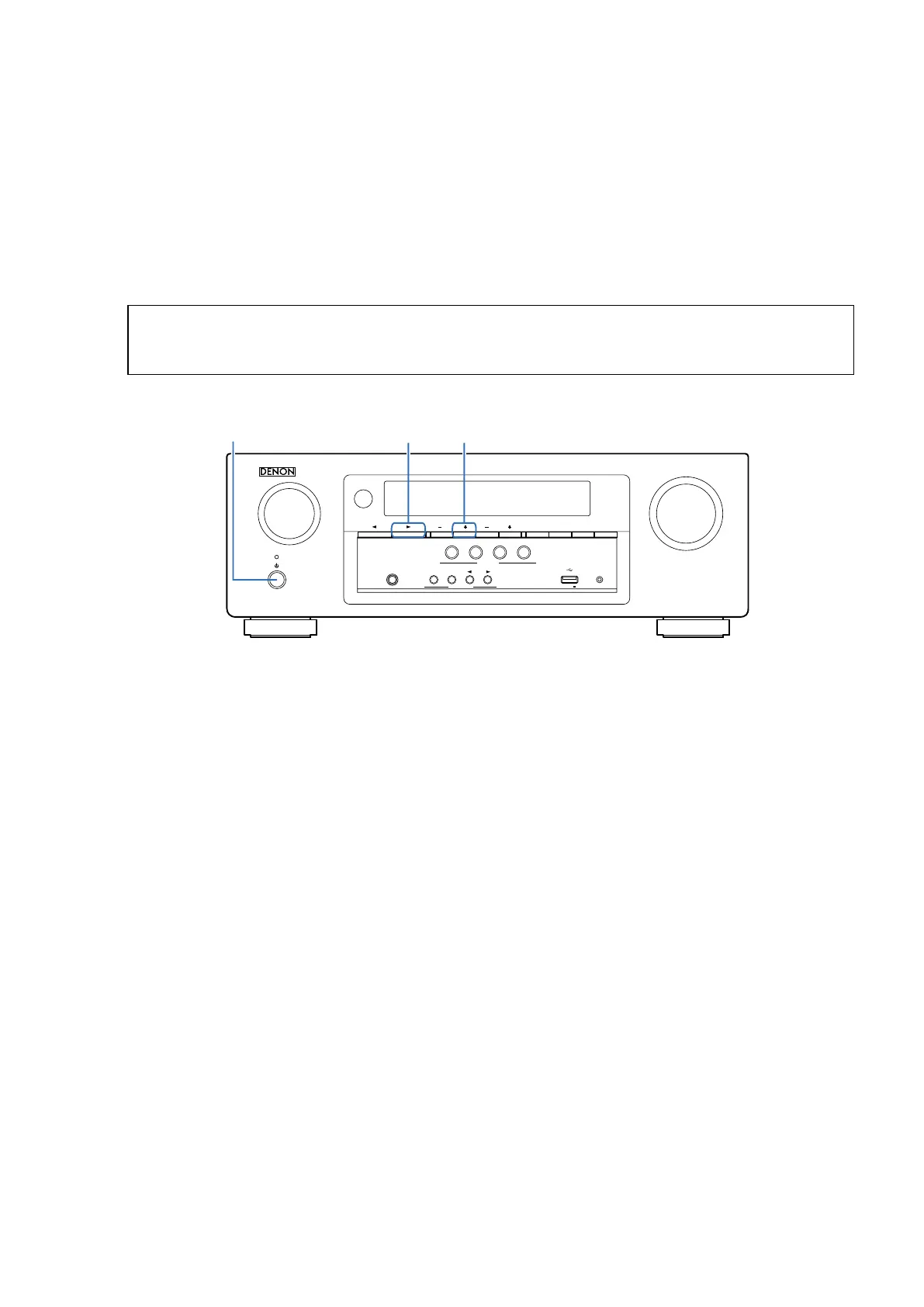

2. Hold down buttons "SOUND MODE
1
" and "PRESET +" at the same time and press the power button to turn on the
power.
3. Release the buttons after conrming that the display ashes in intervals of approximately 1 second.
The unit is initialized.
[AVR-S510BT]
NOTE: • If the status in step 3 does not occur, start again from step 1.
• Initializing the device restores settings congured by the user to the factory settings.
Take note of your settings beforehand and recongure them after initialization.
