Denon AVR-S510BT Service Manual

20

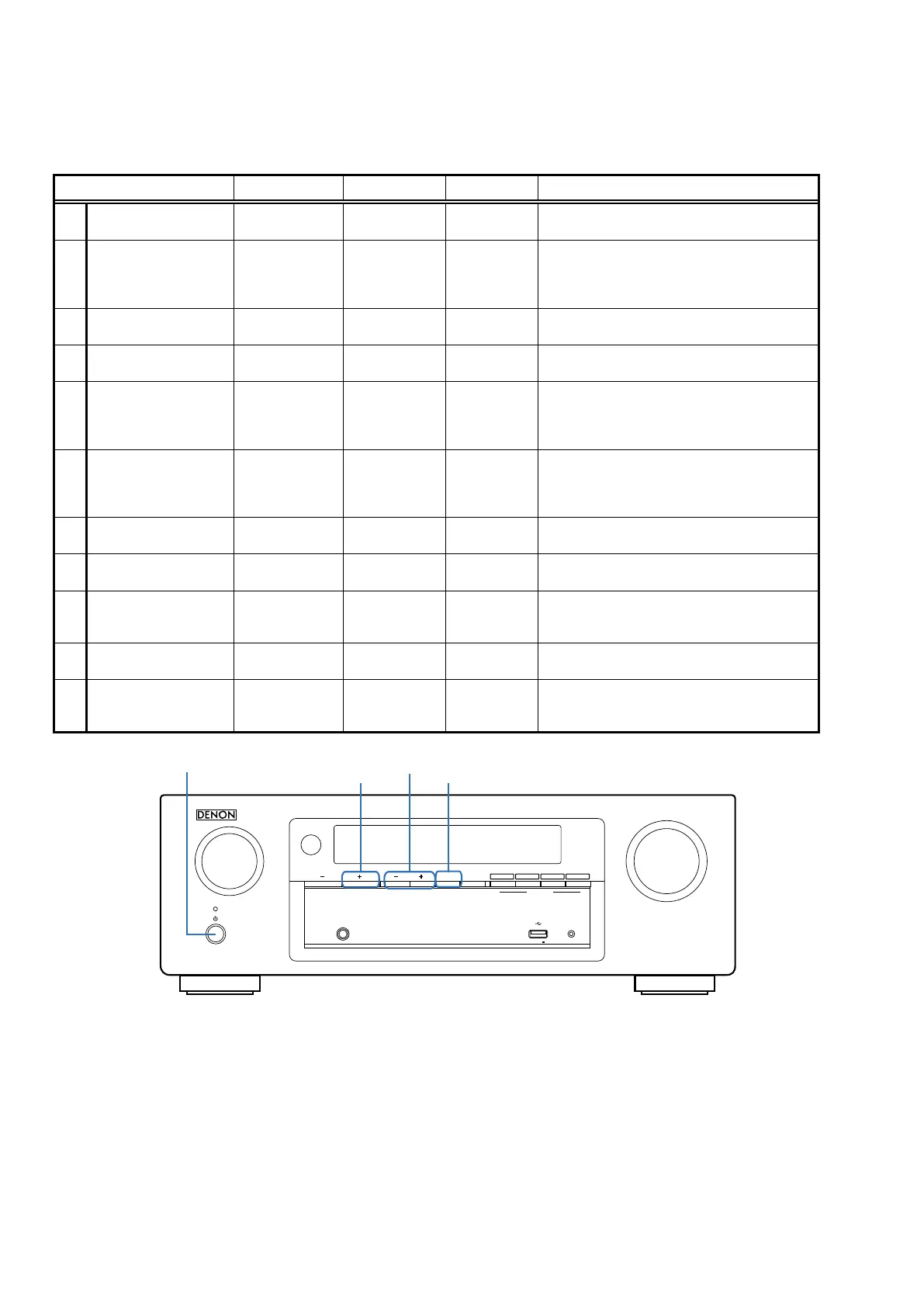

SPECIAL MODE (AVR-X520BT / X518CI)
Special mode setting button
b
 No.1,2:HolddownbuttonsAandBatthesametimeandpressthepowerbutton(
X
)
toturnonthepower.
 No.3,4:HolddownbuttonsA,BandCforatleast3secondswhilethepowerison.
Mode Button A Button B Button C Contents
1 Initialization PRESET+ TUNE+
Backupdatainitializationiscarriedout.
(Seepage14.)
2 VersionDisplay TUNE+ DIMMER
FirmwareversionssuchasMain,DSPorOSD
aredisplayedintheFLdisplay.Errorsare
displayedorwhentheyoccur.
(Seepage21.)
3
ChangeVideoFormat
andDisplayLanguge
TUNE- TUNE+ DIMMER
Selectthemodeshownbelow.
"VideoFormat"and"Language".
3-1 VideoFormat PRESET+ ー ー
Selectorchangethe"NTSC"or"PAL".
Defaultsetting:E2/E1CPAL,E3NTSC
3-2 Language ↑ ー ー
Selectorchangethelanguage:
AVR-X520E2"ENGLISH","SPANISH""FRENCH"
AVR-X520/X518E1C"CHINESE","ENGLISH
Defaultsetting:E3/E2ENGLISH,E1CCHINESE
4 ProductMode PRESET+ TUNE- TUNE+
Selectthemodeshownbelow.
"RemoteLock","TuningStepChange","OSD
Update","ProtectionHistoryDisplay"and"Mic
Mode".
4-1 RemoteLock STATUS+ ー ー
Modetoprohibittheoperationfromthe
remotecontrol.
4-2 TuningStepChange ↑ ー ー
SwitchingoftheStepofthetuningfrequency
oftheTuner.
4-3 OSDUpdate ↑ ー ー
PowerforcedmodetoupdatetheOSDash
ROM.
*Notforservice.
4-4
ProtectionHistory
Display
↑ ー ー Displayofprotectionofoccurrencehistory.
4-5 MicMode ↑ ー ー
Modethatconnectstheinputofthe
microphoneterminaltoSpeakeroutput.
*Notforservice.
MASTER VOLUME
SOURCE SELECT
SETUP MICPHONES
5V/1A
GAMECBL/SAT
31
DIMMER STATU S
TUNER
PRESET CH
TUNE
DVD/Blu-ray
2
Bluetooth
4
QUICK SELECT
TUNE -, +
X
PRESET +
DIMMER
f
f

Denon AVR-S510BT Specifications

General

Channels	5.2
Power Output	70 Watts per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Response Bandwidth	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
HDMI Inputs	5
HDMI Outputs	1
HDMI Pass-Through	Yes
HDMI Version	2.0
HDCP Version	2.2
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Audio Decoding	Dolby TrueHD, DTS-HD Master Audio
Wi-Fi	No
Inputs	5 HDMI, 2 digital optical, 2 analog
Outputs	1 HDMI
Dimensions	17.1 in x 12.6 in x 5.9 in
Amplifier Output Details	5 channels
