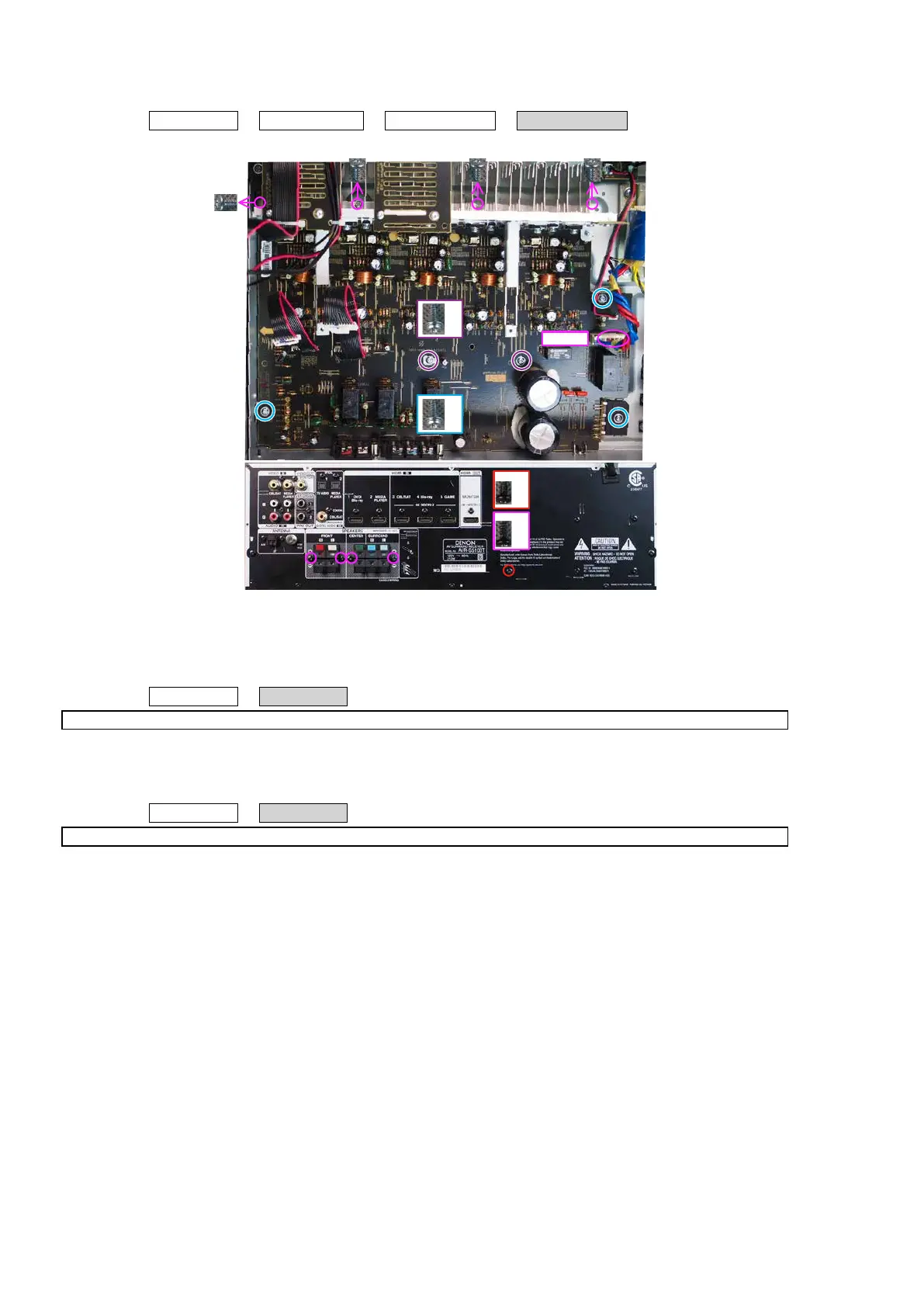

4. MAIN PCB
Proceeding： TOP COVER → VIDEO PCB → DIGITAL PCB → MAIN PCB
(1) Remove the screws. Remove the connector.
5. POWER PCB
Proceeding ： TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "SMPS PCB".
6. TRANS
Proceeding ： TOP COVER → TRANS
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "TRANS".
↑Shooting direction: A↑
x4
x1
CN503
x3
x2
18
