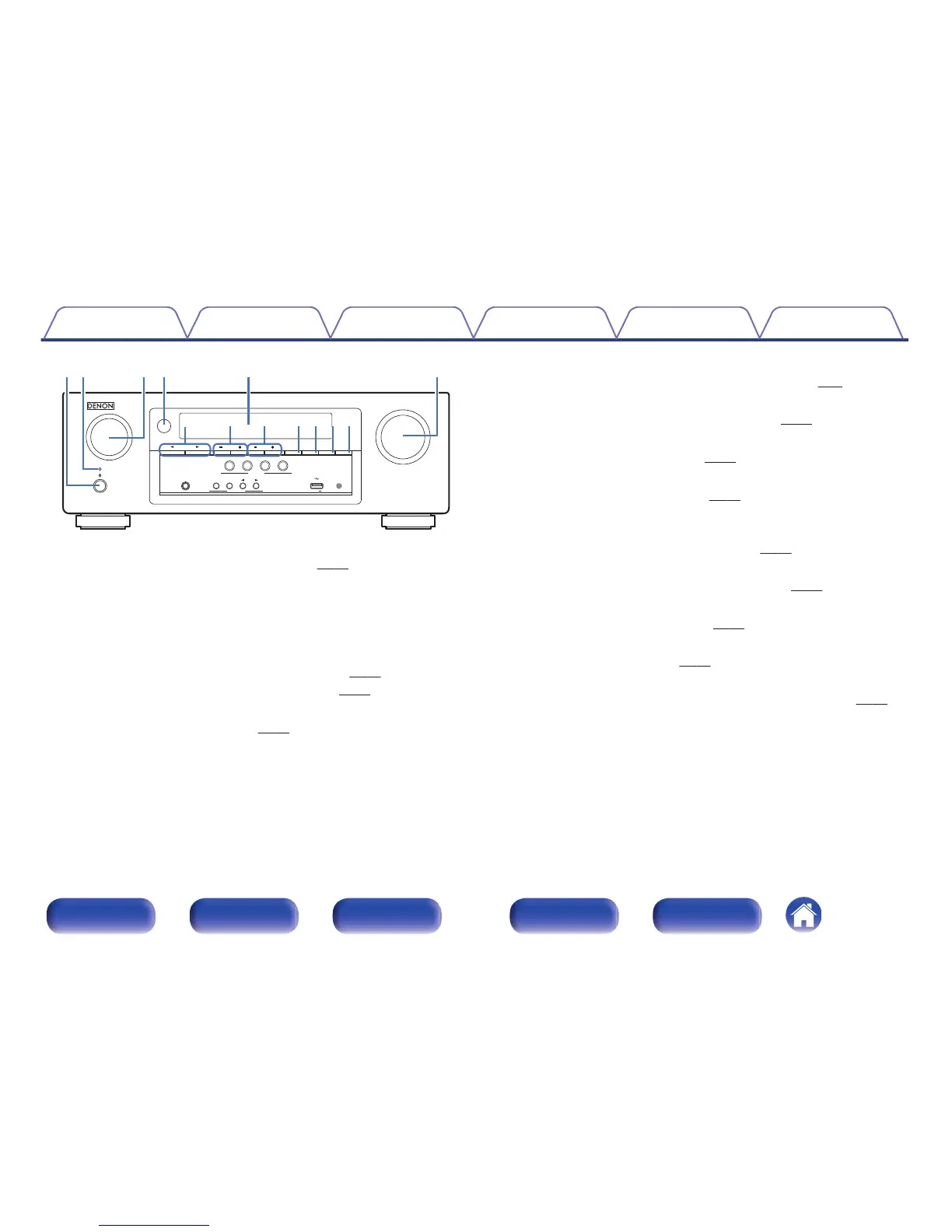

Denon AVR-S510BT - Front Panel Controls; Power Operation Button; Source Select Knob; Master Volume Knob

.
MASTER VOLUME
SOURCE SELECT
TUNE
TUNER
PRESET CH
SOUND MODE
SETUP MICPHONES
5V/1A
CBL/SAT
3
1
QUICK SELECT
GAME
ON / OFF
BASS /
TREBLE
TONE CONTROL
2
DVD/Blu-ray
4
Bluetooth
ADJUST
AV SURROUND RECEIVER AVR-S510BT
MODE SLEEP DIMMER STATUS
trqw e y
uQ0Q1Q2Q3io
A
Power operation button (X)
Used to turn the power on/off (standby). (v p. 37)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI PassThrough” is set to “On”
(v
p. 74)
0
When “BluetoothStandby” is set to “On” (v p. 89)
C
SOURCE SELECT knob
This selects the input source. (v
p. 37)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 6)
E
Display
This displays various pieces of information.
(v
p. 13)
F
MASTER VOLUME knob
This adjusts the volume level.
(v p. 38)
G
SOUND MODE buttons (0 1)
These select the sound mode. (v p. 55)
H
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v
p. 48)
I
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 46)
J
Tuning mode select button (MODE)
This switches the tuning mode. (v
p. 46)
K
SLEEP button
This sets the sleep timer.
(v p. 61)
L
DIMMER button
Each press of this switches the brightness of the display. (v p. 89)
M
STATUS button
Each press of this switches the status information that is shown on the
display.
