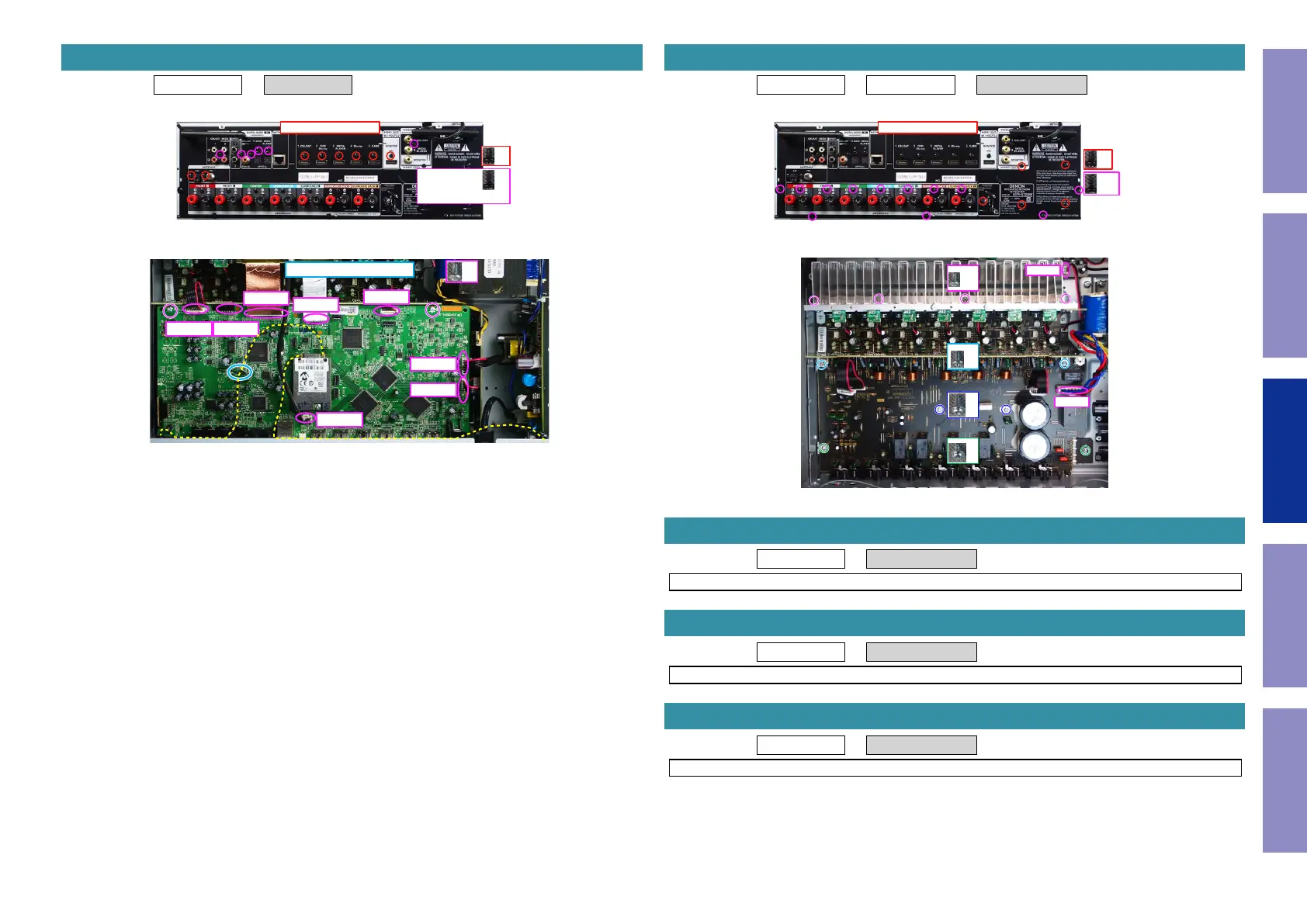

Proceeding : TOP COVER → DIGITAL PCB

(1) Remove the screws.

(2) Remove the CORD HOLDER and connectors. Remove the FFC. Remove the screws.

2. DIGITAL PCB

Shooting direction: A

X1300WE3 only x7

FFC

CN804

CN823

CN741

CN762

CN822CN761

CORD HOLDER x 1

Proceeding : TOP COVER → DIGITAL PCB → RADIATOR ASSY

(1) Remove the screws.

(2) Remove the screws. Remove the connector.

Proceeding : TOP COVER → SMPS PCB

See "EXPLODED VIEW" for instructions on removing the SMPS PCB.

Proceeding : TOP COVER → REGULATOR PCB

See "EXPLODED VIEW" for instructions on removing the REGULATOR PCB.

Proceeding : TOP COVER → TRANS POWER

See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).

3. RADIATOR ASSY

Shooting direction: A

x12

CN502

CN104

4. SMPS PCB

5. REGULATOR PCB

6. TRANS POWER

Caution in

servicing

Electrical Mechanical Repair Information Updating
