Denon avr-s720w Service Manual

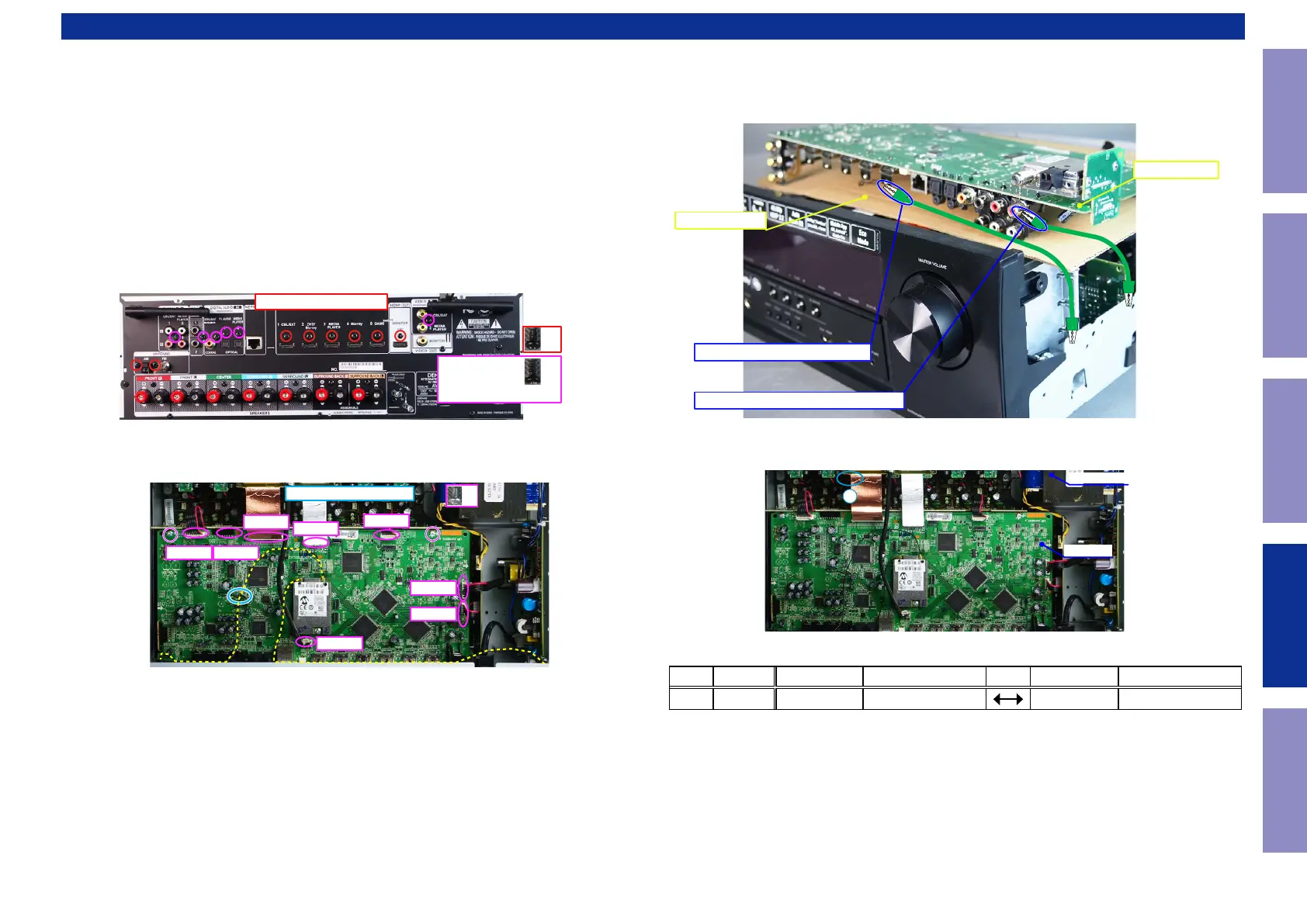

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 1 sheet
Ground lead (Not supplied) : 2 pc
-Proceeding-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x8
x6
X1300WE3 only x7
FFC
FFC
CN804
CN823
CN741
CN762
CN822CN761
x2
CORD HOLDER x 1
(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP
CN822 DIGITAL
PCB DIGITAL
Insulation sheet
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
DIFF-AMP
DIGITAL
1
127
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon avr-s720w Specifications

General

Channels	7.2
HDMI Inputs	6
HDMI Outputs	1
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-Through	Yes
HDR Support	Yes
3D Pass-Through	Yes
HDMI Version	2.0a
HDCP Version	2.2
AirPlay	Yes
Built-in HEOS	No
Phono Input	No
Ethernet Port	Yes
Dimensions (W x H x D)	17.1 x 6.6 x 13.3 inches
Power Output per Channel	75W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
USB Port	Yes
