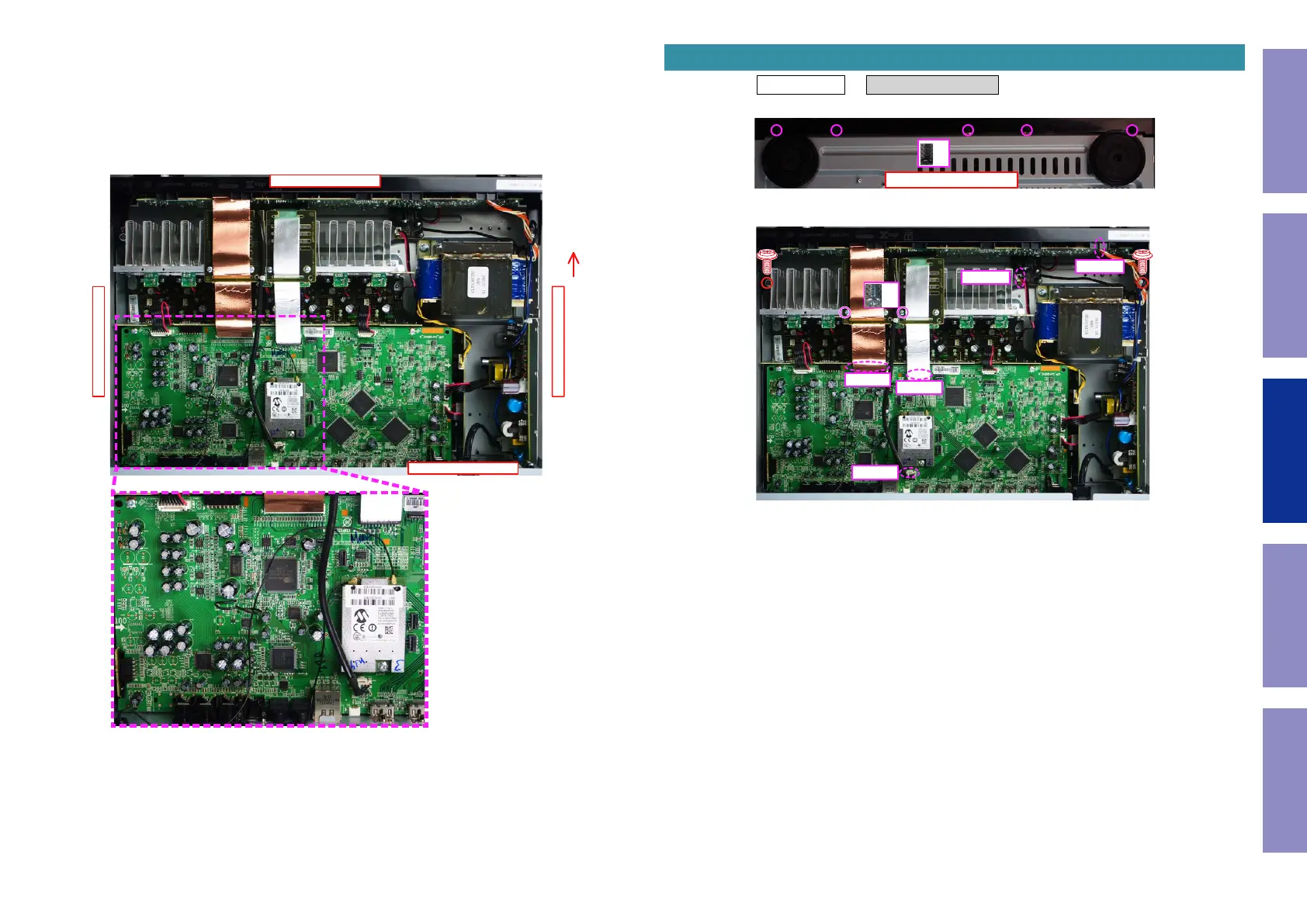

Explanatory Photos for DISASSEMBLY

• For the shooting direction of each photos used in this manual, see the photo below.

• A, B, C and D in the photo below indicate the shooting directions of photos.

• The photographs with no shooting direction indicated were taken from the top of the unit.

• Photos of AVR-S720W E3 are used in this manual.

The viewpoint of each photograph

(Shooting direction : X) [View from the top]

Front side

↑Shooting direction: A↑

↓Shooting direction: B↓

↓Shooting direction: D↓

↑Shooting direction: C↑

Proceeding : TOP COVER → FRONT PANEL ASSY

(1) Remove the screws.

(2) Remove the screws. Remove the CORD HOLDER and connectors. Remove the FFC.

1. FRONT PANEL ASSY

View from the bottom

FFC

CN804

CN102

CN104

Caution in

servicing

Electrical Mechanical Repair Information Updating
