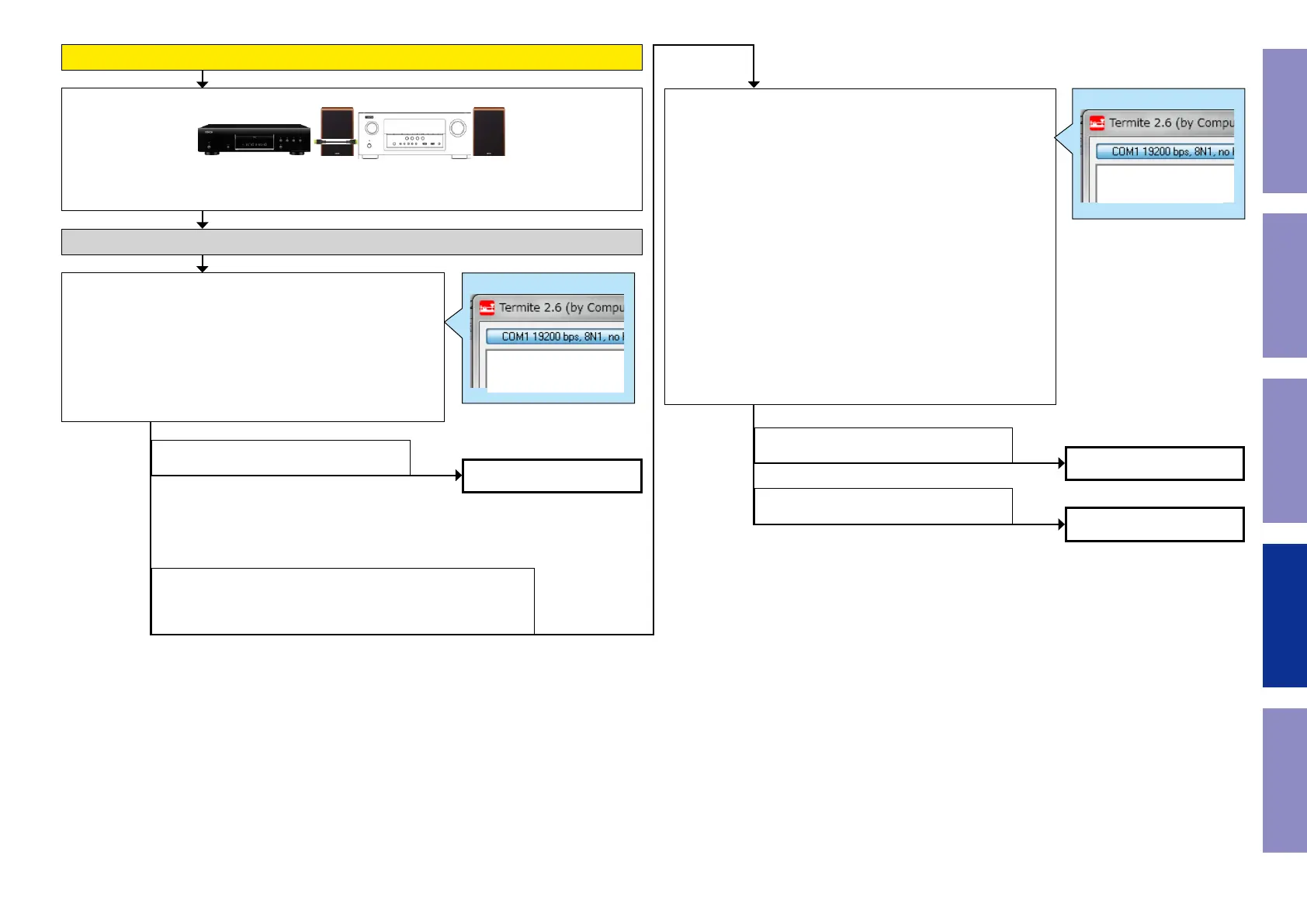

When the results of check item (5) are "the communication results are OK"
Checking operation between the HDMI (Rx/Tx) device and the player
b
In order to check, connect the player to the HDMI terminal and conî™°gure the player as AVR source.
Check the sound output while turning on the player.
Checking the +5V/DDC status register (HDMI Rx/Tx)
Check item(11). Checking the +5V status register :
Send the following command from Termite.exe.
Send the transmission command "i 0006 00FF 0001" from Termite.
exe.
Move to the branch destination according to the value returned.
Example
i 0006 00FF 0001
HDMI in 4/5 "00"
(Detection of 5V is not OK.)
"00 or 04"
(Detection of DDC is not OK.)
"22"
(Detection of DDC is OK)
HDMI In4 "22 or 20" HDMI In5 "11 or 10"
(Detection of 5V is OK)
Go to check item (13)
Go to check item (14)
Go to check item (15)
Check item(12). Checking the +5V/DDC status register :
Send the following command from Termite.exe.
When the HDMI IN4, Send the transmission command "i 0003 0054
0001" from Termite.exe.
When the HDMI IN5, Send the transmission command "i 0003 0024
0001" from Termite.exe.
Move to the branch destination according to the value returned.
Example
i 0003 0054 0001
78
