Denon AVR-X1600H Service Manual

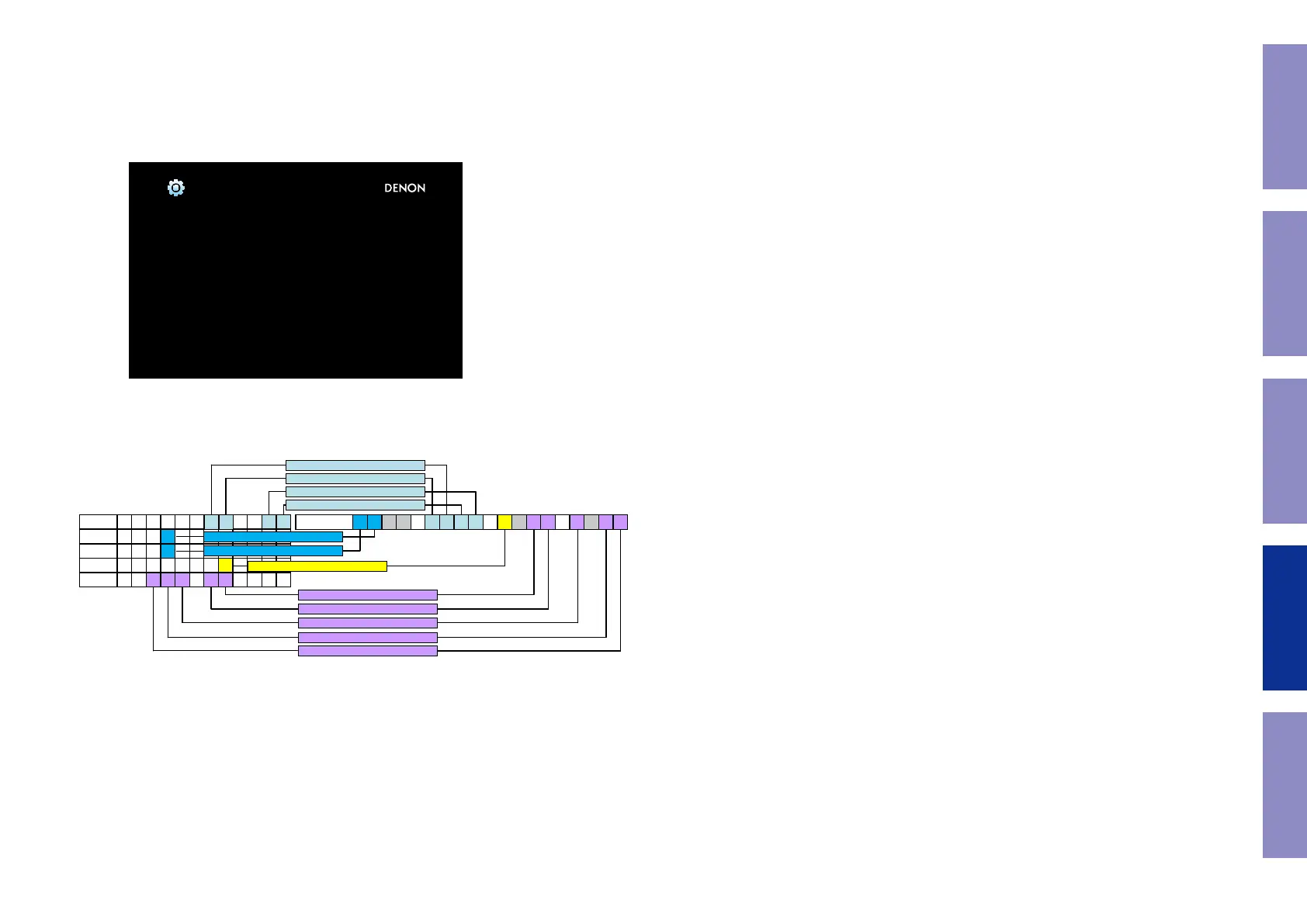

1.5. Version Display in the Setup Menu
Follow the steps below to display the rmware information.
(1) Press the "
SETUP
" button on the remote control.
(2) Select "General - Information - Firmware".
The version information is displayed as a 16-digit number as shown in the screenshot below.
This 16-digit number comprises a part of the version number of each device and module.
Numerics and version numbers correspond as shown below.
b
The rmware version numbers and this 16-digit version information are written in the Service Information.
b
Replace as follows for the 5th to 7th digits of HEOS version.
X.XXX.X → X.XXX.00X
X.XXX.XX → X.XXX.0XX
X.XXX.XXX → X.XXX.XXX
XXXX-XXXX-XXXX-XXXX
X.XX.XX.XX
General/Firmware
Version
GUI Image
-DTS Version
Main
DSP
A.PLD
GUI
HEOS
1 . 3 6 7 . 1 3 X
X X X X X X 1 7
X X X
X X X
X X X X
1 5 3 4X
3
4
XX X 5- 1 4 33
Info display 4 0 0 - 7 0 3 1 - 7 0 6 3
The 1st digit from the right for DSP
The 1st digit from the right for A.PLD
The 3rd digit from the right for HEOS
The 2nd digit from the right for HEOS
The 4th digit from the right for HEOS
The 5th digit from the right for HEOS
The 6th digit from the right for HEOS
The 1st digit from the right for GUI
The 6th digit from the right for Main
The 5th digit from the right for Main
The 2nd digit from the right for Main
The 1st digit from the right for Main
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
120

Denon AVR-X1600H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
AC (power) in	Yes
Composite video in	2
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	440 W
Operating temperature (T-T)	5 - 35 °C
Package weight	10600 g
Certification	CE
Package depth	435 mm
Package width	523 mm
Package height	232 mm

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8600 g
